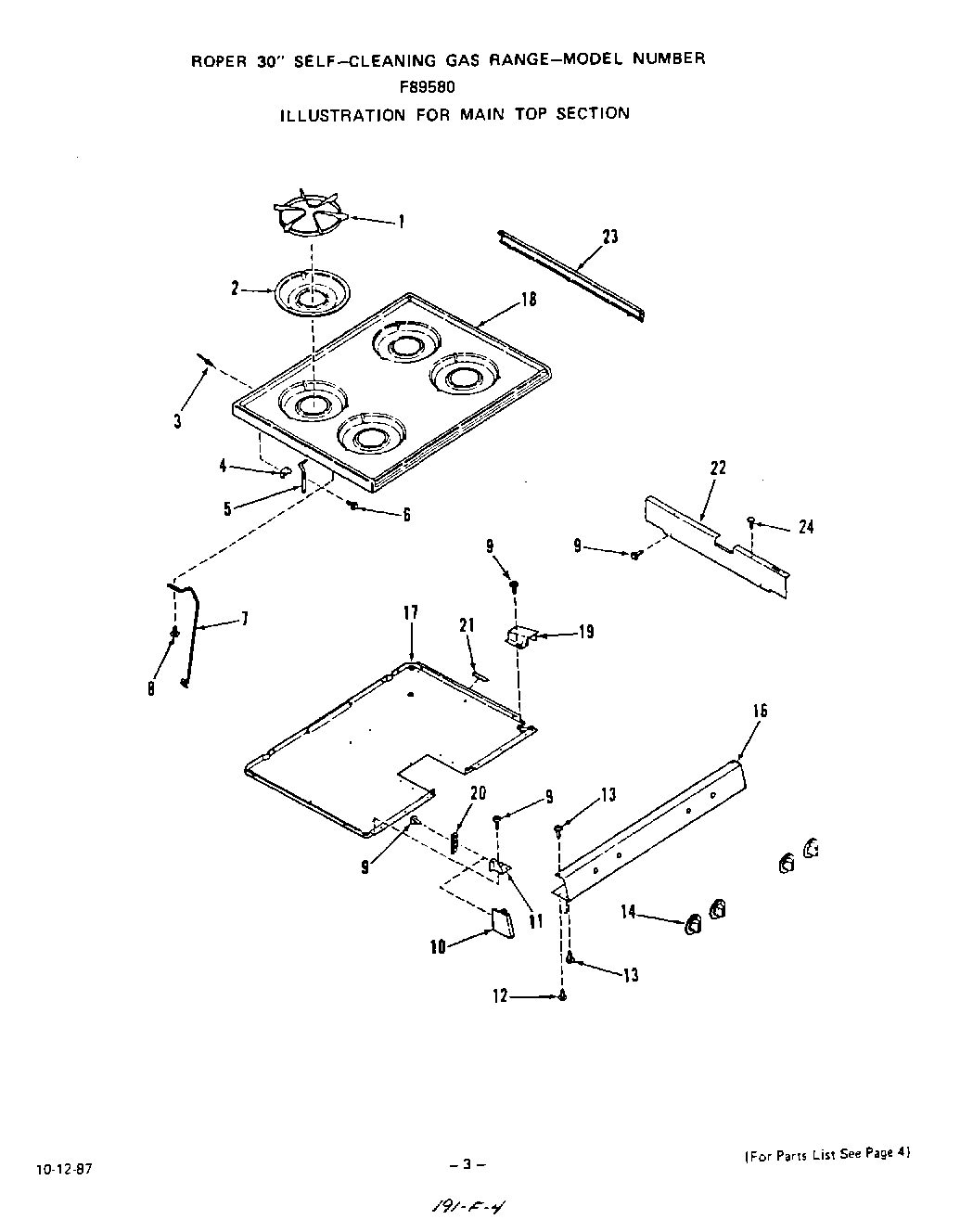

F8958W0 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Req)
2	Aeration Pan (Model F65080)
3	Rivet
4	Hinge Bracket
5	Left
5	Right
6	WPL 321162
7	Support Rod-Main Top (2 Req)
8	Screw
9	Screw 10-16×7/16“
10	Left
10	Right
11	Manifold Panel Bracket (Right)
11	Manifold Panel Bracket (Left)
12	Screw 6-20×3/8“
13	Screw 10ABx1/2“
14	Gas Valve Knob (4 Req)
16	Manifold Panel
17	Burner Box Bottom
18	Main top (White)
18	Main Top (Almond)
19	Wire Cover
20	Body Side Cleat
21	Tubing Spacer
22	Right
22	Left
23	Right
23	Left
24	Screw-10-32×1/2“
