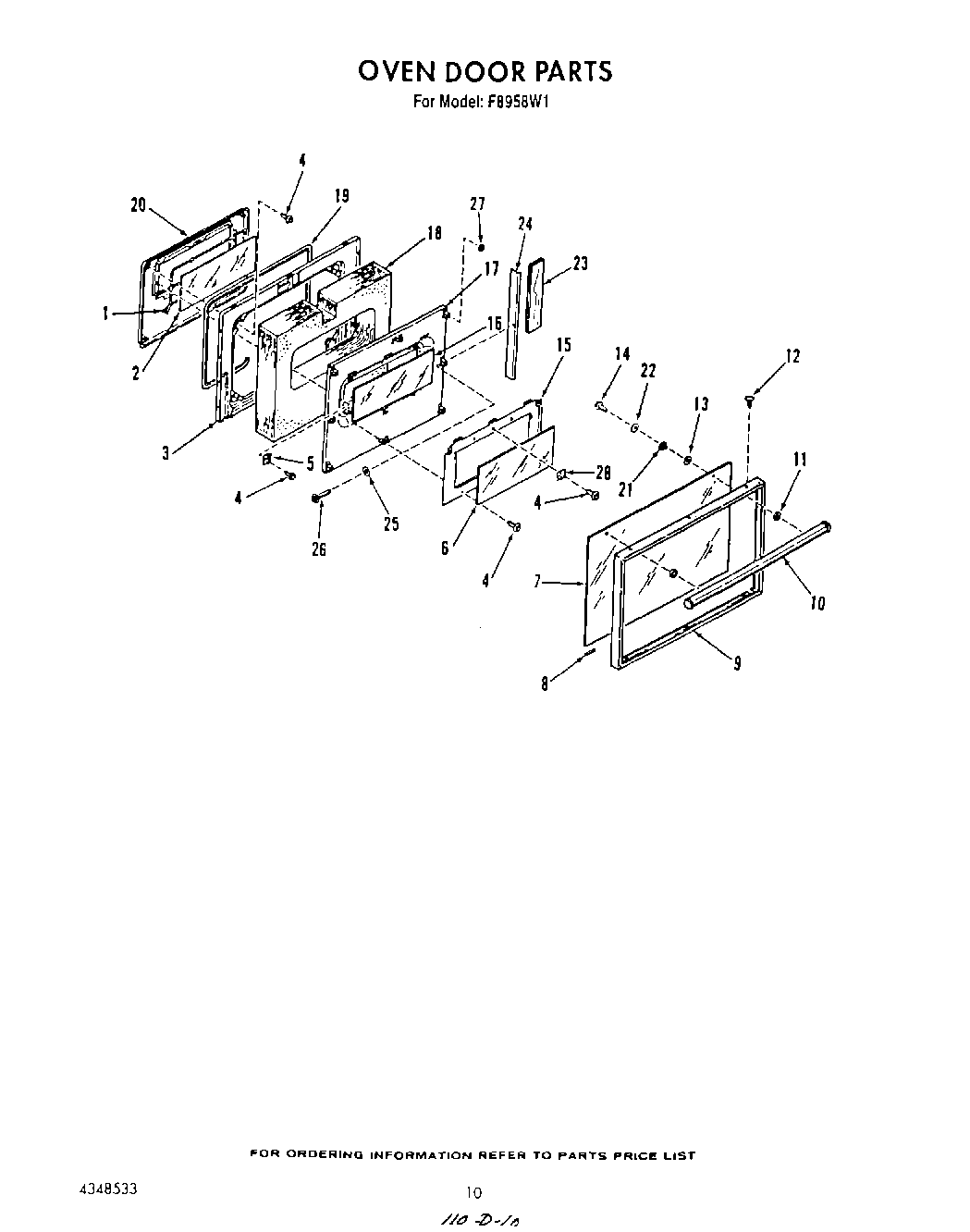

F8958W1 08 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
1	Seal, Inner Glass
2	Glass-Inner
3	Lining
4	SCREW
5	Retainer
6	Glass, Intermediate
7	Glass, Outer
8	Cushion
9	Frame, Door
10	Handle, Door
11	Spacer, Dr. Handle
12	Screw
13	Washer, Fiber
14	WP999367 Whirlpool Refrigerator Screw
15	Mounting Plate
16	Glass, Center
17	Retainer, Insulation
18	Insulation
19	Gasket, Door
20	Plug, Door Lining
21	Spacer, Glass Door
22	Washer
23	Insulation
24	Baffle, Side
25	Washer
26	Screw, No.10 x 1
27	Washer, Felt
28	Owner`s Manual
28	Relay
28	Installation Guide
28	WIRE HARNESS PARTS (Backguard)
28	WP285432 Whirlpool Terminal
28	Retainer, Glass
28	Flag Terminal
28	Wire Harness (3/16``)
28	Repair Parts List
