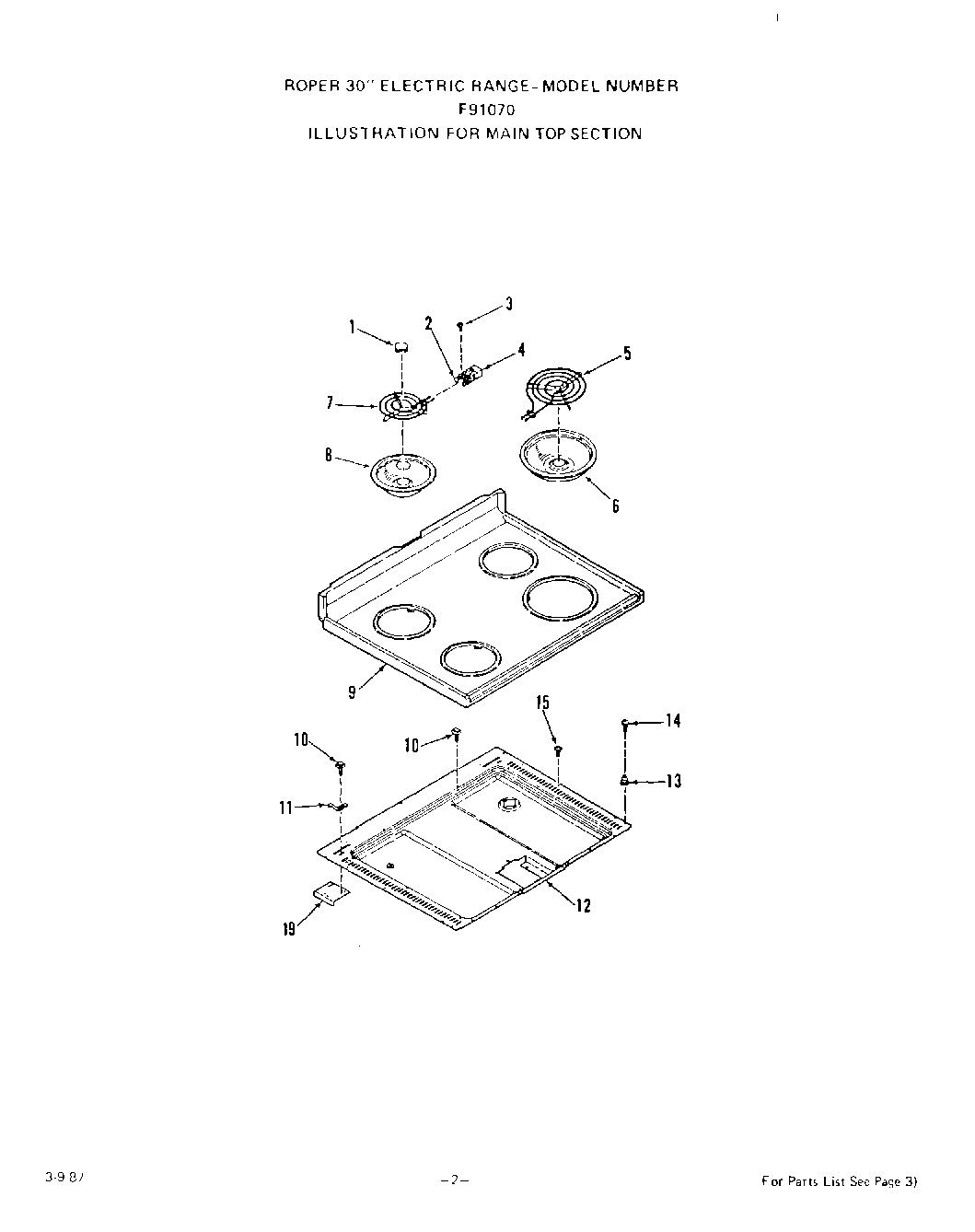

| 1 | Medallion (2 Req) All 2101 Models |
| 2 | Bracket-Term. Block (2 Req) All 2101 Mod. |
| 3 | Screw 7-32x5/16``(2 Req) All 2101 Models |
| 4 | Term. Block w/Leads-All 2101 Models |
| 5 | 8`` Surface Unit (Rt. Front & Lt. Rear) |
| 6 | 8`` Burner Bowl |
| 7 | 6`` Surface Unit (Lt. Front & Rt. Rear) |
| 8 | Burner Bowl 8`` |
| 9 | White |
| 9 | Main Top (Almond) |
| 10 | Screw 10-16x7/16`` |
| 11 | Left |
| 11 | Right |
| 12 | Burner Box Bottom |
| 13 | Strike |
| 14 | Screw 6-32x7/8`` |
| 15 | Screw |
| 19 | Reinforcement Plate (2 Req) |
