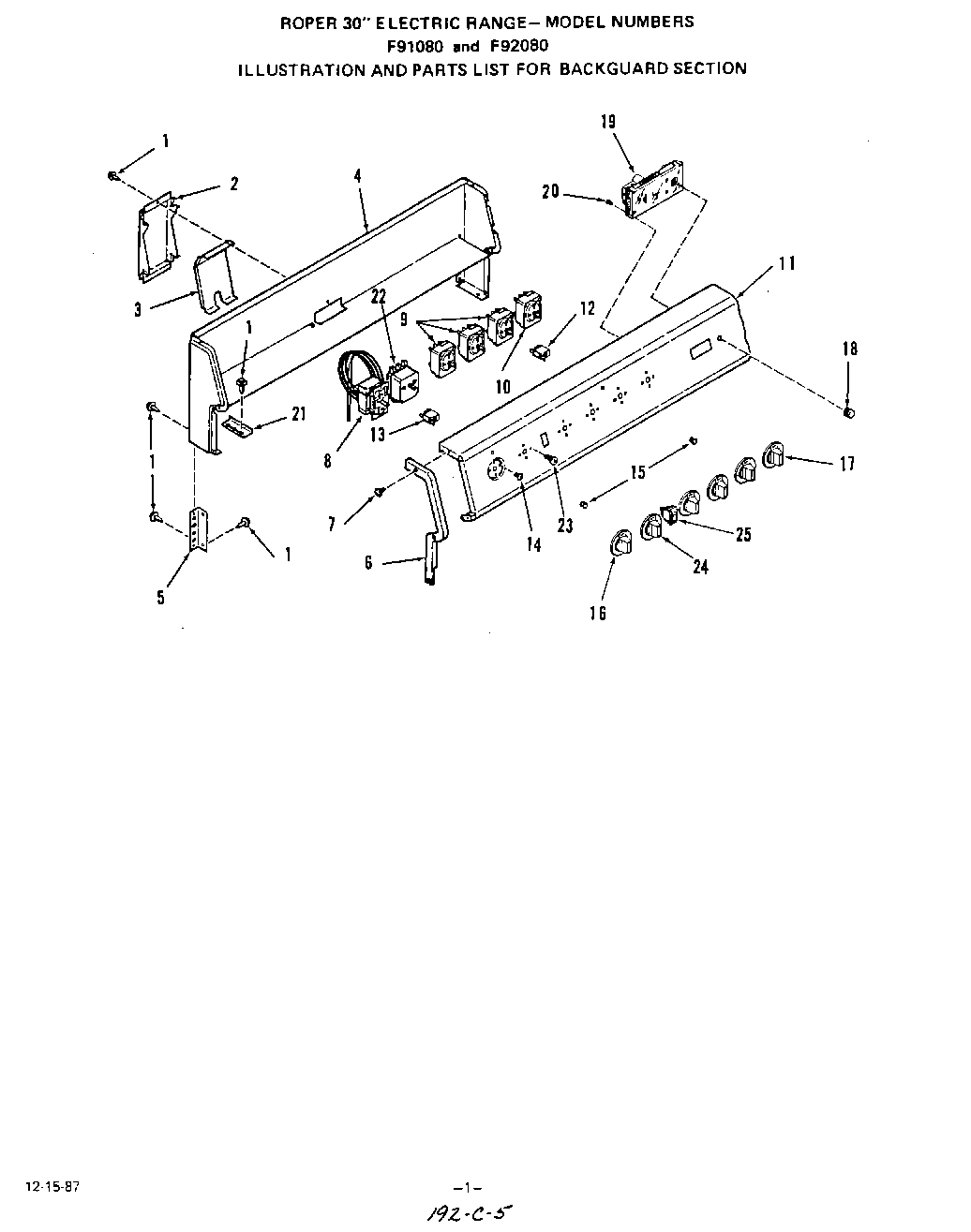

F9108L0 02 – BACKGUARD , LIT/OPTIONAL

Products

Position	Product
	Clock Lens
1	Screw 10-16x7/16``
2	Wire Raceway
3	Raceway Cover
4	Backguard Body
5	Right
6	End Cap (Left)
6	End Cap (Right)
7	Screw 6-20x3/8``
8	Thermostat
9	Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
10	Infinite Switch (Rt. Front)
11	Control Panel (Almond (Model F9208L0))
11	Control Panel (White (Model F9108W0))
11	Control Panel (Almond (Model F9108L0))
11	Control Panel (White (Model F9208W0))
12	Light-Indicator
13	Light-Indicator (Surface)
14	Screw 8-32x3/16``
15	Lens-Indicator Light
16	Thermostat Knob
17	Infinite Knob
18	Clock Knob
19	Clock w/Lens
20	Screw 6-32x5/16``
21	Body Side Cleat
22	Timer
23	Screw 4-24x1/4``
24	Timer Knob
25	Switch-Oven Light
