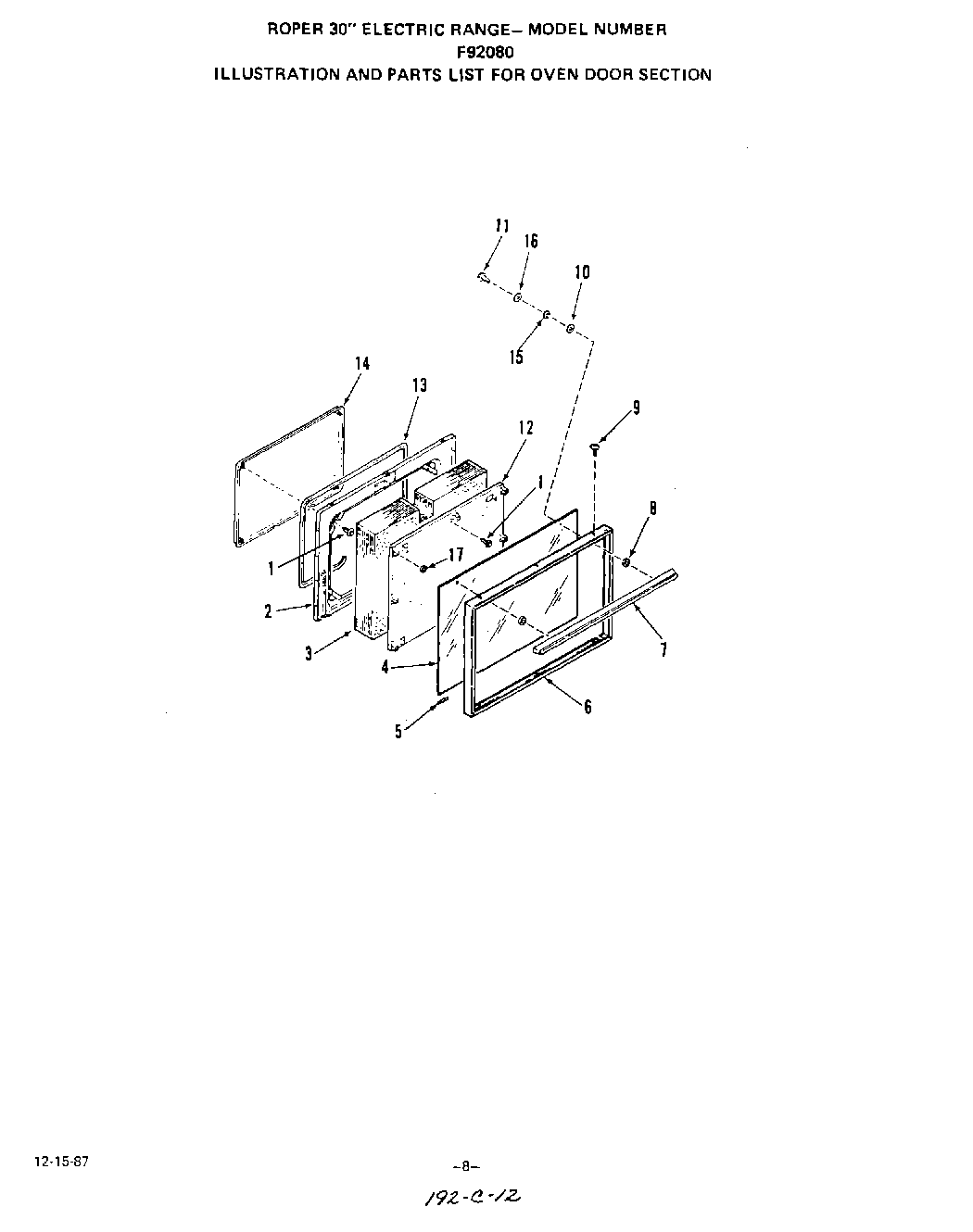

F9108L0 07 – F92080

F9108L0 07 – F92080

Written by

in

F9108L0 07 – F92080

Products

PositionProduct
1Screw 10-16×7/16“
2Lining-Oven Door
3Insulation
4Outer Glass-Oven Door
5Cushion-Door Glass
6Frame
7Handle
8Spacer
9Screw
10Washer
11Screw 10-32×3/4“
12Retainer-Insulation
13Gasket-Oven Door
14Plug
15Spacer-Glass
16Washer
