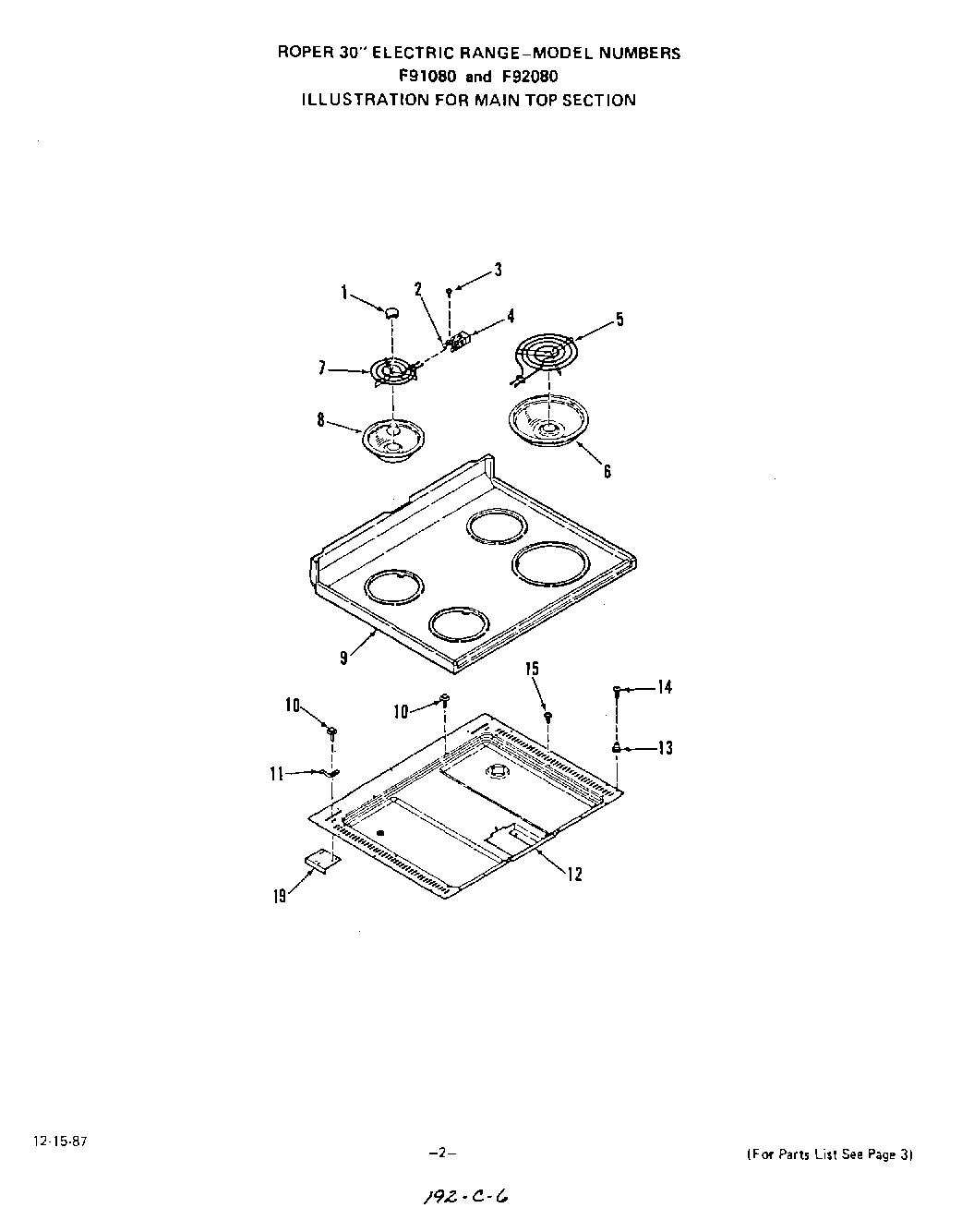

F9108W0 03 – MAIN TOP

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Term. Block w/Leads-All 2101 Models
5	8“ Surface Unit (Rt. Front & Lt. Rear)
6	8“ Burner Bowl
7	6“ Surface Unit (Lt. Front & Rt. Rear)
8	Burner Bowl 8“
9	White
9	Almond
10	Screw 10-16×7/16“
11	Left
11	Right
12	Burner Box Bottom
13	Strike
14	Screw 6-32×7/8“
15	Screw 10-16×1/2“
19	Reinforcement Plate (2 Req)
