F9157^1 02 – COOKTOP

F9157^1 02 – COOKTOP

Written by

in

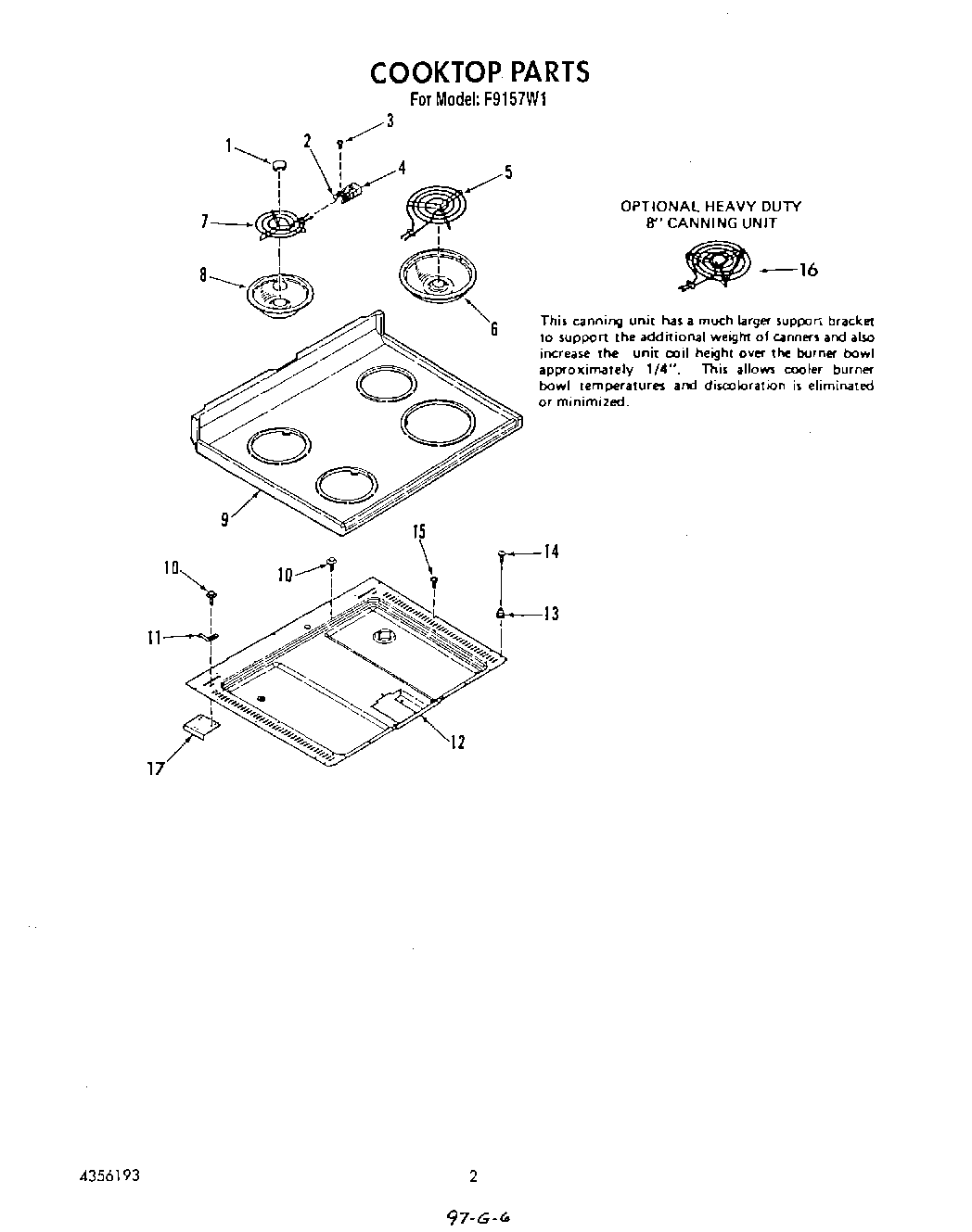

F9157^1 02 – COOKTOP

Products

PositionProduct
1Medallion (2)
2Clip, Term. Blk. (4 Req)
3Screw, No.7-32 x 5/16
4BURNER RECEPTACLE KIT
5WP660533 Whirlpool Oven 8" Surface Element
6DRIP BOWL 8" W/HOLE CHROME
7WPY04100165 Whirlpool Surface Element
8WPW10196406 Whirlpool 6" Chrome Drip Bowl
9Cooktop (Almond)
9Cooktop (White)
10SCREW
11Hinge-Main
11Hinge-Main Cooktop (Right)
11Hinge-Main Cooktop (Left)
12Bottom, Burner Box
13Strike
14Screw No.6-32×7/8
15Screw No.10-32×1/2
16208 Volt (Opt)
16240 Volt
17Baffle, Burner Box
