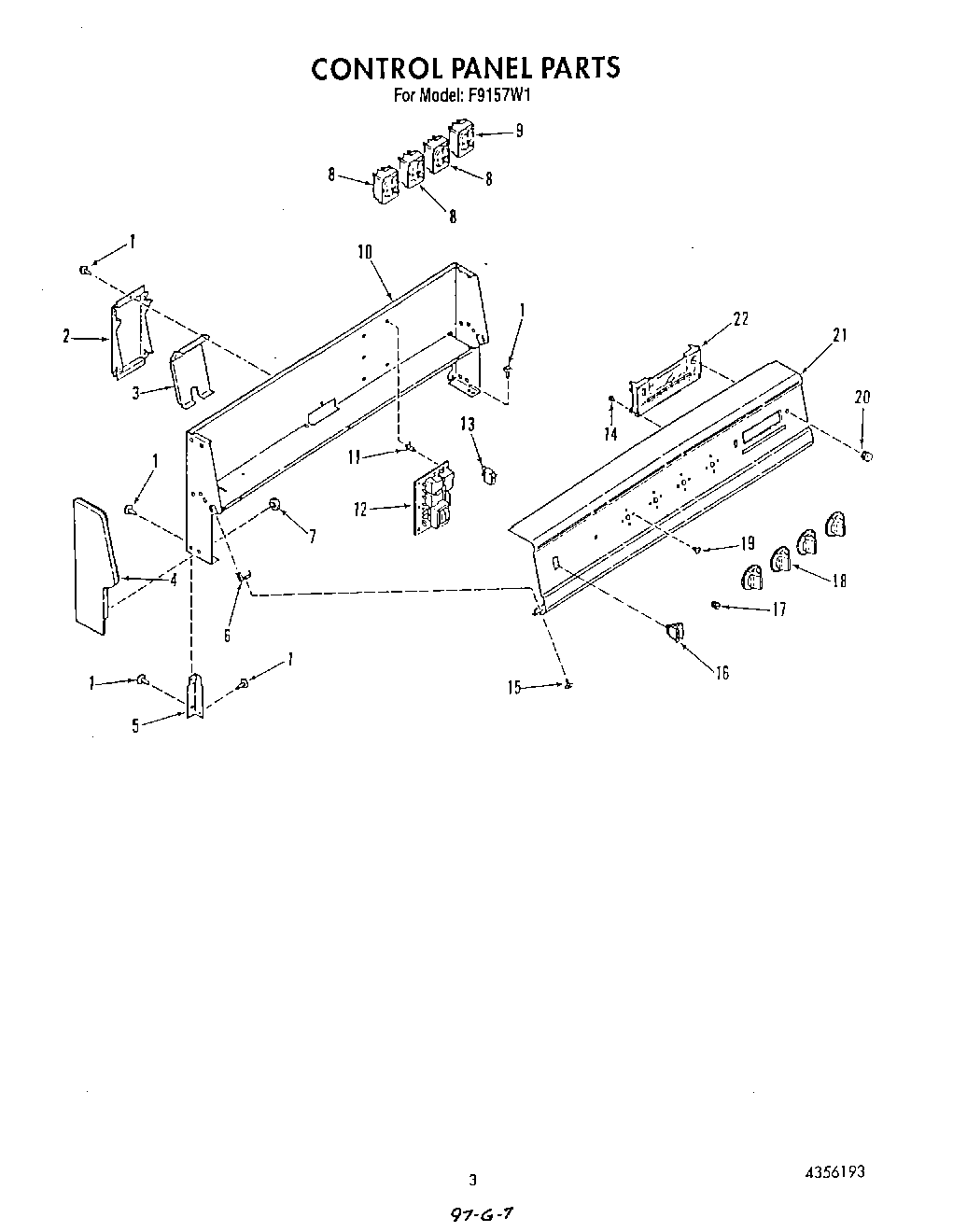

F9157^1 03 – CONTROL PANEL , LIT/OPTIONAL

F9157^1 03 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

F9157^1 03 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
1SCREW
2Raceway, Wire
3Cover, Raceway
4End Cap (Right)
4End Cap (Left)
5Support, Backguard (Right)
5Support, Backguard (Left)
6Clip, Backguard
7WP308499 Whirlpool Nut
8W10900107 Whirlpool Oven Surface Element Switch
10Frame, Backguard
11Spacer
12Relay Circuit Board
13Indicator Light, (Surface Unit)
14Screw
15Screw No.10-32×1/2
16WP4314961 Whirlpool Lite Switch
17WP9750343 Whirlpool Light Lens
18Knob, Infinite
19Screw
20Knob, Clock
21Control Panel
22Control, Clock/Oven
