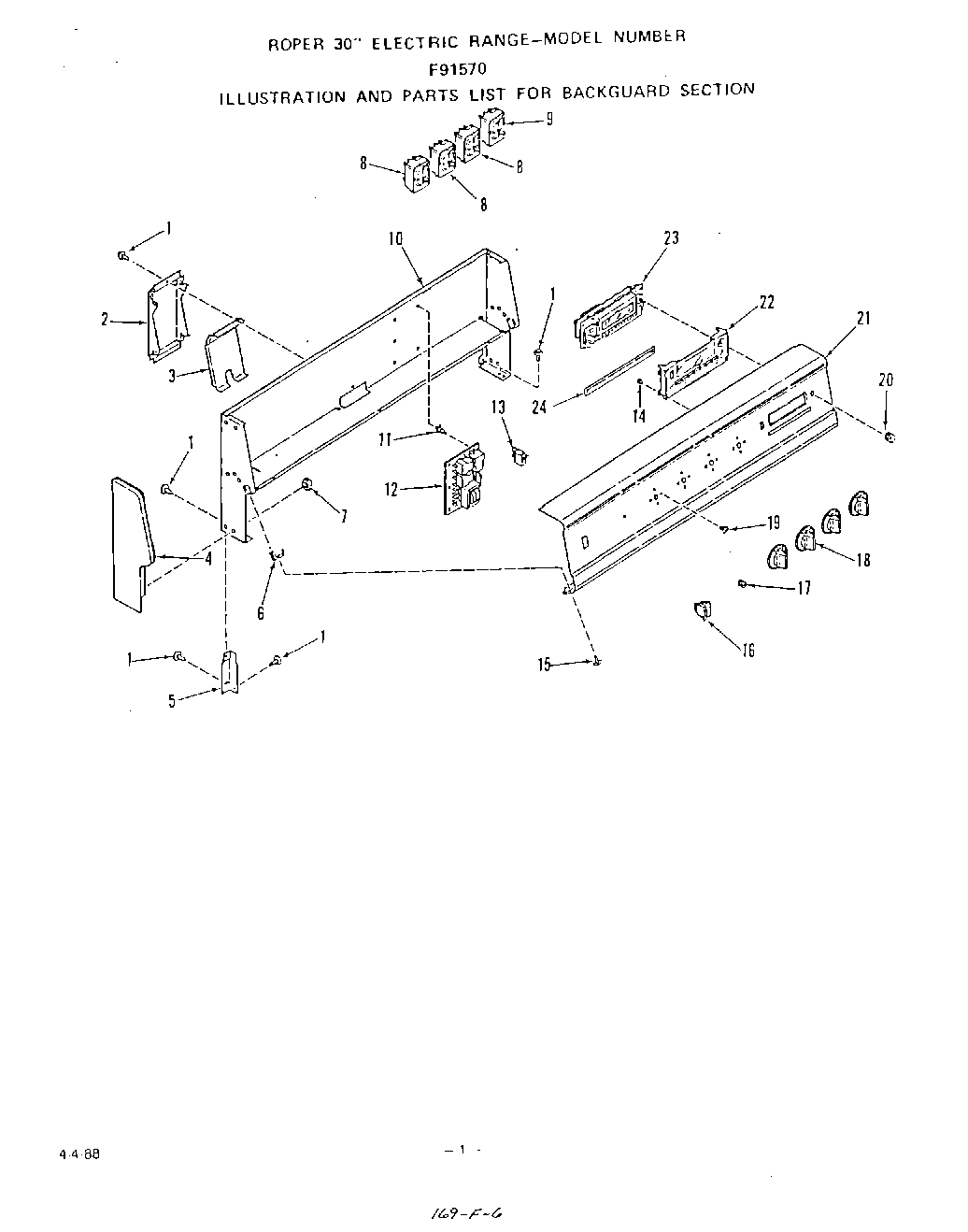

F9157W0 02 – BACKGUARD

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Raceway
3	Raceway Cover
4	End Cap (Left)
4	End Cap (Right)
5	Left
5	Right
6	Backguard Clip
7	Pal Nut
8	Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
9	Infinite Switch (Rt. Front)
10	Backguard Body
11	Spacer
12	Spring, Counterweight
13	Light-Indicator
14	Screw 6-32×5/16“
15	Screw-10-32×1/2“
16	Switch-Oven Light
17	Lens-Indicator Light
18	Infinite Knob
19	WPL 78565
20	Clock Knob
21	Control Panel
22	Clock Lens Asm
23	Clock
24	Clock Support
