F9157W0 04 – BODY
Written by
in

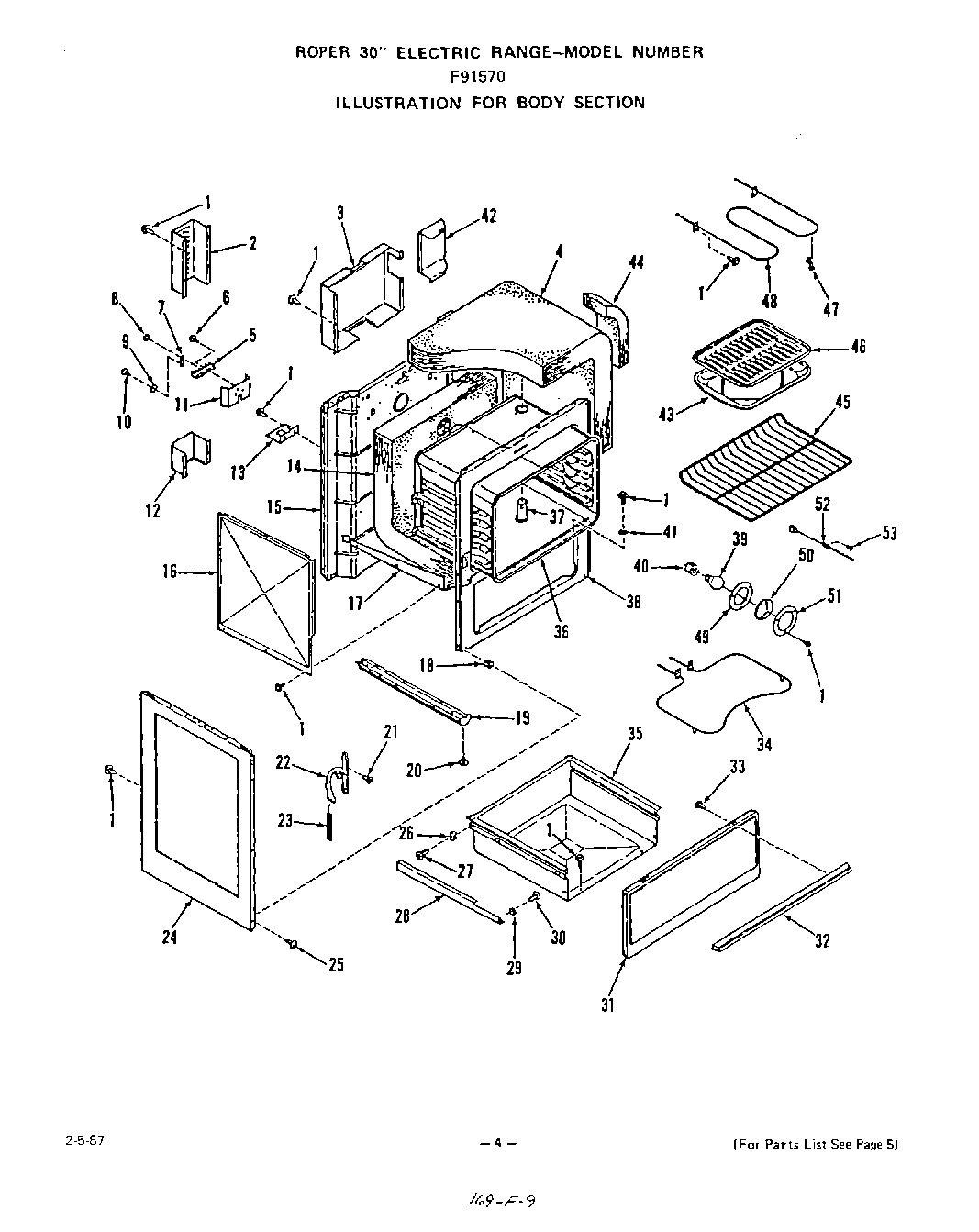

F9157W0 04 – BODY
Products
Position
Product
1
Screw 10-16×7/16“
2
Shield-Upper Wire
3
Wire Shield
4
Insulation-Oven Wrap
5
Junction Block
6
Screw 10-32×1“
7
Ground Strap
8
WP342847 Whirlpool Drum Baffle
9
Washer
10
Screw 10-32×7/16“
11
Insulation-Service Cord
12
Wire Shield-Lower
13
Range Service Mounting Plate
14
Insulation-Oven Back & Bottom
15
Main Back
16
Insulation Retainer (Left)
17
window, oven door
18
BURNER RECEPTACLE KIT
19
Base w/Levelers-Lt. or Rt.
20
Leg Leveler (4 Req)
21
Screw
22
Hinge-Main Top (Left)
22
Hinge-Main Top (Right)
23
Spring-Oven Door (Lt. or Rt.)
24
Almond
24
White
25
Screw 8ABx5/8“
26
Rear Slide Block – Lt. or Rt.
27
Screw 8 – 32 x 3/8“
28
Support-Storage Drawer (Lt. or Rt.)
29
Front Slide Block-(Lt. or Rt.)
30
Screw 10-32×17/32“
31
Front Panel-Storage (Almond)
31
Front Panel-Storage (White)
32
Handle
33
Screw-10-32×1/2“
34
Bake Element (208 Volt (Optional))
34
240 Volt
35
Storage Drawer
36
Oven Body
37
Vent Tube
38
Front Frame
39
Oven Lamp
40
Holder-Oven Light Bulb
41
Washer
42
Wire Shield
43
WPL 331592
44
Insulation (Rt. or Lt.)
45
Oven Rack (2 Req)
46
WPL 326297
47
Support-Broiler Element
48
WPL 334368
48
WPL 334369
49
Gasket-Lens
50
Lens-Oven Light
51
Retainer-Oven Light Lens
52
Sensor
53
Screw 6Ax3/8“
←
