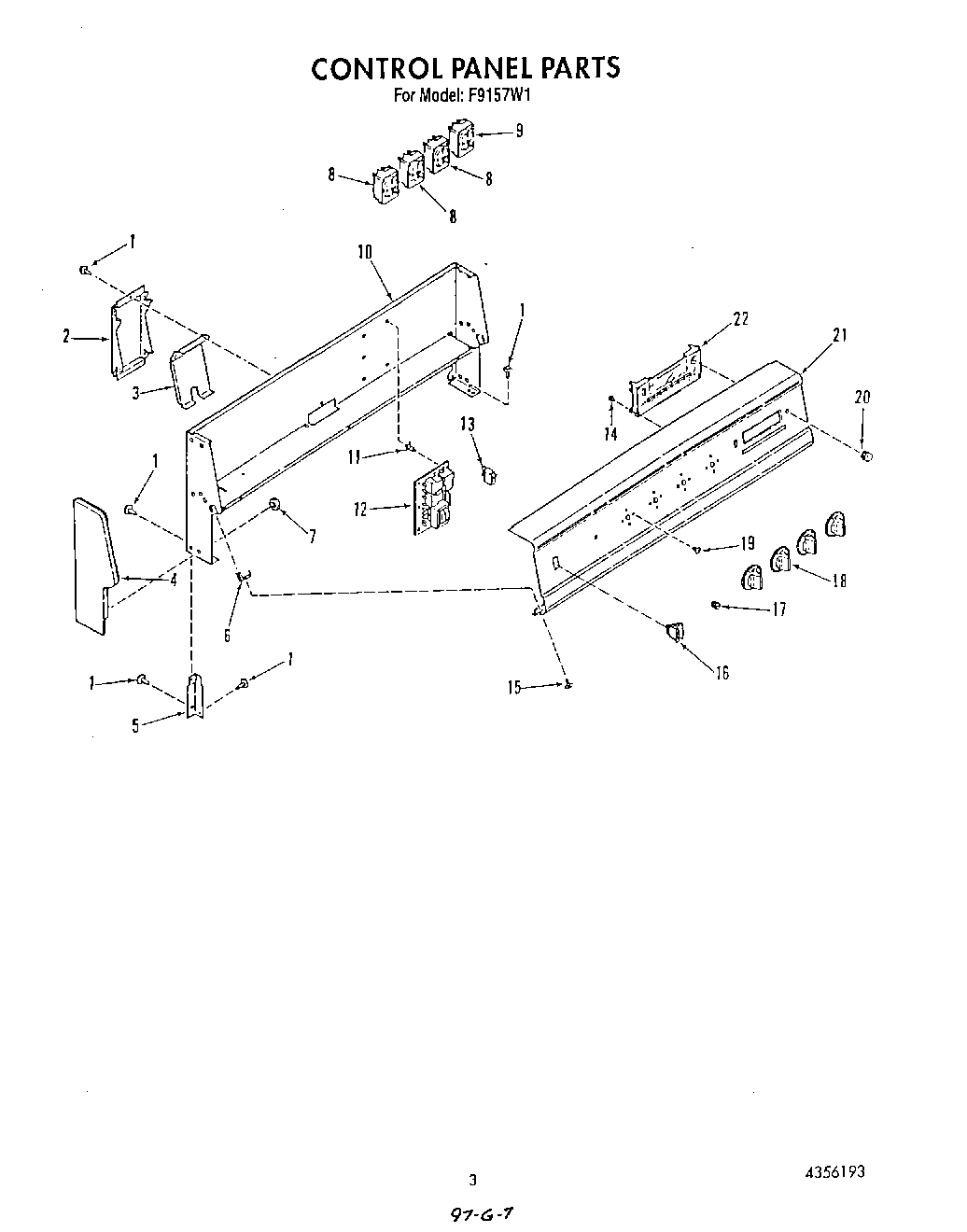

F9157W1 03 – CONTROL PANEL , LIT/OPTIONALadmin2025-04-26T11:54:31+00:00F9157W1 03 – CONTROL PANEL , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | Raceway, Wire |
| 3 | Cover, Raceway |
| 4 | End Cap (Right) |
| 4 | End Cap (Left) |
| 5 | Support, Backguard (Right) |
| 5 | Support, Backguard (Left) |
| 6 | Clip, Backguard |
| 7 | WP308499 Whirlpool Nut |
| 8 | W10900107 Whirlpool Oven Surface Element Switch |
| 10 | Frame, Backguard |
| 11 | Spacer |
| 12 | Relay Circuit Board |
| 13 | Indicator Light, (Surface Unit) |
| 14 | Screw |
| 15 | Screw No.10-32x1/2 |
| 16 | WP4314961 Whirlpool Lite Switch |
| 17 | WP9750343 Whirlpool Light Lens |
| 18 | Knob, Infinite |
| 19 | Screw |
| 20 | Knob, Clock |
| 21 | Control Panel |
| 22 | Control, Clock/Oven |
