F9157W1 06 – DOOR LOCK – Aparts

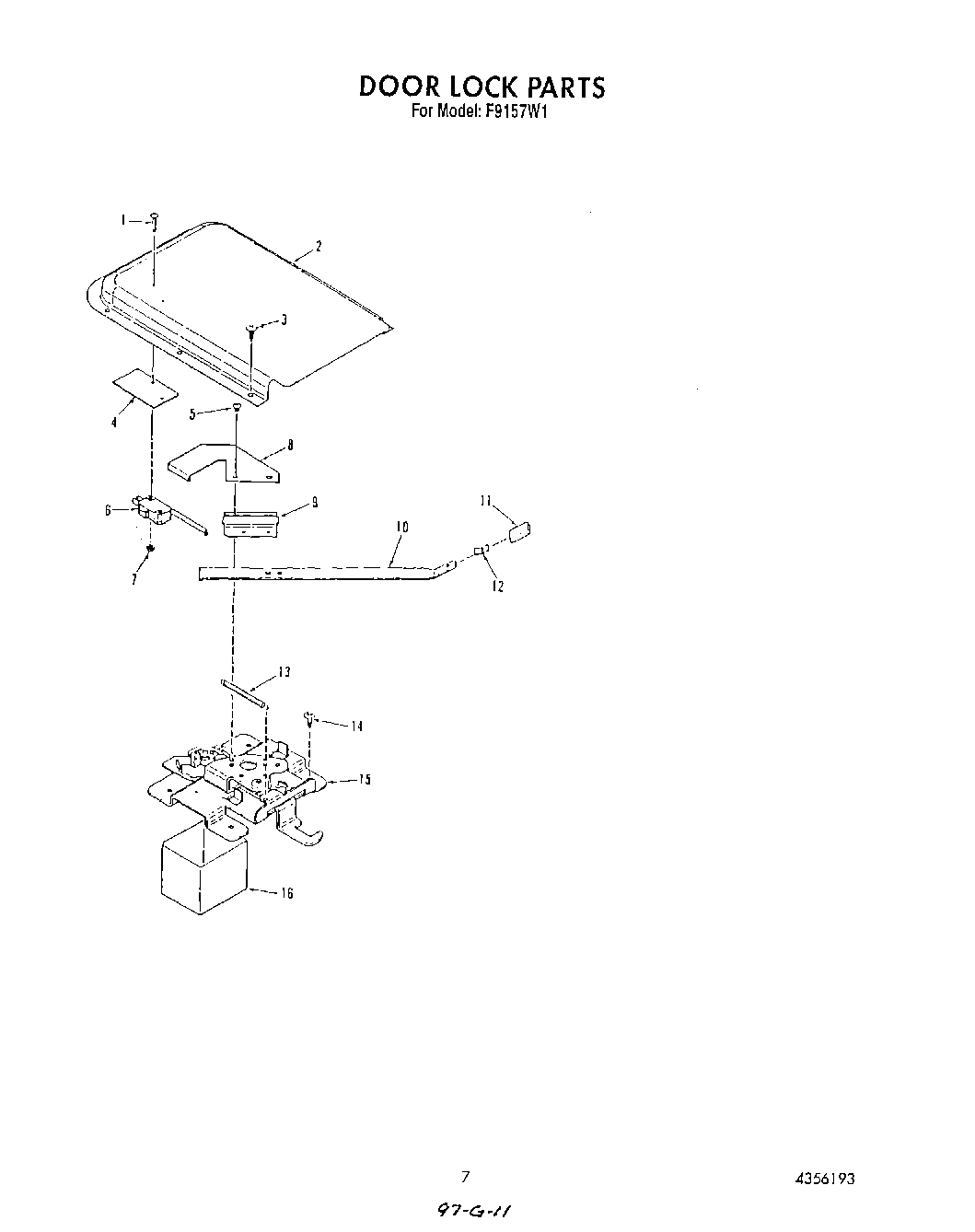

F9157W1 06 – DOOR LOCK

Products

Position	Product
1	Screw, No.4-40 x 11/16
2	Cover, Lock
3	Screw
4	Insulator
5	WPL 4323636
6	Switch, Door Lock
7	Hex Nut, No.4-40
8	Lever, Switch
9	Retainer, Handle
10	Handle, Latch
11	Knob, Lock
12	Clip
13	Spring
14	SCREW
15	Latch Assembly
16	Retainer, Insulation
