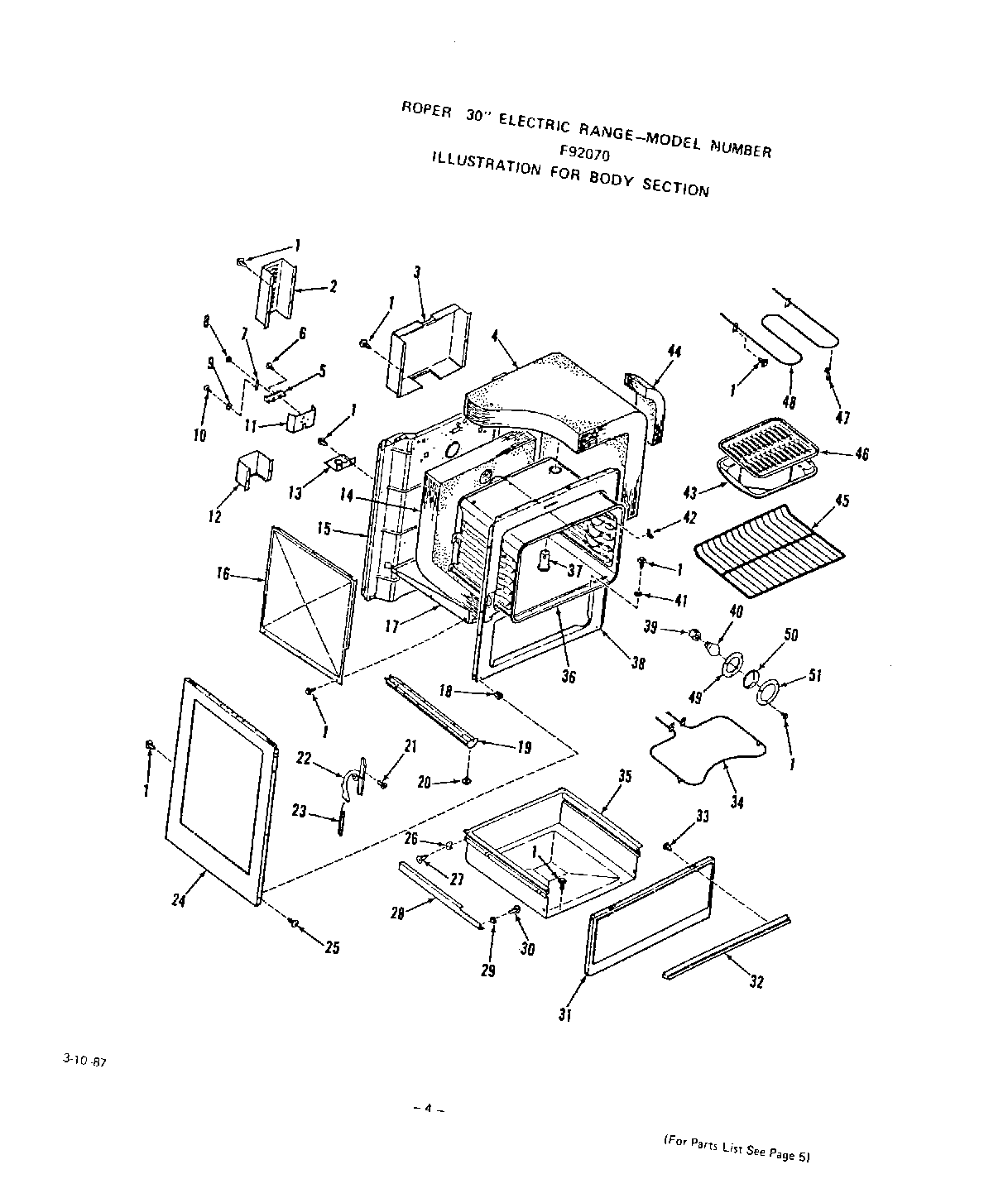

F9207W0 04 – POWER LOCK

Products

Position	Product
1	Screw 10-16×7/16“
2	Shield-Upper Wire
3	WPL 333956
4	Insulation-Oven Top & Sides (1 Piece)
5	Junction Block
6	Screw 10-32×1“
7	Ground Strap
8	Hex Nut 10-32
9	Washer
10	Screw 10-32×7/16“
11	Insulation-Service Cord
12	Wire Shield-Lower
13	Range Service Mounting Plate
14	Insulation-Oven Back & Bottom (1 Piece)
15	Main Back
16	WPL 328984
17	window, oven door
18	BURNER RECEPTACLE KIT
19	Base w/Levelers-Lt. or Rt.
20	Leg Leveler (4 Req)
21	Screw
22	Hinge-Oven Door
22	Right
22	Left
23	Spring-Oven Door (Lt. or Rt.)
24	Black
24	Almond
24	White
24	Body Side (Lt. or Rt.)
25	Screw 8ABx5/8“
26	Rear Slide Block – Lt. or Rt.
27	Screw 8 – 32 x 3/8“
28	Support-Storage Drawer (Lt. or Rt.)
29	Front Slide Block-(Lt. or Rt.)
30	Screw 10-32×17/32“
31	Front Panel-Storage (Almond)
31	Front Panel-Storage (White)
31	Front Panel-Storage
31	Chrome
32	Handle
33	WPL 295850
34	240 Volt
34	208 Volt
34	Bake Element
35	Storage Drawer
36	Oven Body
37	Vent Tube
38	Seal-Oven Door
39	Holder-Oven Light Bulb
40	Oven Lamp Bulb
41	WPL 21067
42	Clip-Thermotat Bulb (2 Req)
43	WPL 331592
44	Insulation (Rt. or Lt.)
45	WPL 326068
46	WPL 326297
47	Support-Broil Element
48	WPL 334368
48	WPL 334369
48	Broil Element
49	Gasket-Lens
50	Lens-Oven Light
51	Retainer
