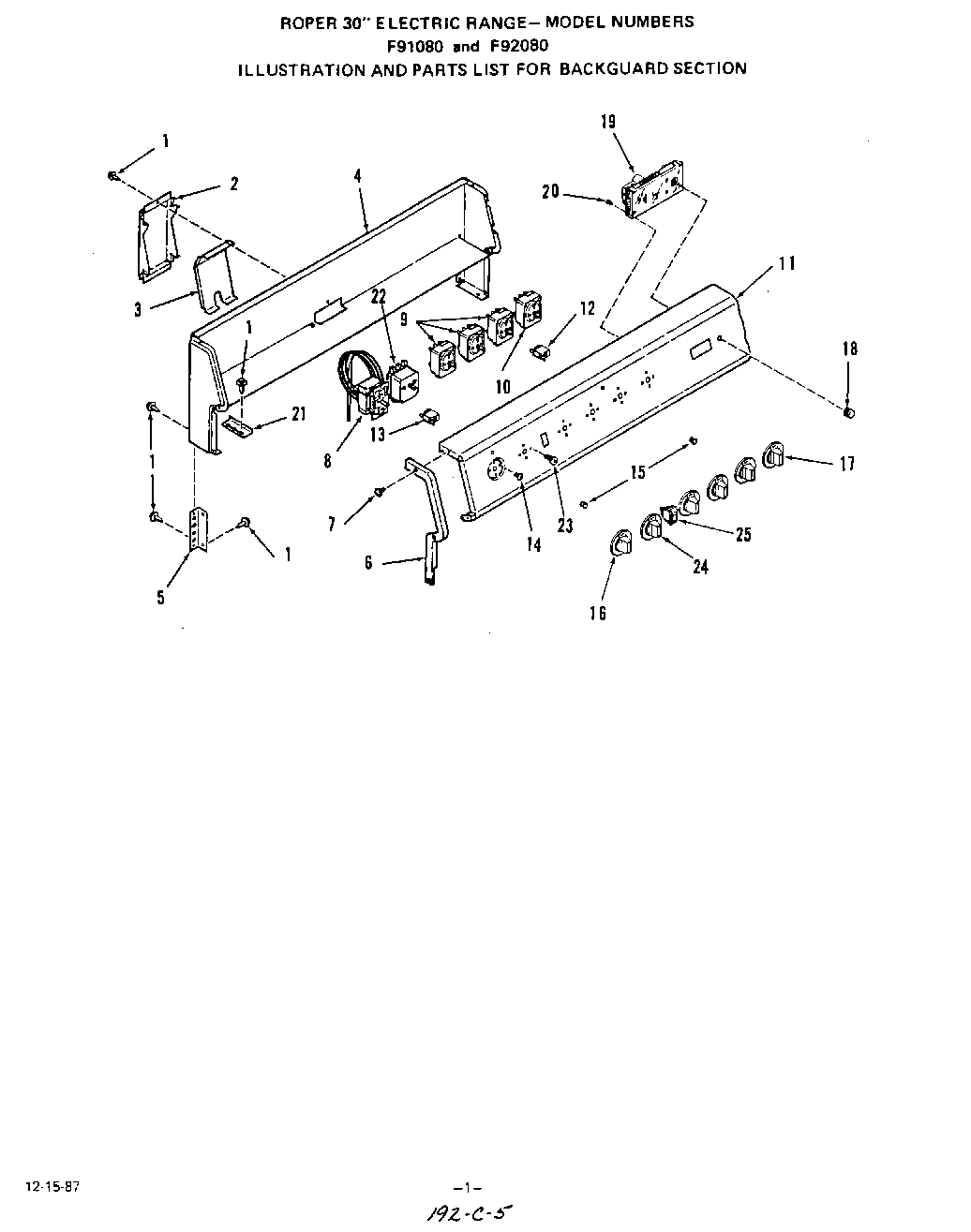

F9208L0 02 – BACKGUARD , LIT/OPTIONAL

Products

PositionProduct
Clock Lens
1Screw 10-16×7/16“
2Wire Raceway
3Raceway Cover
4Backguard Body
5Right
6End Cap (Left)
6End Cap (Right)
7Screw 6-20×3/8“
8Thermostat
9Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
10Infinite Switch (Rt. Front)
11Control Panel (Almond (Model F9208L0))
11Control Panel (White (Model F9108W0))
11Control Panel (Almond (Model F9108L0))
11Control Panel (White (Model F9208W0))
12Light-Indicator
13Light-Indicator (Surface)
14Screw 8-32×3/16“
15Lens-Indicator Light
16Thermostat Knob
17Infinite Knob
18Clock Knob
19Clock w/Lens
20Screw 6-32×5/16“
21Body Side Cleat
22Timer
23Screw 4-24×1/4“
24Timer Knob
25Switch-Oven Light
