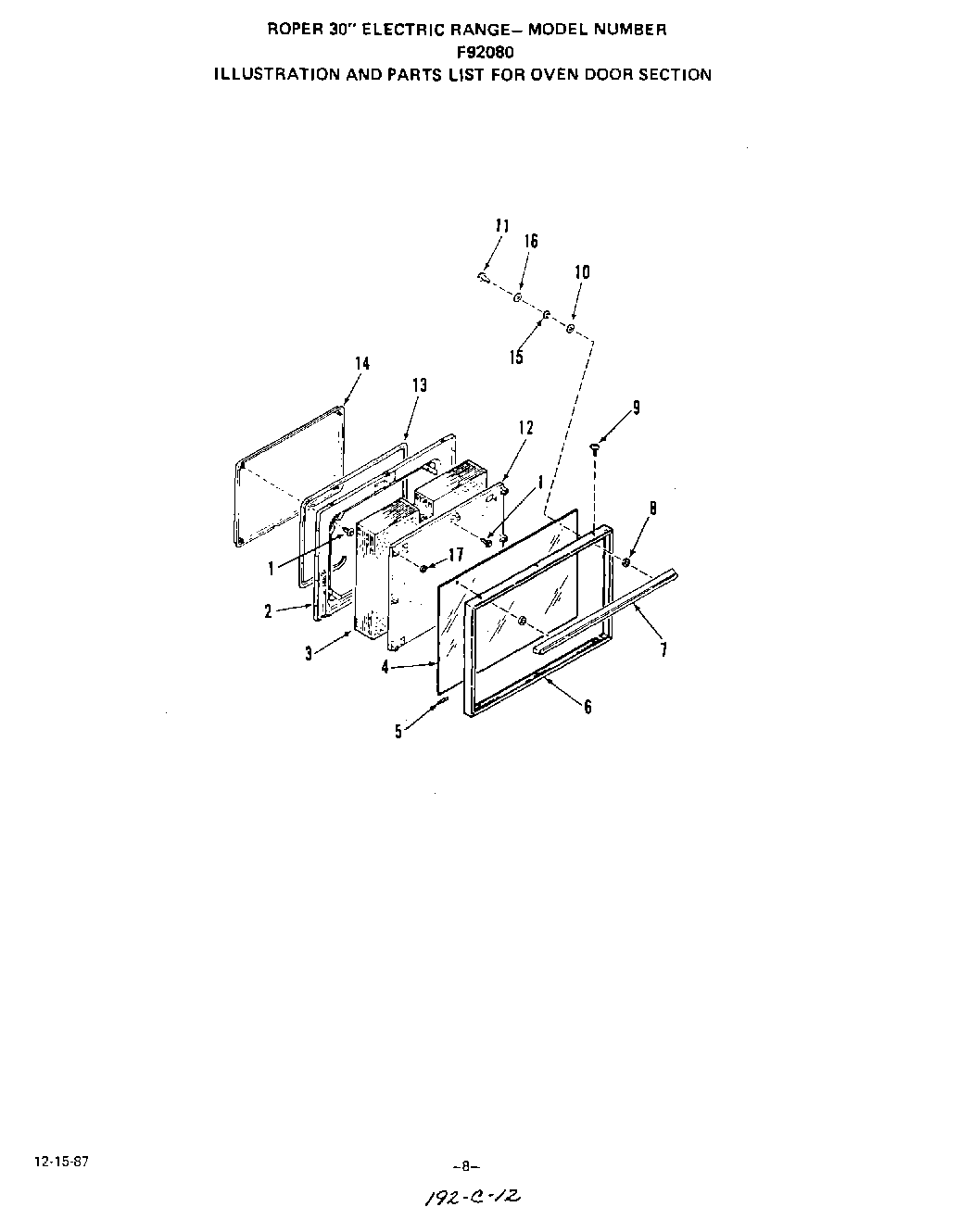

F9208L0 07 – F92080 – Aparts

F9208L0 07 – F92080

Products

Position	Product
1	Screw 10-16x7/16``
2	Lining-Oven Door
3	Insulation
4	Outer Glass-Oven Door
5	Cushion-Door Glass
6	Frame
7	Handle
8	Spacer
9	Screw
10	Washer
11	Screw 10-32x3/4``
12	Retainer-Insulation
13	Gasket-Oven Door
14	Plug
15	Spacer-Glass
16	Washer
