F9257^1 02 – CONTROL PANEL, LIT/OPTIONAL

F9257^1 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

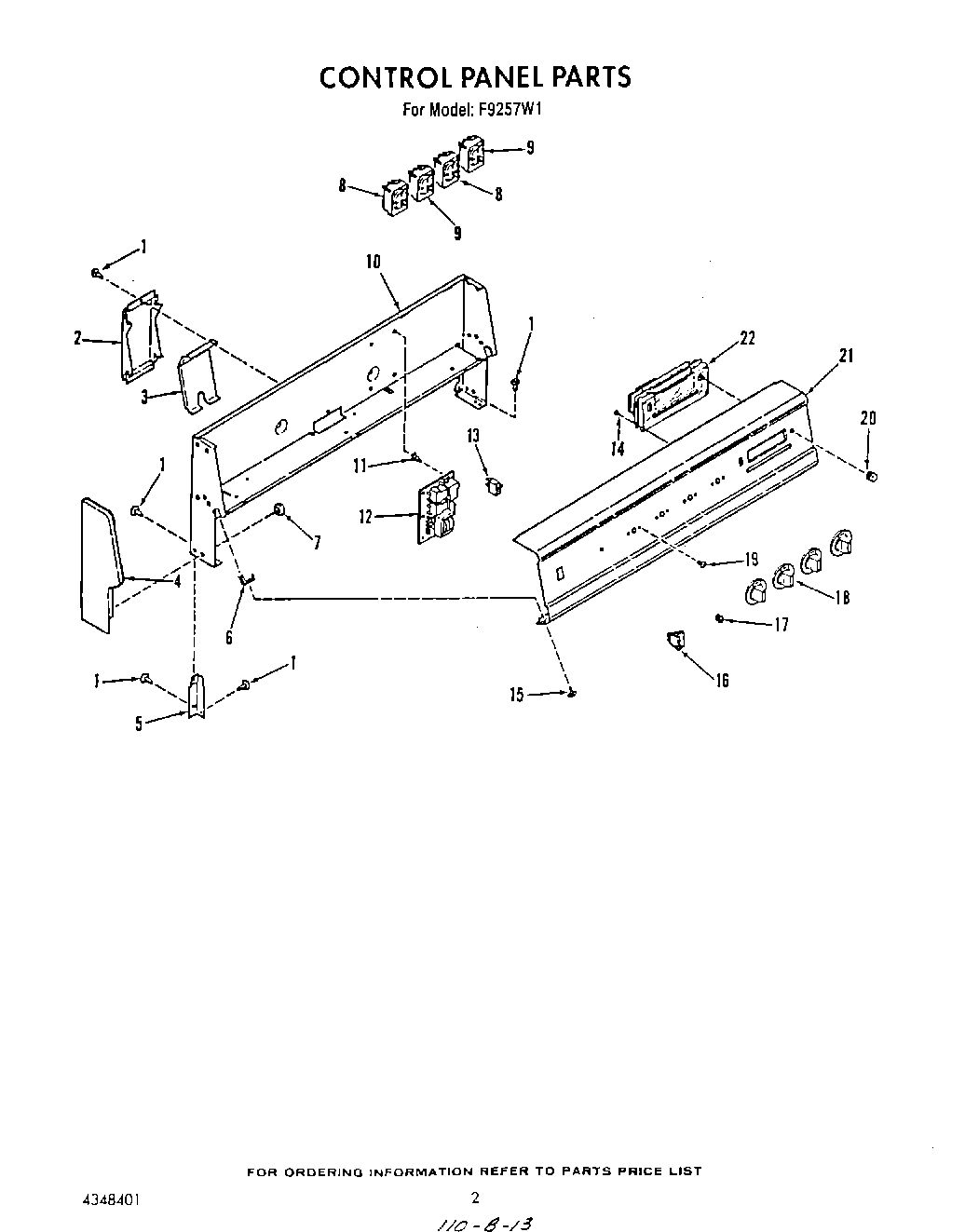

F9257^1 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
xLens, Clock/Oven Control
1SCREW
2Raceway, Wire
3Cover, Raceway
4End Cap (Left)
4End Cap (Right)
5Support, Backguard (Left)
5Support, Backguard (Right)
6Clip, Backguard
7WP308499 Whirlpool Nut
8W10900107 Whirlpool Oven Surface Element Switch
10Frame, Backguard
11Spacer
12Relay Circuit Board
13Indicator Light, (Surface Unit)
14Screw
15Screw
16WP4314961 Whirlpool Lite Switch
17WP9750343 Whirlpool Light Lens
18Knob, Infinite
19Screw
20Knob, Clock
21Control Panel
22Clock/Oven Control
22Installation Guide
22Repair Parts List
22Owners Manual
