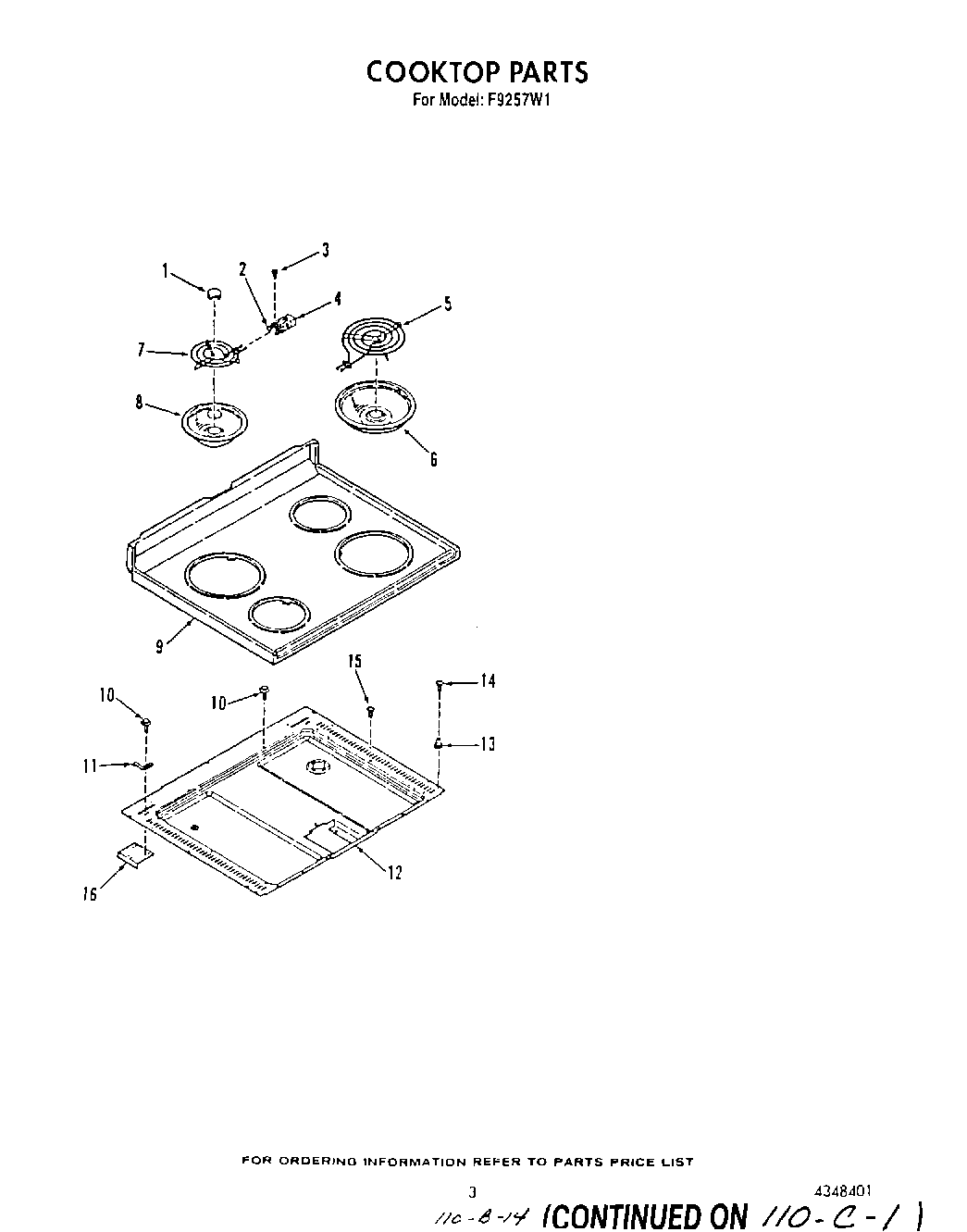

F9257^1 03 – COOKTOP
Written by
in
F9257^1 03 – COOKTOP
Products
Position
Product
1
Medallion (2)
2
WP4332752 Whirlpool Clip
3
Screw
4
BURNER RECEPTACLE KIT
5
WP660533 Whirlpool Oven 8" Surface Element
6
DRIP BOWL 8" W/HOLE CHROME
7
WPY04100165 Whirlpool Surface Element
8
WPW10196406 Whirlpool 6" Chrome Drip Bowl
9
Cooktop (White)
9
Cooktop (Chrome)
9
Cooktop (Almond)
10
SCREW
11
Hinge-Main Cooktop (Right)
11
Hinge-Main Cooktop (Left)
12
Bottom, Burner Box
13
Strike
14
Screw No.6-32×7/8
15
Screw
16
Support Plate
←
