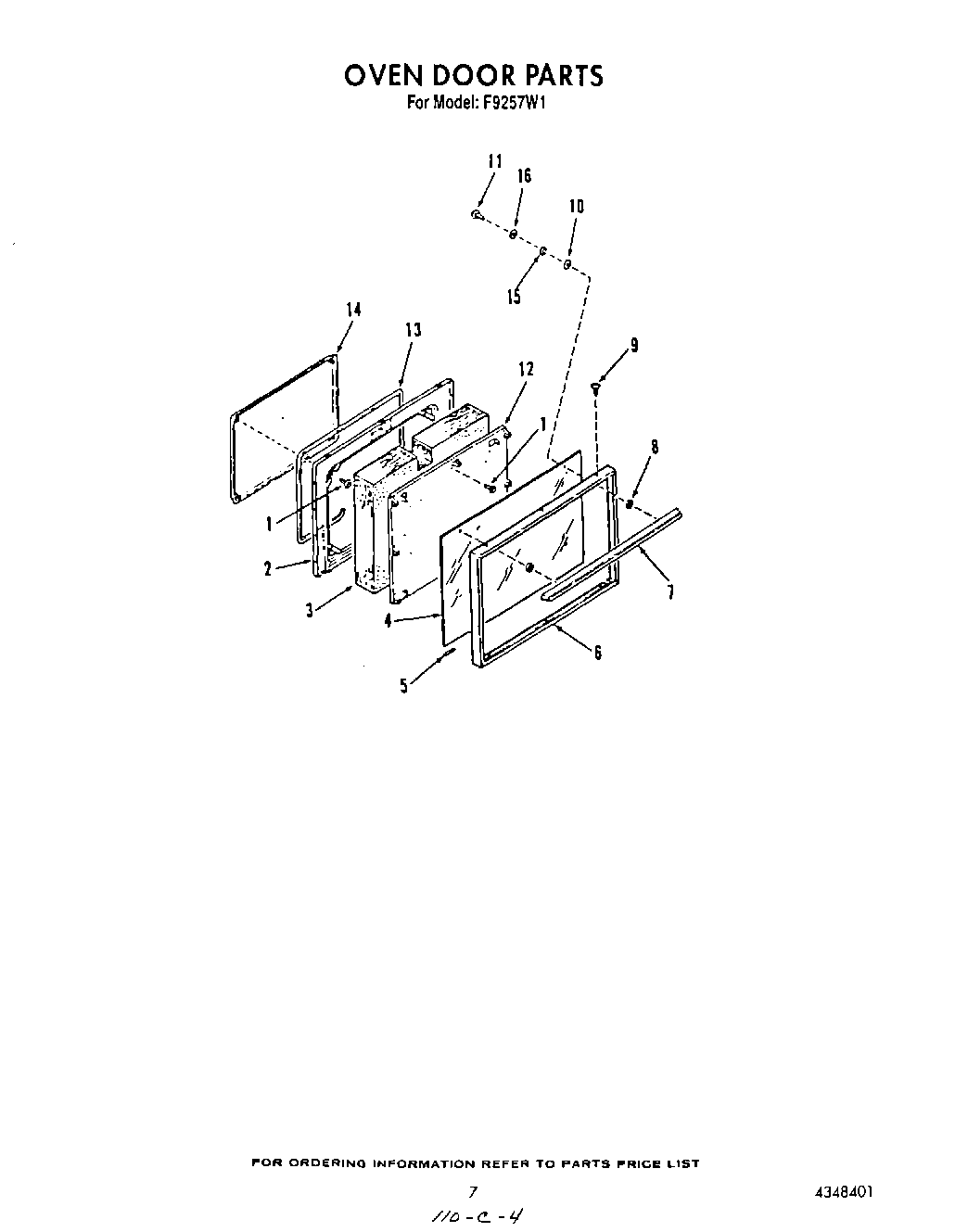

F9257^1 06 – OVEN DOOR, WIRING DIAGRAM

Written by

Products

Position	Product
1	SCREW
2	Lining
3	Insulation
4	Glass, Outer
5	Cushion
6	Frame, Door
7	Handle
8	Spacer, Dr. Handle
9	Screw
10	Washer, Fiber
11	WP999367 Whirlpool Refrigerator Screw
12	Retainer, Insulation
13	Gasket, Door
14	Plug, Inner Door
15	Spacer, Glass Door
16	Washer
