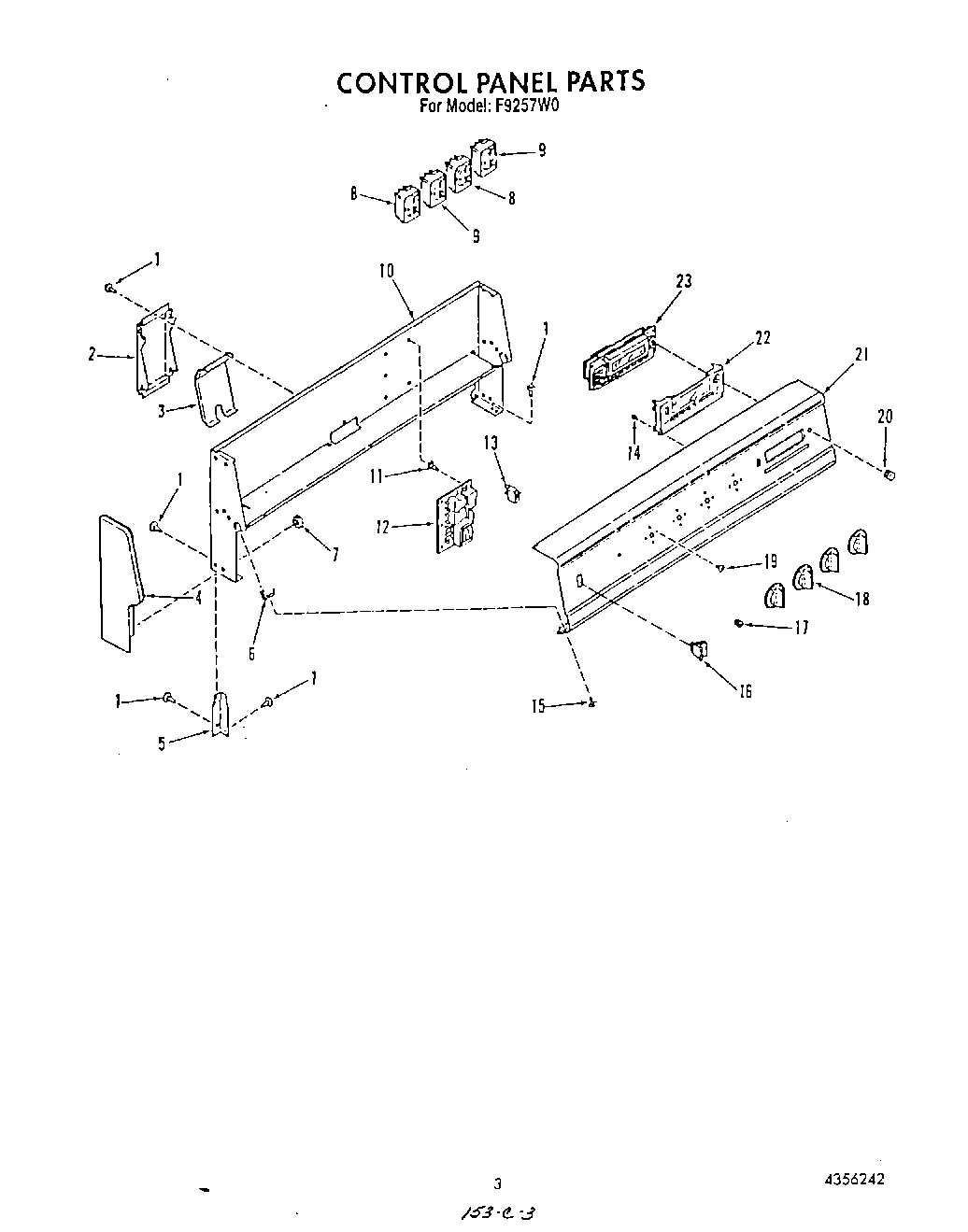

F9257W0 03 – CONTROL PANEL

F9257W0 03 – CONTROL PANEL

Written by

in

F9257W0 03 – CONTROL PANEL

Products

PositionProduct
1SCREW
2Raceway, Wire
3Cover, Raceway
4End Cap (Right)
4End Cap (Left)
5Support, Backguard (Left)
5Support, Backguard (Right)
6Clip, Backguard
7WP308499 Whirlpool Nut
8W10900107 Whirlpool Oven Surface Element Switch
10Frame, Backguard
11Spacer
12Circuit Board With Relay
13Indicator Light, (Surface Unit)
14Screw
15Screw No.10-32×1/2
16WP4314961 Whirlpool Lite Switch
17WP9750343 Whirlpool Light Lens
18Knob, Infinite
19Screw
20Control Knob, Clock/Oven
21Control Panel
22Lens, Clock/Oven Control
23Installation Guide
23Clock/Oven Control
23Owners Manual
23Repair Parts List
