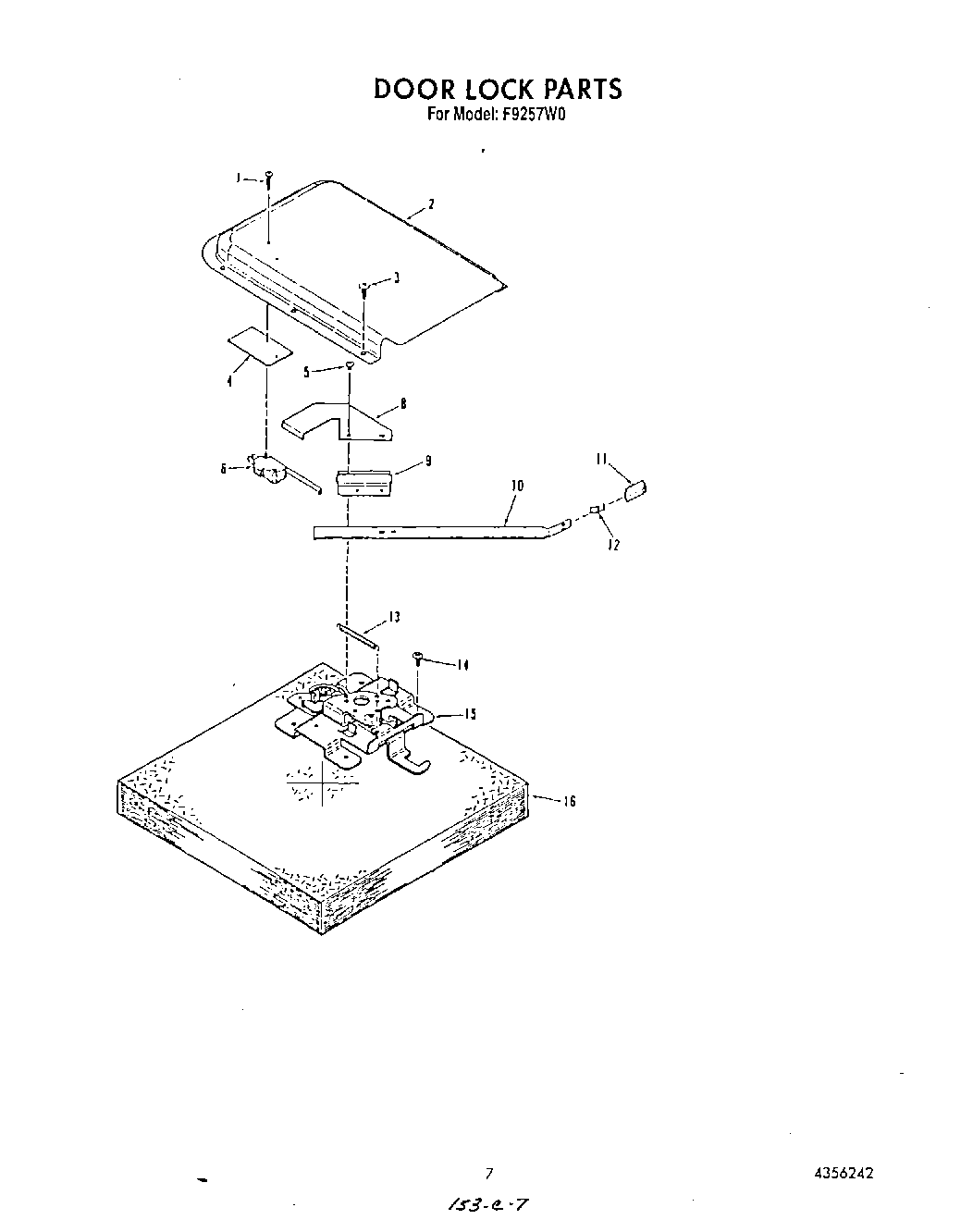

F9257W0 07 – DOOR LOCK

Products

Position	Product
NI	Control, Clock/Oven
NI	Eyelet Terminal
NI	Wire Harness (3/16“)
NI	Wire Harness (Flag Terminal Faston Terminal)
NI	Sensor
NI	WP285432 Whirlpool Terminal
1	Screw, No.4-40 x 11/16
2	Cover, Lock
3	Screw
4	Insulator
5	WPL 4323636
6	Switch, Door Lock
8	Lever, Switch
9	Retainer, Handle
10	Handle, Latch
11	Knob, Lock
12	Clip, Knob
13	Spring
14	SCREW
15	Latch Assembly
16	Insulation
