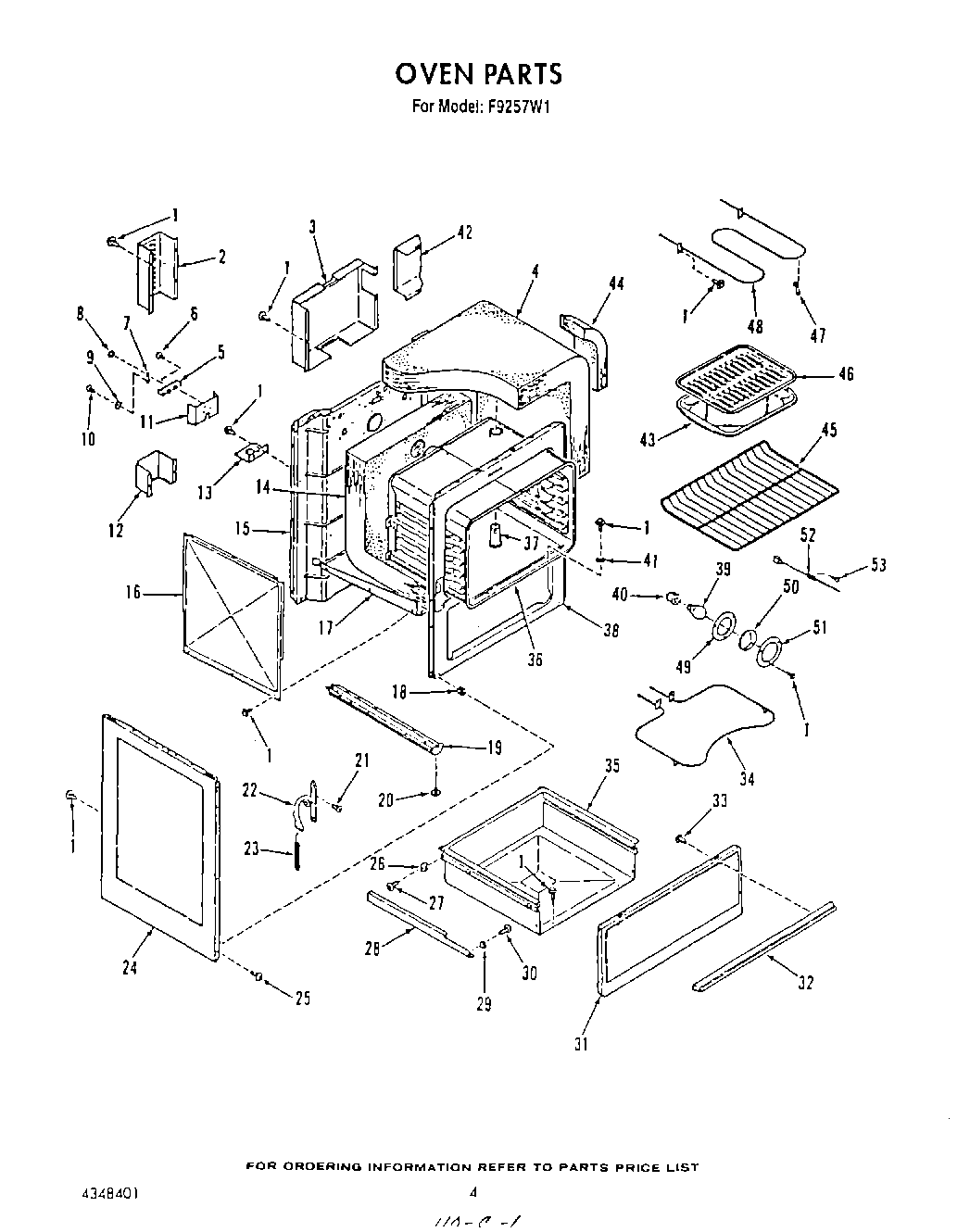

| 1 | SCREW |
| 2 | Wire Shield, Upper |
| 3 | Wire Shield |
| 4 | Insulation |
| 5 | WP8203546 Whirlpool Terminal Block |
| 6 | Screw, No.10-32x1 |
| 7 | Strap, Ground |
| 8 | Nut, Hex 10-32 |
| 9 | Washer |
| 10 | Screw No.10-32x7/16 |
| 11 | Insulation, Service Cord |
| 12 | Wire Cover, Lower |
| 13 | Service Plate |
| 14 | Insulation, Back And Bottom |
| 15 | Rear Cover |
| 16 | Retainer, Insulation (Lt/Rt) |
| 17 | Retainer, Insulation, Bottom |
| 18 | Nut-Expansion (6) |
| 19 | Base, W/ Levelers (2) |
| 20 | Levelers, Leg (4) |
| 21 | Screw |
| 22 | Hinge, Oven Door (Right) |
| 22 | Hinge, Oven Door (Left) |
| 23 | Spring, Oven Door (Lt/Rt) |
| 24 | Side Panel (Lt/Rt) (Black) |
| 24 | Side Panel (Lt/Rt) (Almond) |
| 24 | Side Panel (Lt/Rt) (White) |
| 25 | Screw No.8x5/8 |
| 26 | Rear Slide Block (Lt/Rt) |
| 27 | Screw, No.8-32 x 3/8 |
| 28 | Support, (Lt/Rt), Storage Drawer |
| 29 | Front Slide Block, Lt/Rt |
| 30 | Screw, No.10-32 x 17/32 |
| 31 | Front Panel, Storage Drawer (Black) |
| 31 | Front Panel, Storage Drawer (Almond) |
| 31 | Front Panel, Storage Drawer (White) |
| 32 | Handle |
| 33 | Screw No.10-32x1/2 |
| 34 | Bake Element (208 Volt (Opt)) |
| 34 | Element, Bake (240 Volt) |
| 35 | Drawer, Storage |
| 36 | Oven Cavity |
| 37 | Tube, Vent |
| 38 | Frame, Front |
| 39 | RANGE ONLY 40W 120V APPL BULB |
| 40 | W10856866 Whirlpool Light Socket |
| 41 | Washer |
| 42 | Wire Shield |
| 44 | Insulation |
| 45 | Rack, Oven |
| 46 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 47 | Support, Element |
| 48 | WP4334925 Whirlpool Broil Element |
| 49 | Gasket, Lens |
| 50 | Lens, Oven Light |
| 51 | Retainer, Lens |
| 52 | Sensor |
| 53 | Screw |
