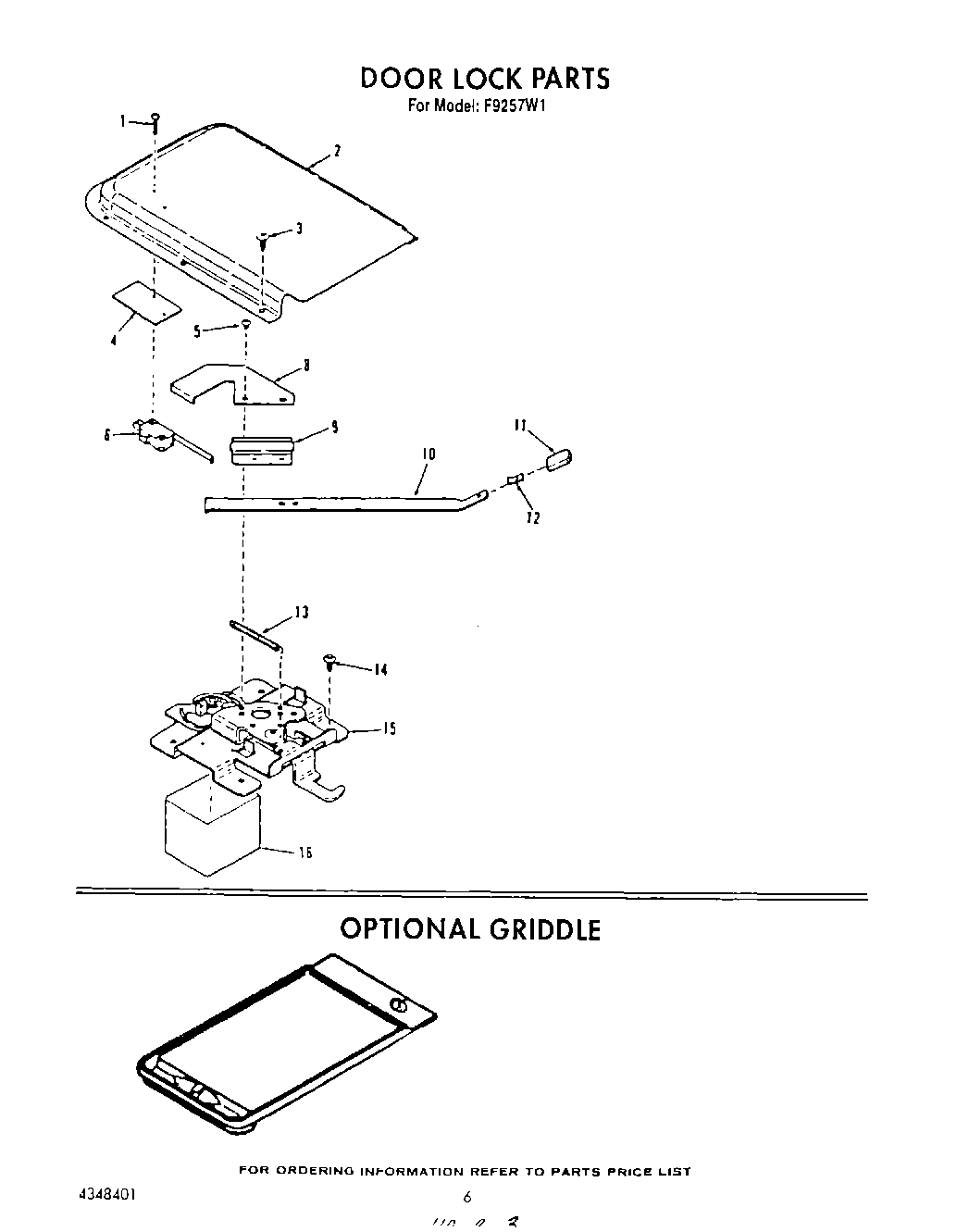

F9257W1 05 – DOOR LOCK, OPTIONAL GRIDDLE

Products

Position	Product
	Sensor
1	Screw, No.4-40 x 11/16
2	Cover, Lock
3	Screw
4	Insulator
5	WPL 4323636
6	Switch, Door Lock
8	Lever, Switch
9	Retainer, Handle
10	Handle, Latch
11	Knob, Lock
12	Clip
13	Spring
14	SCREW
15	Latch Assembly
16	Wire Harness (3/16“)
16	Wire Harness (Flag Terminal Faston Terminal)
16	WP285432 Whirlpool Terminal
16	Eyelet Terminal
16	Set-On-Griddle
16	Control, Clock/Oven
16	Retainer, Insulation
16	Wire Harness Parts
