F9757^0 05 – POWER LOCK – Aparts

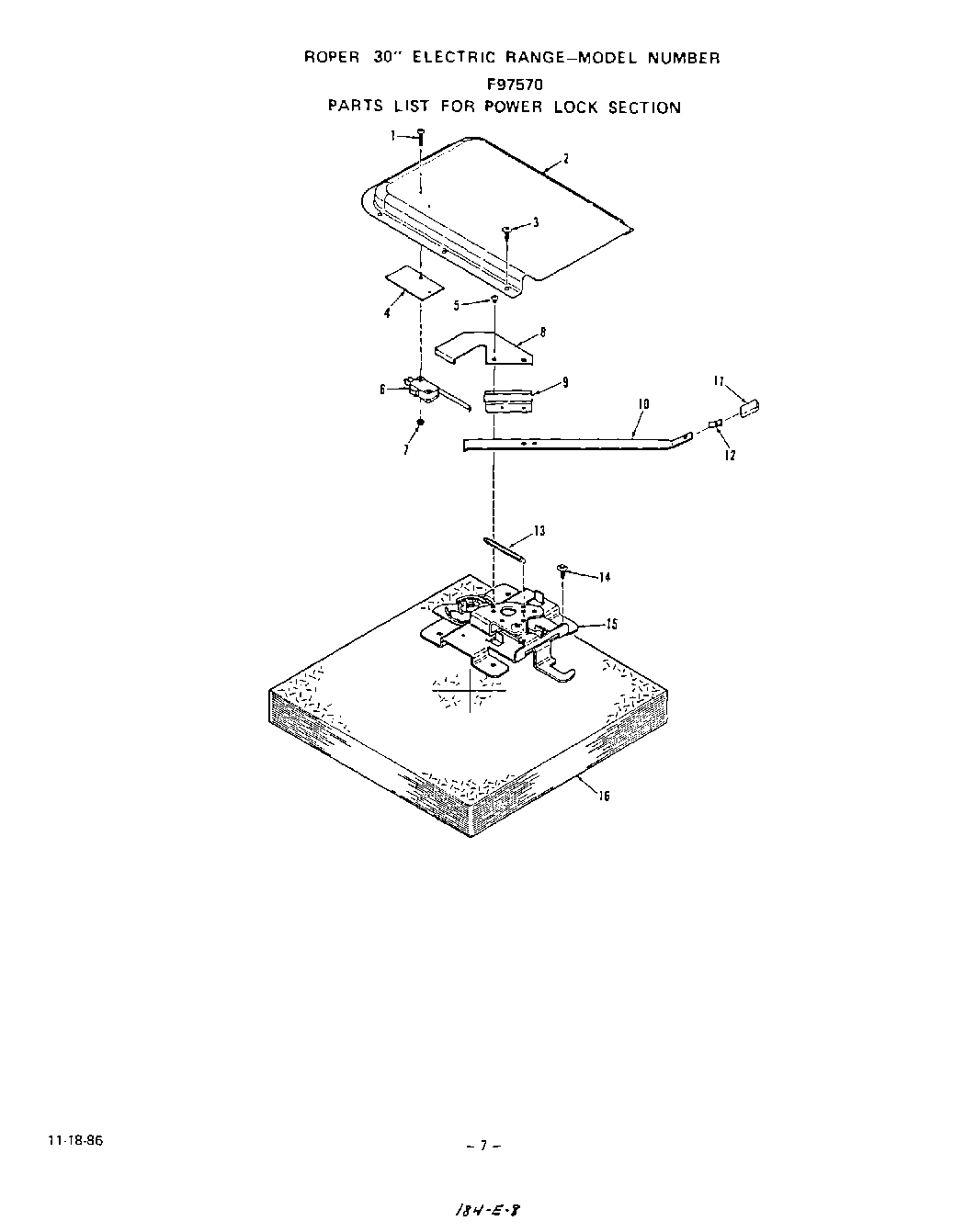

F9757^0 05 – POWER LOCK

Products

Position	Product
1	Screw 4-40 x 11/16``
2	Cover-Lock
3	Screw-10-32x1/2``
4	Insulator-Switch (3 Req)
5	Screw 8-32x1/4``
6	Micro Switch
7	Keps Nut 4-40
8	Switch Lever
9	Retainer-Latch Handle
10	Handle-Latch
11	Knob-Lock
12	Clip-Knob
13	Spring
14	Screw 10-16x7/16``
15	Latch Asm.
16	Insulation-Lock
