F9757^1 02 – CONTROL PANEL

F9757^1 02 – CONTROL PANEL

Written by

in

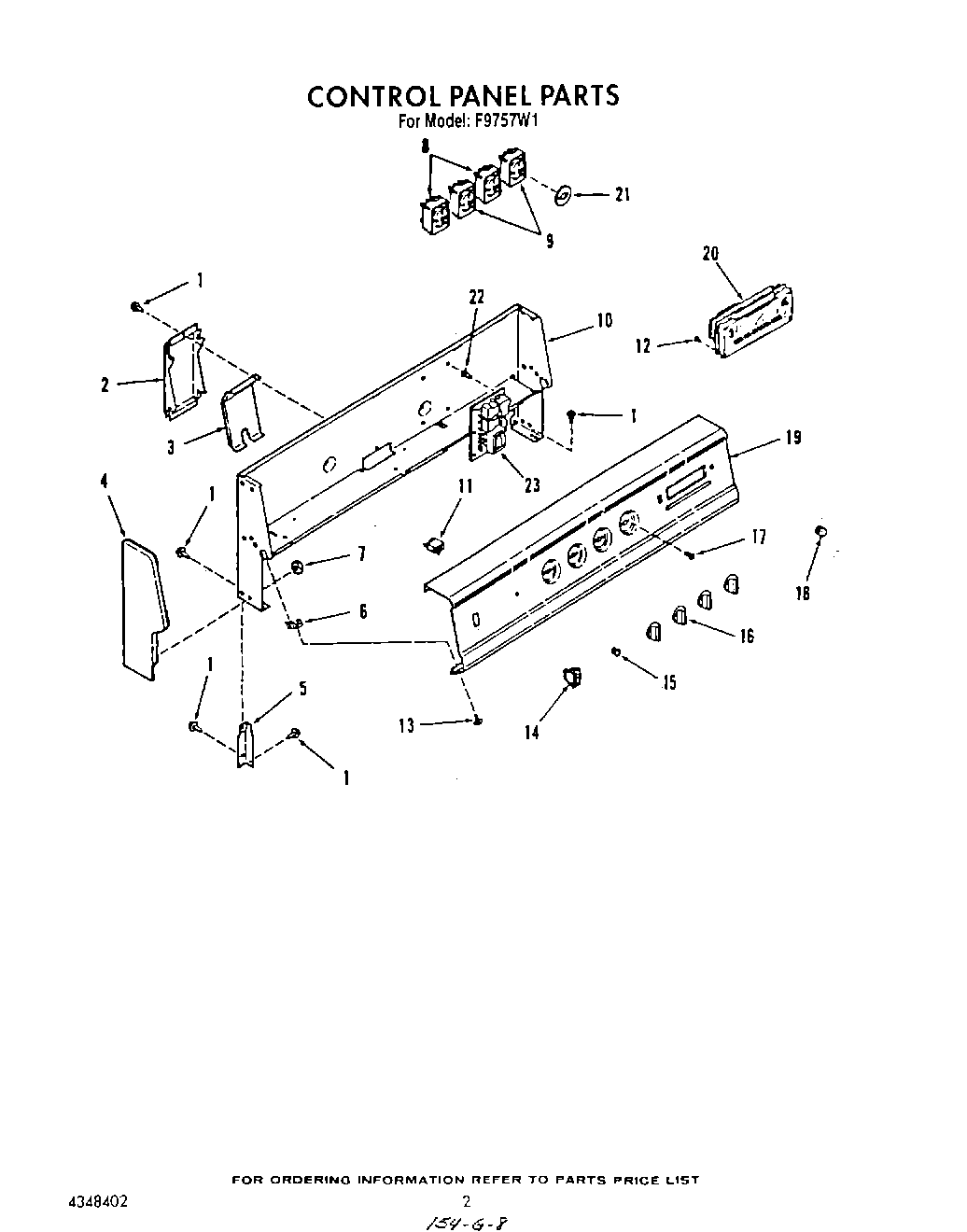

F9757^1 02 – CONTROL PANEL

Products

PositionProduct
1SCREW
2Raceway, Wire
3Cover, Raceway
4End Cap (Left)
4End Cap (Right)
5Support, Backguard (Right)
5Support, Backguard (Left)
6Clip, Backguard
7WP308499 Whirlpool Nut
8W10900107 Whirlpool Oven Surface Element Switch
10Frame, Backguard
11Indicator Light, (Surface Unit)
12Screw
13Screw
14WP4314961 Whirlpool Lite Switch
15WP9750343 Whirlpool Light Lens
16Knob, Infinite
17Screw No.8-32×1/4“ (6 Req)
18Control Knob, Clock/Oven
19Control Panel
20Clock/Oven Control
21Spacer, Infinite Control
22Spacer
23Owners Manual
23Installation Guide
23Relay Circuit Board
23Repair Parts List
