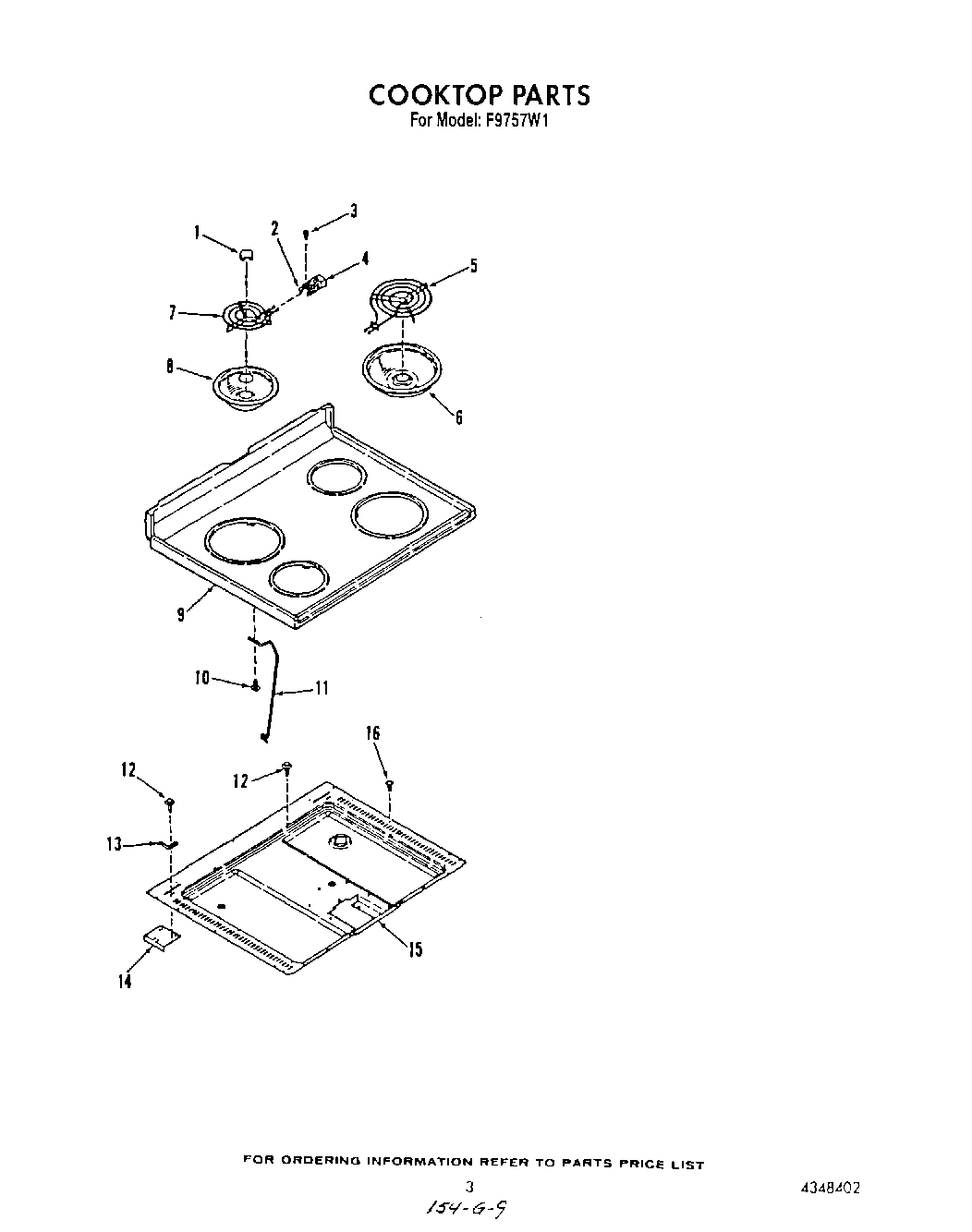

F9757^1 03 – COOK TOP

Products

Position	Product
1	Medallion (2)
2	WP4332752 Whirlpool Clip
3	Screw, No.7-32 x 5/16
4	BURNER RECEPTACLE KIT
5	WP3177565 Whirlpool Surface Element
6	DRIP BOWL 8" W/HOLE CHROME
7	WPY04100165 Whirlpool Surface Element
8	WPW10196406 Whirlpool 6" Chrome Drip Bowl
9	Cooktop (Almond)
9	Cooktop (White)
10	Screw 6-32×5/16
11	Support Rod (2)
12	Screw, No.10-16 x 7/16
13	Hinge-Main Cooktop (Left)
13	Hinge-Main Cooktop (Right)
14	Support Plate
15	Bottom, Burner Box
16	Screw No.10-32×1/2
