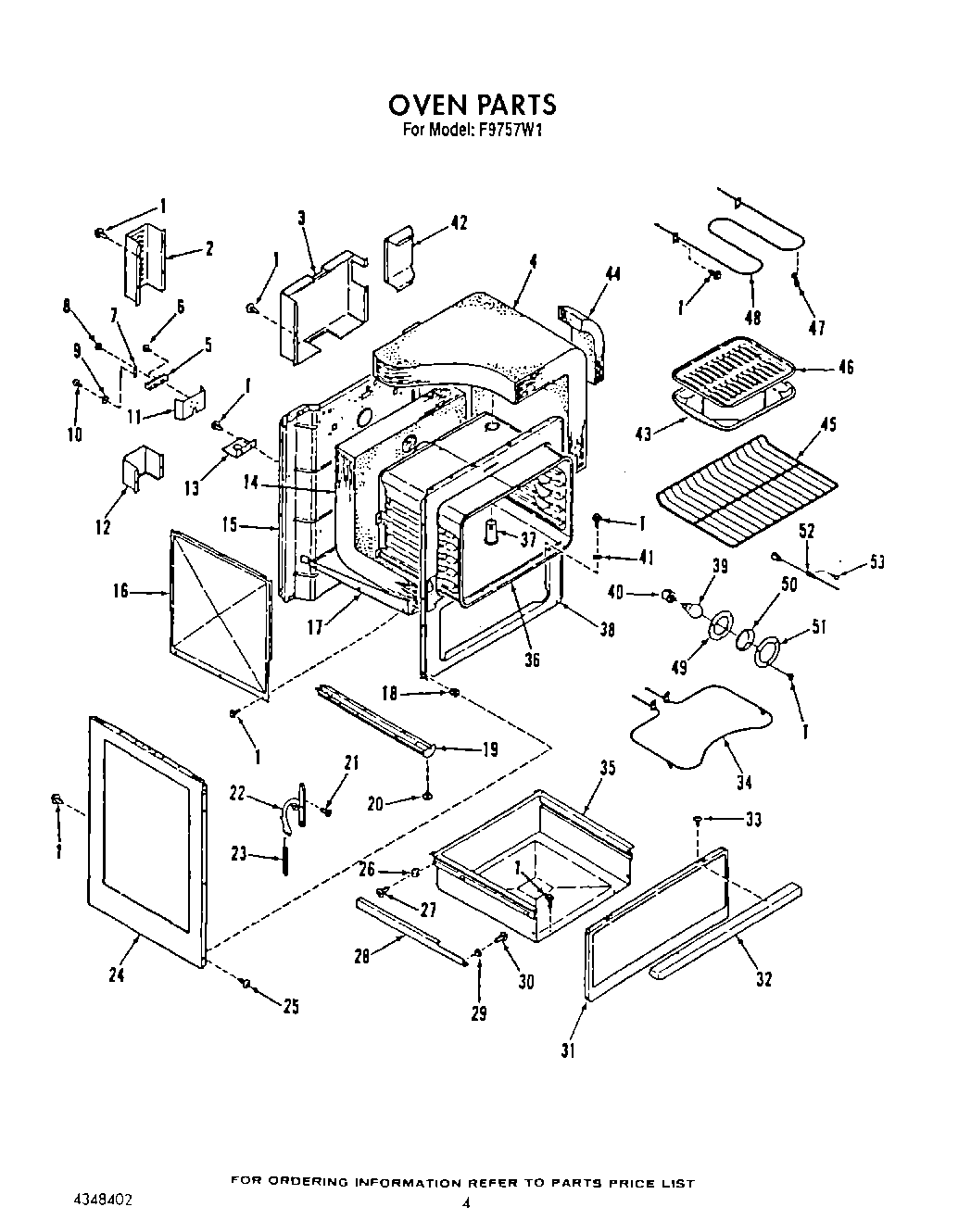

F9757^1 04 – OVEN

Products

Position	Product
1	SCREW
2	Wire Shield, Upper
3	Wire Shield
4	Insulation
5	WP8203546 Whirlpool Terminal Block
6	Screw, No.10-32×1
7	Strap, Ground
8	Nut, Hex 10-32
9	Washer
10	Screw No.10-32×7/16
11	Insulation, Service Cord
12	Wire Cover, Lower
13	Service Plate
14	Insulation, Back And Bottom
15	Rear Cover
16	Retainer, Insulation (Lt/Rt)
17	Retainer, Insulation, Bottom
18	Nut-Expansion (6)
19	Base, W/ Levelers (2)
20	Levelers, Leg (4)
21	Screw
22	Hinge, Oven Door (Right)
22	Hinge, Oven Door (Left)
23	Spring, Oven Door (Lt/Rt)
24	Side Panel (Lt/Rt) (White)
24	Side Panel (Lt/Rt) (Almond)
25	Screw No.8×5/8
26	Rear Slide Block (Lt/Rt)
27	Screw, No.8-32 x 3/8
28	Support, (Lt/Rt), Storage Drawer
29	Front Slide Block, Lt/Rt
30	Screw, No.10-32 x 17/32
31	Panel, Storage (White)
31	Panel, Storage (Almond)
32	Handle
33	Screw
34	Bake Element (208 Volt (Opt))
34	Element, Bake (240 Volt)
35	Drawer, Storage
36	Oven Cavity
37	Tube, Vent
38	Frame, Front
39	RANGE ONLY 40W 120V APPL BULB
40	W10856866 Whirlpool Light Socket
41	Washer
42	Wire Shield
44	Insulation
45	Rack, Oven (2)
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	Support, Element
48	WP4334925 Whirlpool Broil Element
49	Gasket, Lens
50	Lens, Oven Light
51	Retainer, Lens
52	Sensor
53	Screw No.6-20×3/8
