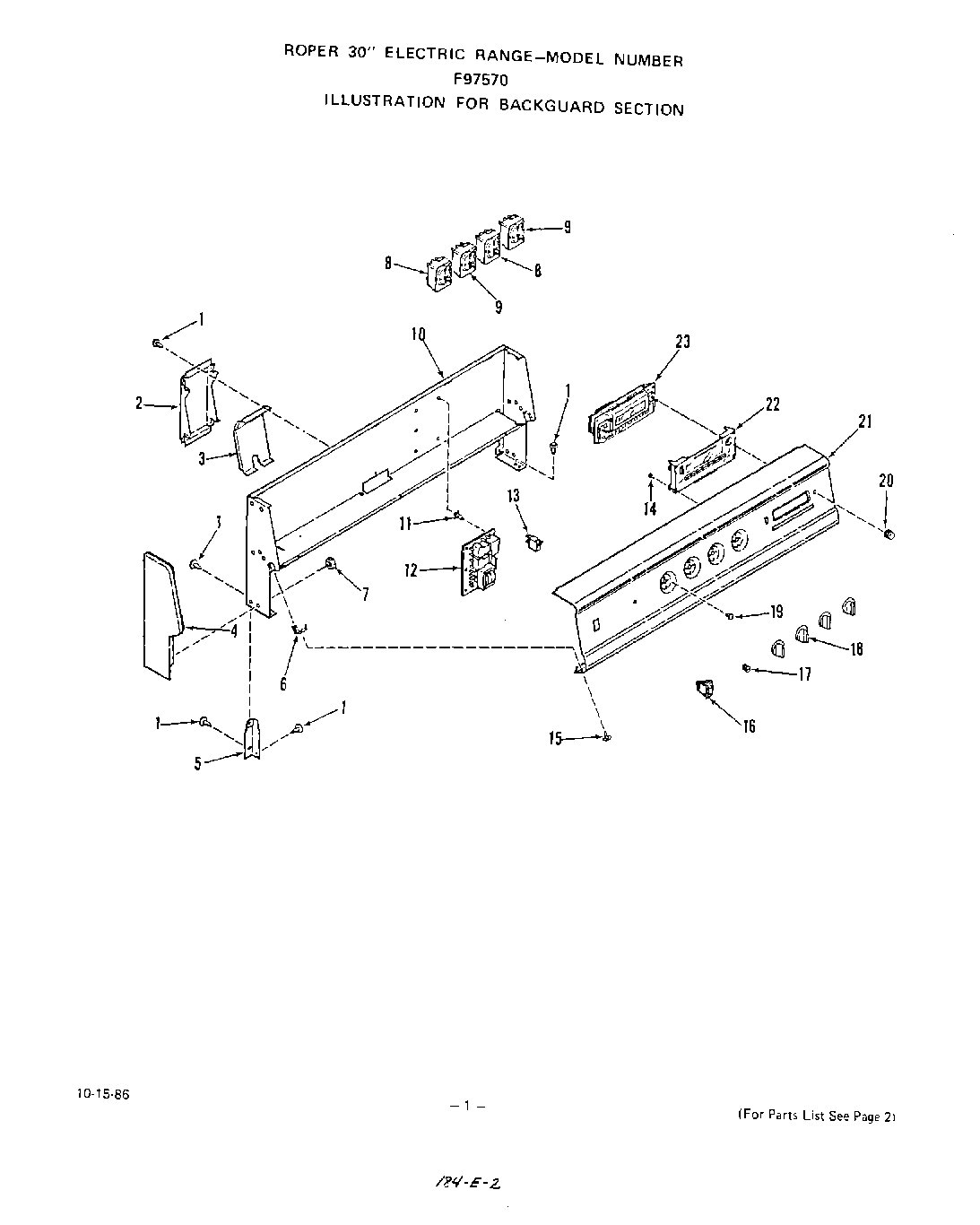

F9757W0 02 – LIT/OPTIONAL , BACKGUARD
Written by
in
F9757W0 02 – LIT/OPTIONAL , BACKGUARD
Products
Position
Product
1
Screw 10-16×7/16“
2
Wire Raceway
3
Raceway Cover
4
End Cap
4
Left
4
Right
5
Backguard Support
5
Left
5
Right
6
Backguard Clip
7
Pal Nut
8
Infinite Switch (Rt. Front or Lt. Rear)
9
Infinite Switch (Lt. Front or Rt. Rear)
10
Backguard Body
11
Spacer
12
Circuit Board w/Relay
13
Light-Indicator
14
Screw 6-32×5/16“
15
Screw-10-32×1/2“
16
Switch-Oven Light
17
Lens-Indicator Light
18
Infinite Knob
19
WPL 78565
20
Clock/Oven Control Knob
21
Control Panel
22
Clock Lens Asm
23
Clock/Oven Control
←
