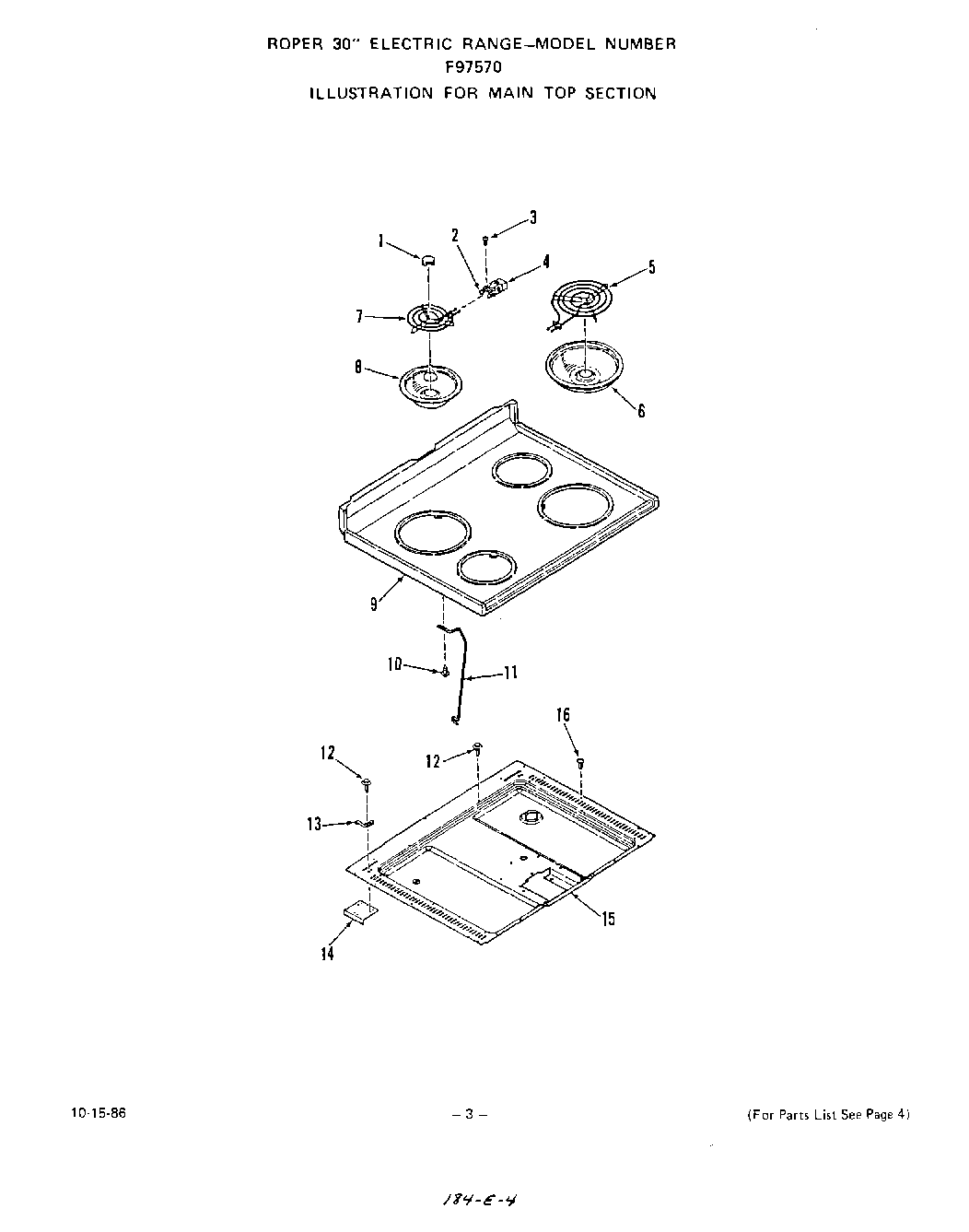

F9757W0 03 – MAIN TOP

Products

PositionProduct
1Medallion (2 Req) All 2101 Models
2Bracket-Term. Block (2 Req) All 2101 Mod.
3Screw 7-32×5/16“(2 Req) All 2101 Models
4Term. Block w/Leads-All 2101 Models
58“ Surface Element (1 Req) All 2101 Mod.
68“ Burner Bowl (1 Req) All 2101 Models
76“ Surface Element (1 Req) All 2101 Models
86“ Burner Bowl (1 Req) All 2101 Models
9Main Top
9Almond
9White
10Screw 6-32 x 5/16“
11Support Rod-Main Top (2 Req)
12Screw 10-16×7/16“
13Right
13Left
13Hinge-Main Top
14Reinforcement Plate (2 Req)
15Burner Box Bottom
16Screw-10-32×1/2“
