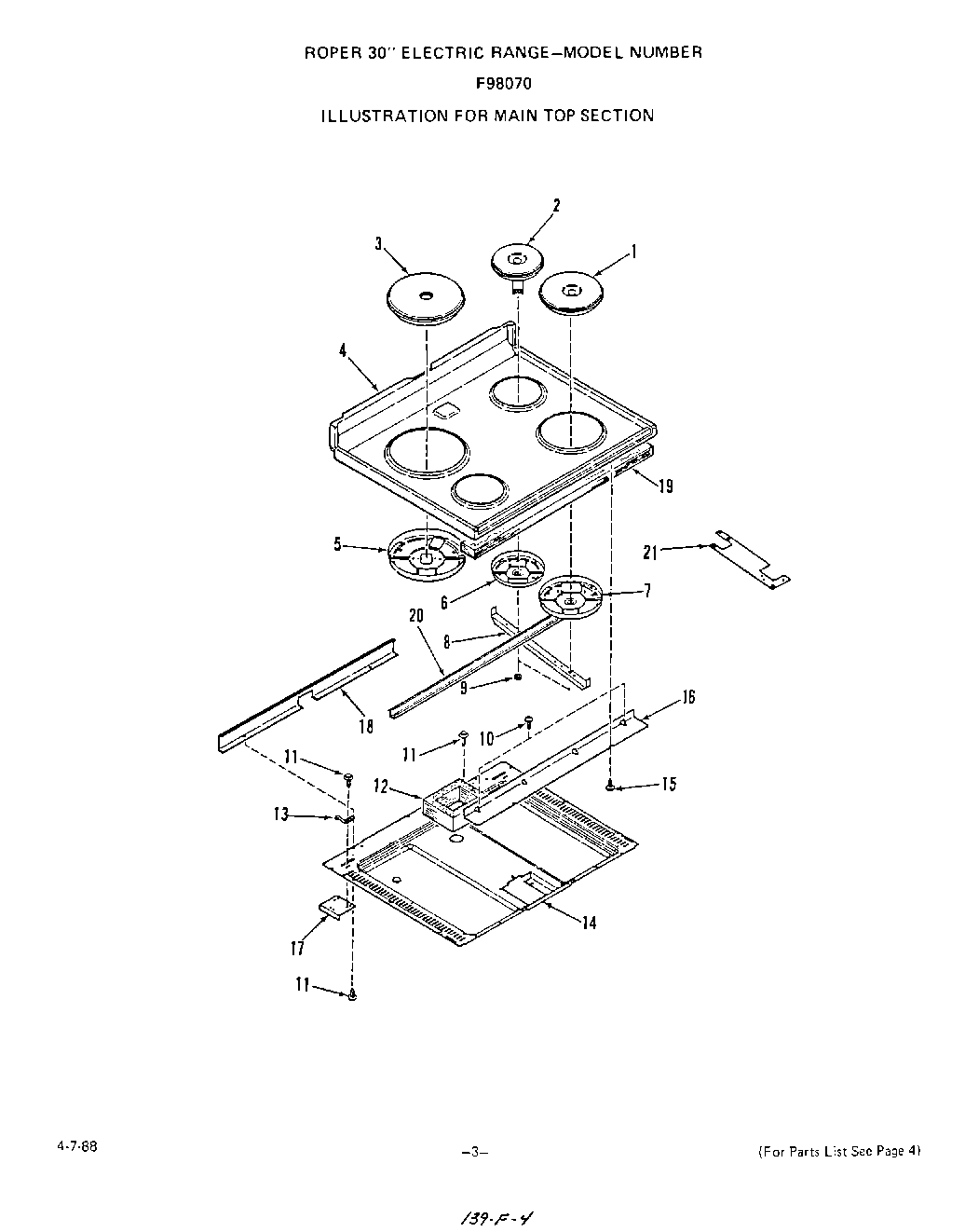

| 1 | Element-Hob (Large) |
| 2 | Element-Hob (Small) |
| 3 | Thermal Control Element (Lt. Rear) |
| 4 | Almond (With Trims) |
| 4 | Main Top |
| 4 | White (With Trims) |
| 4 | Chrome |
| 5 | Element Clamp (Lt. Front) |
| 6 | Clamp-Hob Element (Small) |
| 7 | Clamp-Hob Element (Large) |
| 8 | Element Brace (Lt. or Rt.) |
| 9 | Mounting Nut (2 Req) |
| 10 | Screw-10-32x1/2`` |
| 11 | Screw 10-16x7/16`` |
| 12 | Vent Seal |
| 13 | Right |
| 13 | Left |
| 13 | Main Top Hinge |
| 14 | Burner Box Bottom |
| 15 | Screw 8ABx5/8`` |
| 16 | Cover Plate |
| 17 | Reinforcement Plate (2 Req) |
| 18 | Burner Box Baffle |
| 19 | Insulation |
| 20 | Cross Brace |
| 21 | Element Strap |
