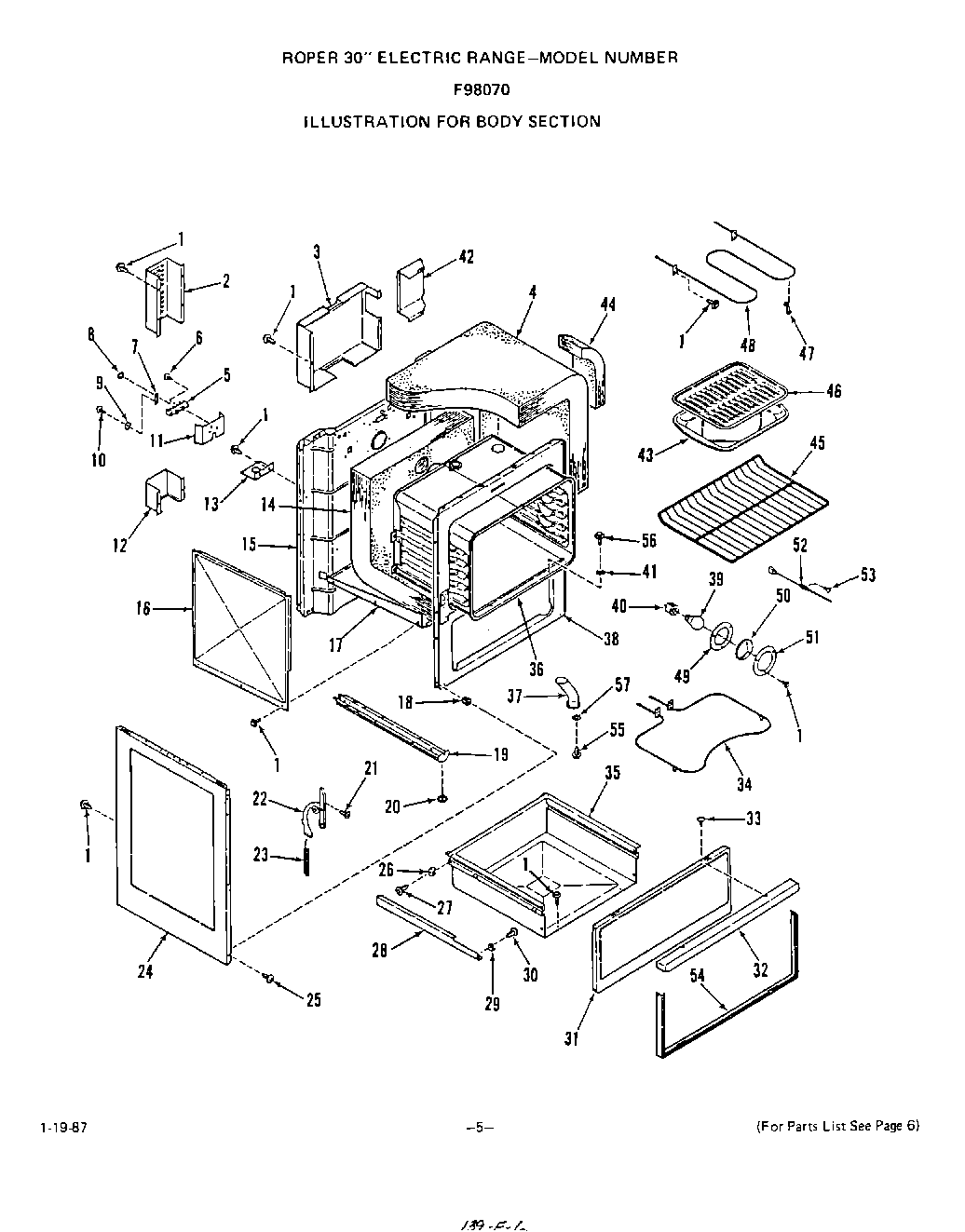

| 1 | Screw 10-16x7/16`` |
| 2 | Shield-Upper Wire |
| 3 | Wire Shield |
| 4 | WP338864 Whirlpool Plug |
| 5 | Junction Block |
| 6 | Screw 10-32x1`` |
| 7 | Ground Strap |
| 8 | WP342847 Whirlpool Drum Baffle |
| 9 | Washer |
| 10 | Screw 10-32x7/16`` |
| 11 | Insulation-Service Cord |
| 12 | Wire Shield-Lower |
| 13 | Range Service Mounting Plate |
| 14 | Insulation-Oven Back & Bottom |
| 15 | Main Back |
| 16 | Insulation Retainer (Left) |
| 17 | window, oven door |
| 18 | BURNER RECEPTACLE KIT |
| 19 | Base w/Levelers-Lt. or Rt. |
| 20 | Leg Leveler (4 Req) |
| 21 | Screw |
| 22 | Hinge-Main Top (Left) |
| 22 | Hinge-Main Top (Right) |
| 22 | Hinge-Oven Door |
| 23 | Spring-Oven Door (Lt. or Rt.) |
| 24 | White |
| 24 | Almond |
| 24 | Body Side (Lt. or Rt.) |
| 24 | Black |
| 25 | Screw 8ABx5/8`` |
| 26 | Rear Slide Block - Lt. or Rt. |
| 27 | Screw 8 - 32 x 3/8`` |
| 28 | Support-Storage Drawer (Lt. or Rt.) |
| 29 | Front Slide Block-(Lt. or Rt.) |
| 30 | Screw 10-32x17/32`` |
| 31 | White |
| 31 | Almond |
| 31 | Front Panel-Storage |
| 31 | Black |
| 32 | Handle |
| 33 | Screw 10-16x1/2`` |
| 34 | Bake Element |
| 34 | 208 Volt |
| 34 | 240 Volt |
| 35 | Storage Drawer |
| 36 | Oven Body |
| 37 | Vent Tube |
| 38 | Front Frame |
| 39 | Oven Lamp |
| 40 | Holder-Oven Light Bulb |
| 41 | Washer |
| 42 | Wire Shield |
| 43 | WPL 331592 |
| 44 | Insulation (Rt. or Lt.) |
| 45 | Oven Rack (2 Req) |
| 46 | WPL 326297 |
| 47 | Support-Broiler Element |
| 48 | WPL 334369 |
| 48 | Broil Element |
| 48 | WPL 334368 |
| 49 | Gasket-Lens |
| 50 | Lens-Oven Light |
| 51 | Retainer-Oven Light Lens |
| 52 | Sensor |
| 53 | Screw 6Ax3/8`` |
| 54 | Frame |
| 55 | Screw 10 - 32 x 17/32`` |
| 56 | Screw 10ABx1/2`` |
| 57 | Washer |
