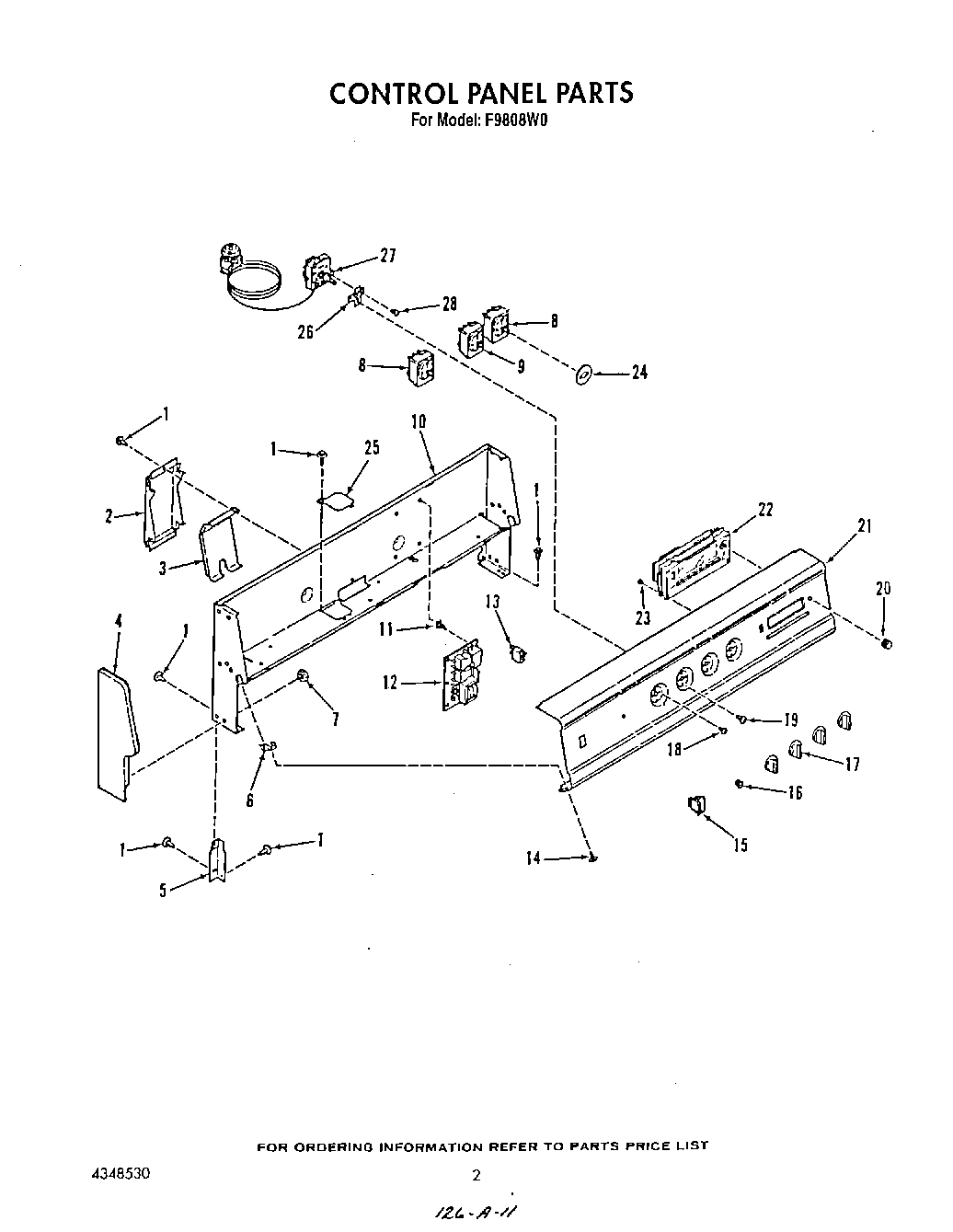

F9808^0 02 – CONTROL PANELadmin2025-04-26T11:33:07+00:00F9808^0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| xLens, Clock/Oven Control |
| 1 | SCREW |
| 2 | Raceway, Wire |
| 3 | Cover, Raceway |
| 4 | End Cap (Left) |
| 4 | End Cap (Right) |
| 5 | Support, Backguard (Right) |
| 5 | Support, Backguard (Left) |
| 6 | Clip, Backguard |
| 7 | WP308499 Whirlpool Nut |
| 8 | W10900107 Whirlpool Oven Surface Element Switch |
| 10 | Backguard |
| 11 | Spacer |
| 12 | Relay Circuit Board |
| 13 | Indicator Light, (Surface Unit) |
| 14 | Screw |
| 15 | WP4314961 Whirlpool Lite Switch |
| 16 | WP9750343 Whirlpool Light Lens |
| 17 | Knob, Infinite |
| 18 | Screw No.8-32x1/4`` (6 Req) |
| 19 | Screw |
| 20 | Knob, Clock |
| 21 | Panel, Control |
| 22 | Clock/Oven Control |
| 23 | Screw |
| 24 | Spacer, Infinite Control |
| 25 | Cover Plate |
| 26 | Bracket, Thermostat |
| 27 | Thermostat, Hob Element |
| 28 | Screw |
