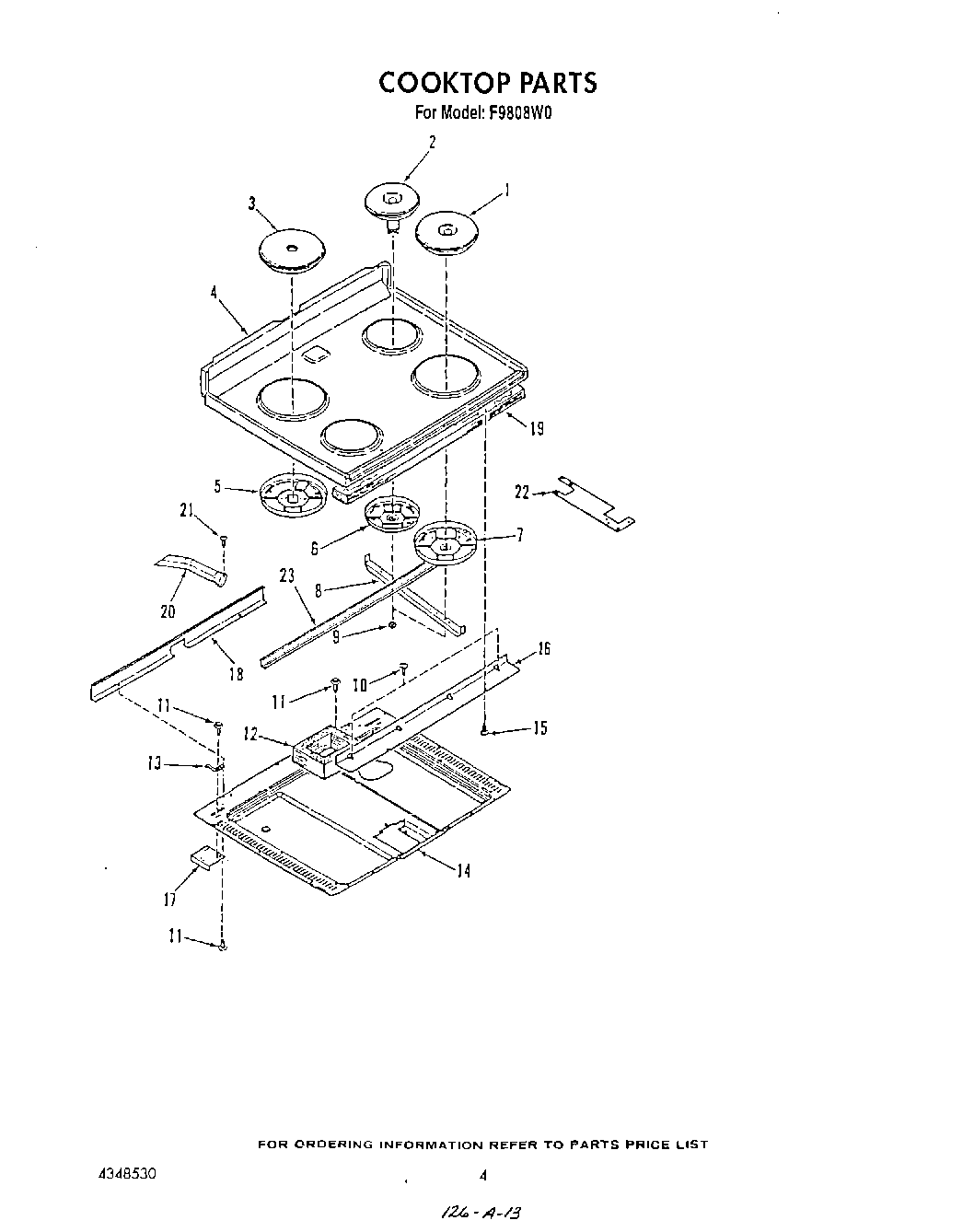

F9808^0 03 – COOKTOP

Products

PositionProduct
1WP3147132 Whirlpool Surface Element
2WP3147131 Whirlpool Surface Element
3Element, Thermal Lt Rear
4Cooktop (White, W/Trim)
4Cooktop (Almond, W/Trim)
4Cooktop (Chrome)
5Element Clamp, Large
6Clamp
7Clamp, Elmnt.
9Nut, Mount. (2)
10Screw
11SCREW
12Seal, Vent
13Hinge-Main Cooktop (Right)
13Hinge-Main Cooktop (Left)
14Bottom, Burner Box
15Screw No.8×5/8
16Cover Plate
17Support Plate
18Baffle, Burner Box
19Insulation
20Extension, Vent Tube
21WP308685 Whirlpool Microwave Screw
22Brace, Element
23Cross Brace
