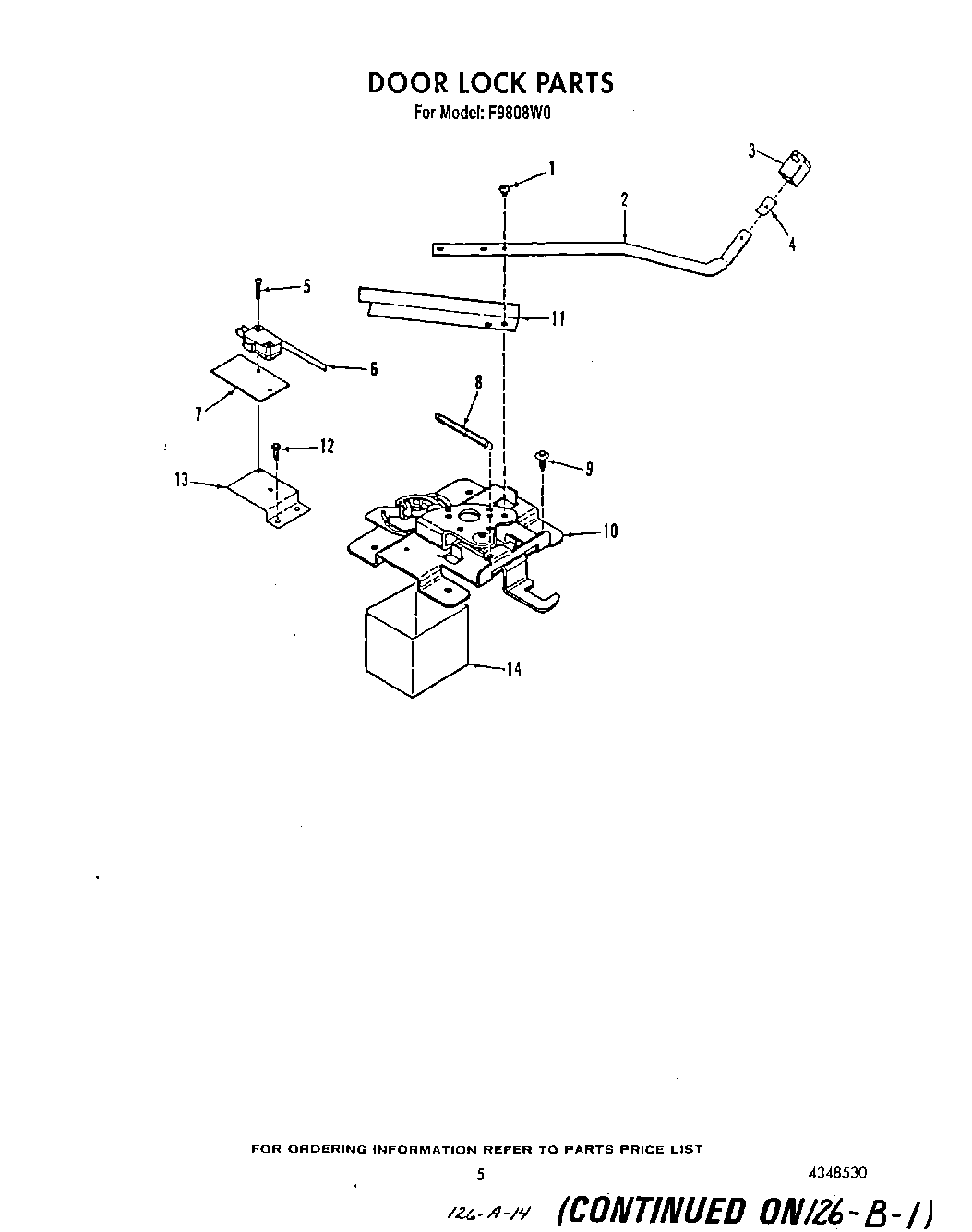

F9808L0 04 – DOOR LOCK

Products

PositionProduct
1Screw, No.10-24 x 1/4
2Handle, Latch
3Knob, Lock
4Clip
5Screw No.4-40×11/16
6Switch, Door Lock
7Insulator, Switch
8Spring
9SCREW
10Latch Assembly
11Lever, Switch
12Screw
13Bracket, Switch
14Retainer, Insulation
