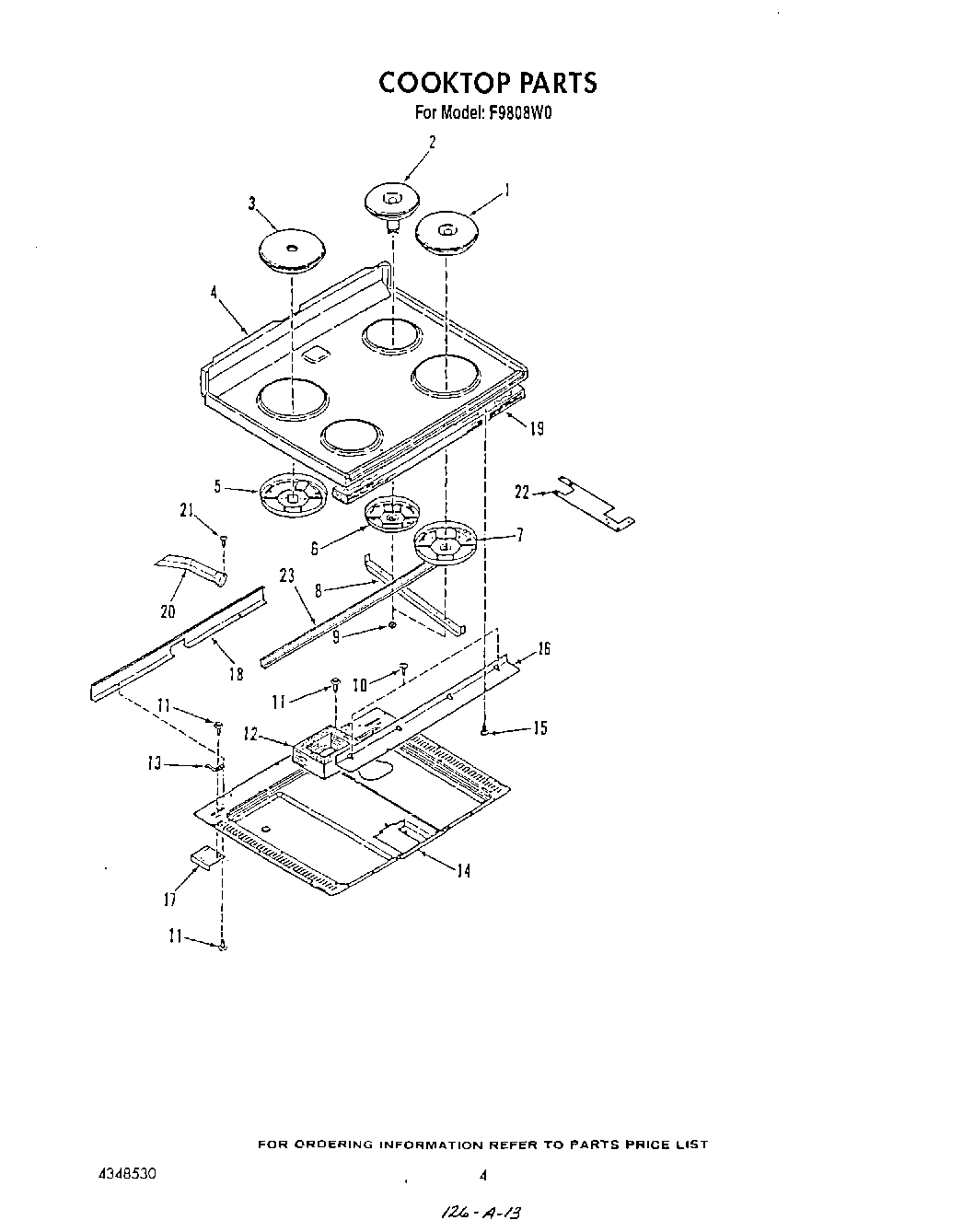

| 1 | WP3147132 Whirlpool Surface Element |
| 2 | WP3147131 Whirlpool Surface Element |
| 3 | Element, Thermal Lt Rear |
| 4 | Cooktop (White, W/Trim) |
| 4 | Cooktop (Almond, W/Trim) |
| 4 | Cooktop (Chrome) |
| 5 | Element Clamp, Large |
| 6 | Clamp |
| 7 | Clamp, Elmnt. |
| 9 | Nut, Mount. (2) |
| 10 | Screw |
| 11 | SCREW |
| 12 | Seal, Vent |
| 13 | Hinge-Main Cooktop (Right) |
| 13 | Hinge-Main Cooktop (Left) |
| 14 | Bottom, Burner Box |
| 15 | Screw No.8x5/8 |
| 16 | Cover Plate |
| 17 | Support Plate |
| 18 | Baffle, Burner Box |
| 19 | Insulation |
| 20 | Extension, Vent Tube |
| 21 | WP308685 Whirlpool Microwave Screw |
| 22 | Brace, Element |
| 23 | Cross Brace |
