F9808W0 04 – DOOR LOCK
Written by
in

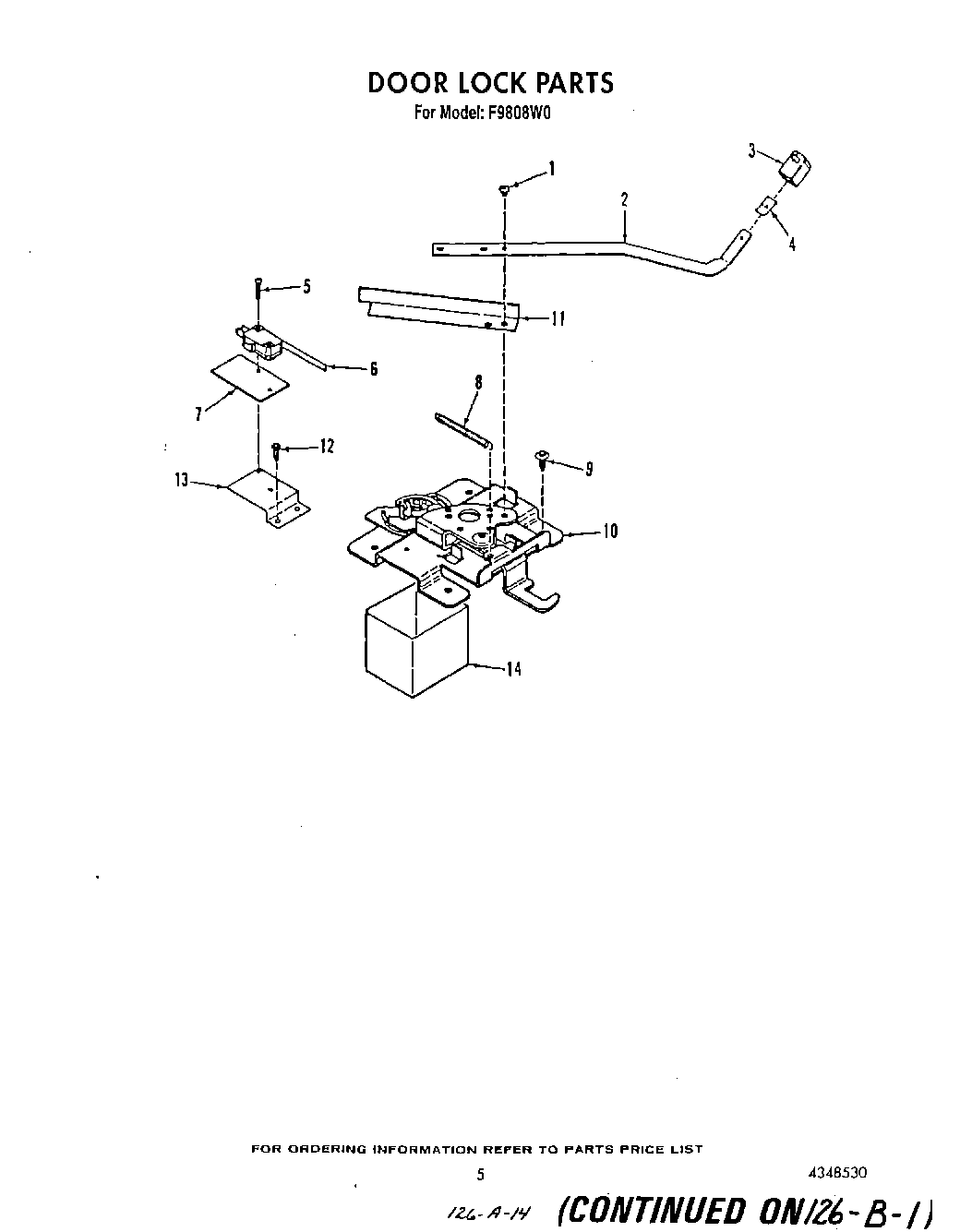

F9808W0 04 – DOOR LOCK
Products
Position
Product
1
Screw, No.10-24 x 1/4
2
Handle, Latch
3
Knob, Lock
4
Clip
5
Screw No.4-40×11/16
6
Switch, Door Lock
7
Insulator, Switch
8
Spring
9
SCREW
10
Latch Assembly
11
Lever, Switch
12
Screw
13
Bracket, Switch
14
Retainer, Insulation
←
