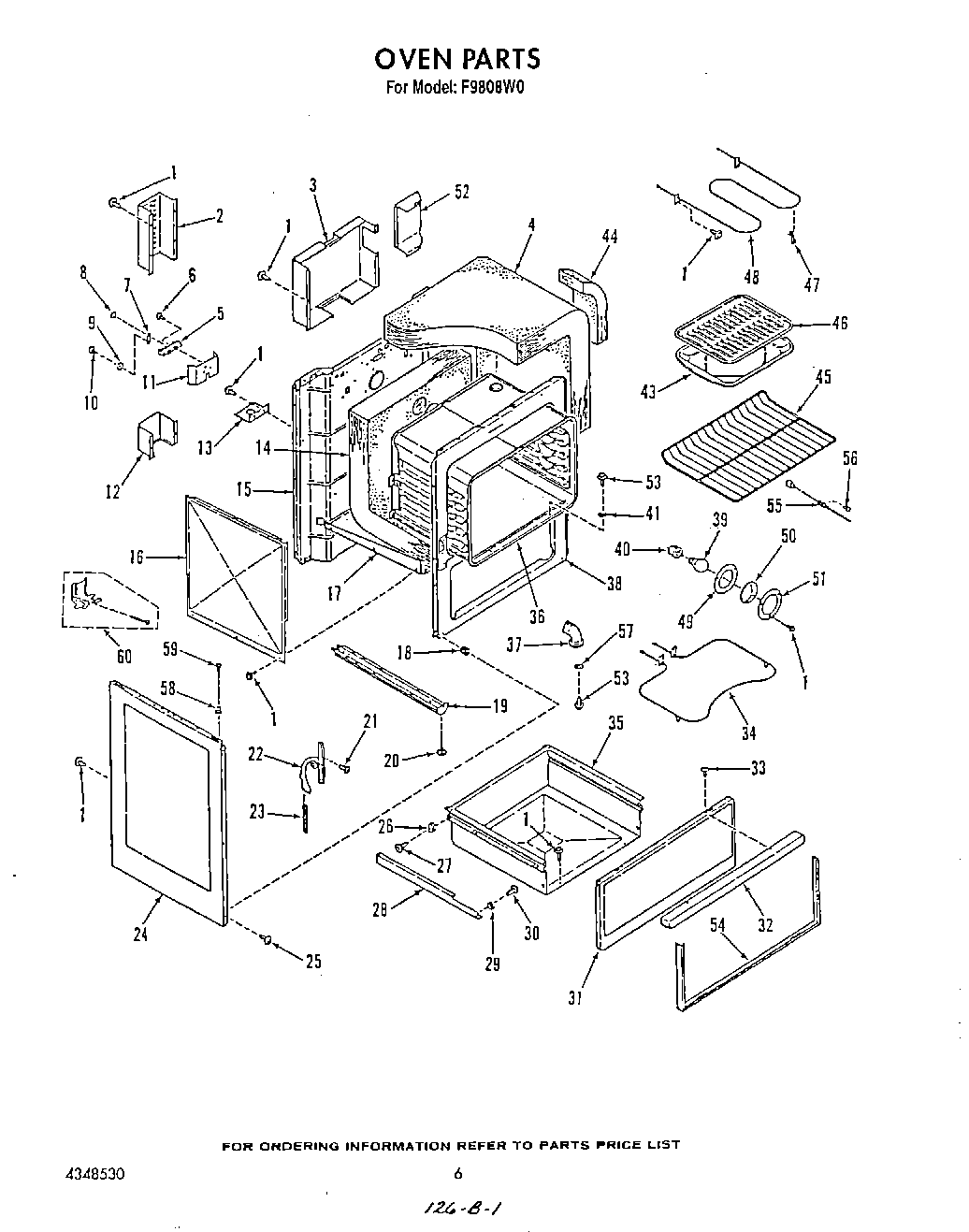

F9808W0 05 – OVEN

Products

Position	Product
1	SCREW
2	Wire Shield, Upper
3	Wire Shield
4	Insulation
5	WP8203546 Whirlpool Terminal Block
6	Screw, No.10-32×1
7	Strap, Ground
8	WP776338 Whirlpool Compactor Nut
9	Washer
10	Screw No.10-32×7/16
11	Insulation, Service Cord
12	Wire Cover, Lower
13	Service Plate
14	Insulation, Back And Bottom
15	Rear Cover
16	Retainer, Insulation (Lt/Rt)
17	Retainer, Insulation, Bottom
18	Nut-Expansion (6)
19	Base, W/ Levelers (2)
20	Levelers, Leg (4)
21	Screw
22	Hinge, Oven Door (Right)
22	Hinge, Oven Door (Left)
23	Spring, Oven Door (Lt/Rt)
24	Side Panel (Lt/Rt) (White)
24	Side Panel (Lt/Rt) (Almond)
24	Side Panel (Lt/Rt) (Black)
25	Screw No.8×5/8
26	Rear Slide Block (Lt/Rt)
27	Screw, No.8-32 x 3/8
28	Support, (Lt/Rt), Storage Drawer
29	Front Slide Block, Lt/Rt
30	Screw, No.10-32 x 17/32
31	Panel, Storage (Almond)
31	Panel, Storage (White)
31	Panel, Storage (Black)
32	Handle
33	Screw
34	Bake Element (208 Volt (Opt))
34	Element, Bake (240 Volt)
35	Drawer, Storage
36	Oven Cavity
37	Vent Tube
38	Frame, Front
39	RANGE ONLY 40W 120V APPL BULB
40	W10856866 Whirlpool Light Socket
41	Washer
44	Insulation
45	Rack, Oven
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	Support, Element
48	WP4334925 Whirlpool Broil Element
49	Gasket, Lens
50	Lens, Oven Light
51	Retainer, Lens
52	Wire Shield
53	WP308685 Whirlpool Microwave Screw
54	WPL 4342976
55	Sensor
56	Screw
57	Washer
58	Strike
59	Screw No.6-32×7/8
60	WPL 4342952
