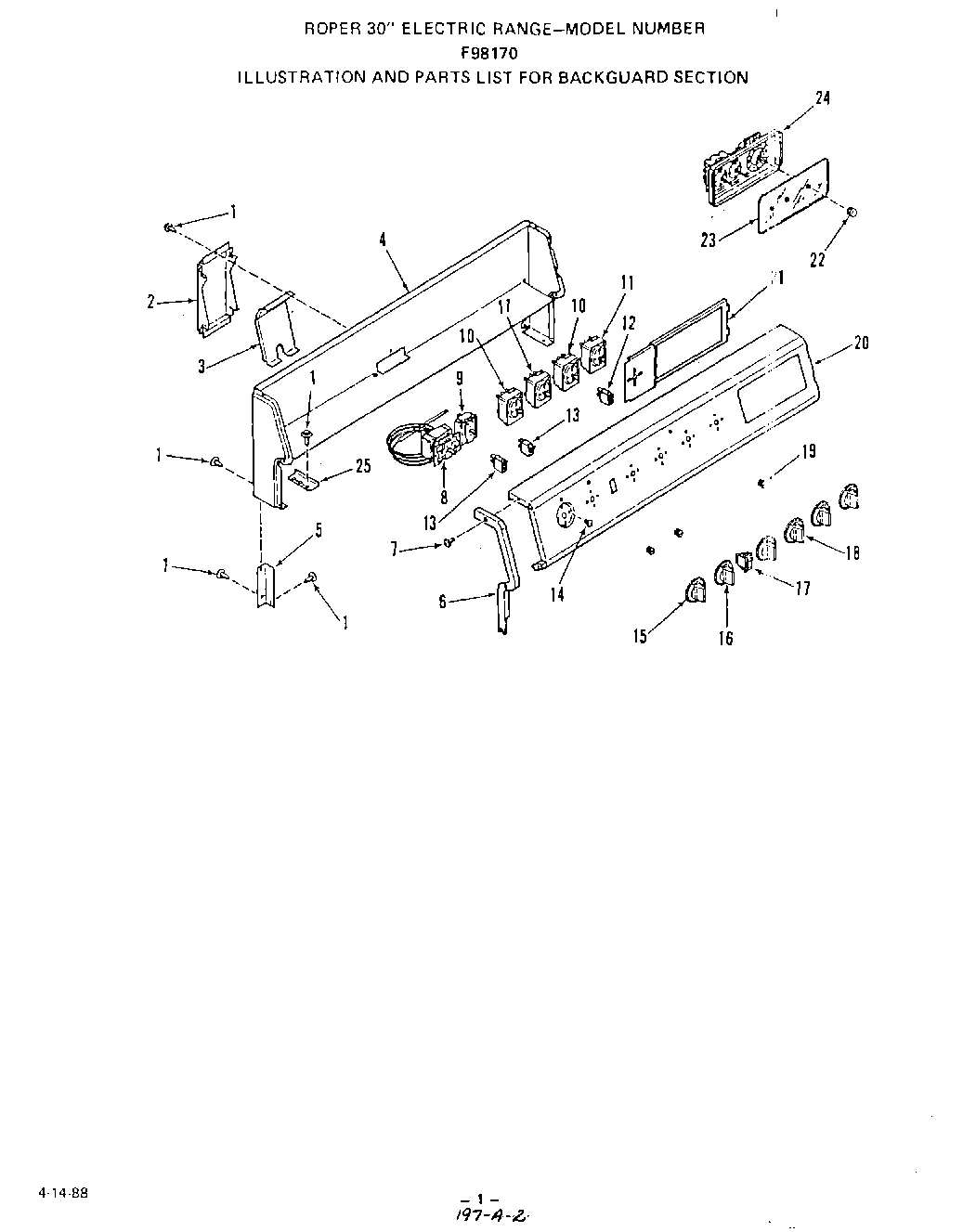

F9817W0 02 – BACKGUARD , LIT/OPTIONAL

F9817W0 02 – BACKGUARD , LIT/OPTIONAL

Written by

in

F9817W0 02 – BACKGUARD , LIT/OPTIONAL

Products

PositionProduct
1Screw 10-16×7/16“
2Wire Raceway
3Raceway Cover
4Backguard Body
5Left
5Right
6End Cap (Left)
6End Cap (Right)
7Screw
8Thermostat
9Selector Switch
10Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
11Infinite Switch (Rt. Front)
12Light-Indicator
13Light-Indicator (Surface)
14WPL 78565
15Thermostat
16Selector Knob
17Switch-Oven Light
18Infinite Knob
19Lens-Indicator Light
20Control Panel
21Clock Bracket
22Clock Knob
23Clock Glass
24Clock (60 Cycle)
24Clock (50 Cycle)
25Body Side Cleat
