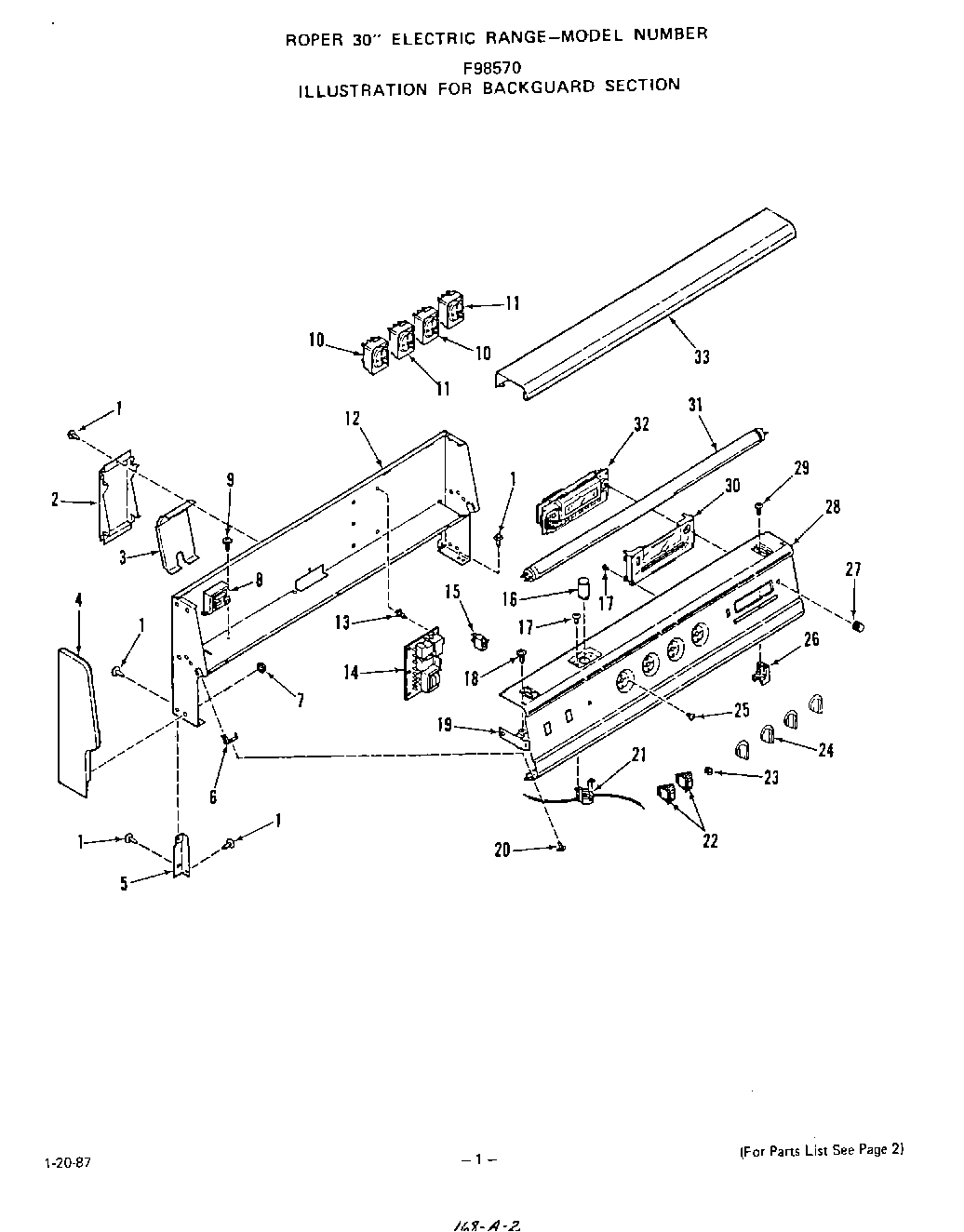

F9857^0 02 – BACKGUARD

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Raceway
3	Raceway Cover
4	End Cap
4	Left
4	Right
5	Backguard Support
5	Left
5	Right
6	Backguard Clip
7	Pal Nut
8	Ballast
9	Screw 6-20×3/8“
10	Infinite Switch (Rt. Front or Lt. Rear)
11	Infinite Switch (Lt. Front or Rt. Rear)
12	Backguard Body
13	Spacer
14	Circuit Board w/Relay
15	Light-Indicator
16	Lamp Starter
17	Screw 6-32×5/16“
18	Screw 10ABx1/2“
19	Backguard Bracket
20	Screw 10-32×1/2“
21	Starter Base
22	Switch-Oven Light
23	Lens-Indicator Light
24	Infinite Knob
25	WPL 78565
26	Lamp Holder
27	Clock/Oven Control Knob
28	Control Panel
29	Screw 6-32×3/8“
30	Clock Lens Asm
31	Fluorescent Lamp
32	Clock/Oven Control
33	Canopy Panel
