F9857^0 03 – MAIN TOP

F9857^0 03 – MAIN TOP

Written by

in

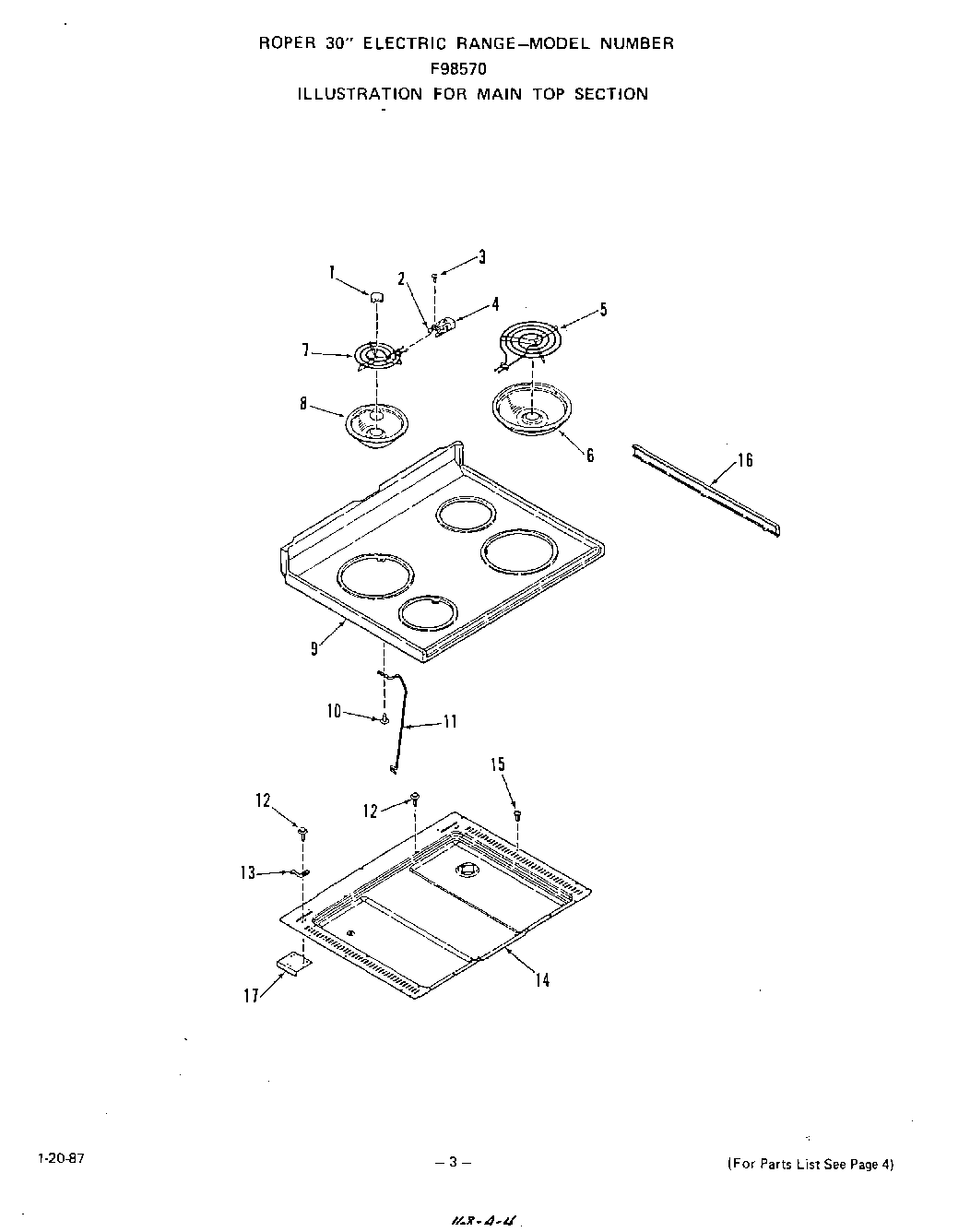

F9857^0 03 – MAIN TOP

Products

PositionProduct
1Medallion (2 Req) All 2101 Models
2Bracket-Term. Block (2 Req) All 2101 Mod.
3Screw 7-32×5/16“(2 Req) All 2101 Models
4Term. Block w/Leads-All 2101 Models
58“ Surface Element (1 Req) All 2101 Mod.
68“ Burner Bowl
76“ Surface Element (1 Req) All 2101 Models
8Burner Bowl 8“
9White (With Trims)
9Main Top
9WP694089 Whirlpool Dryer Blower Wheel
9Chrome
10Screw 6-32 x 5/16“
11Support Rod-Main Top (2 Req)
12Screw 10-16×7/16“
13Left
13Right
13Hinge-Main Top
14Burner Box Bottom
15Screw 10-32×1/2“
16Left
16Right
16Main Top Trim
17Reinforcement Plate (2 Req)
