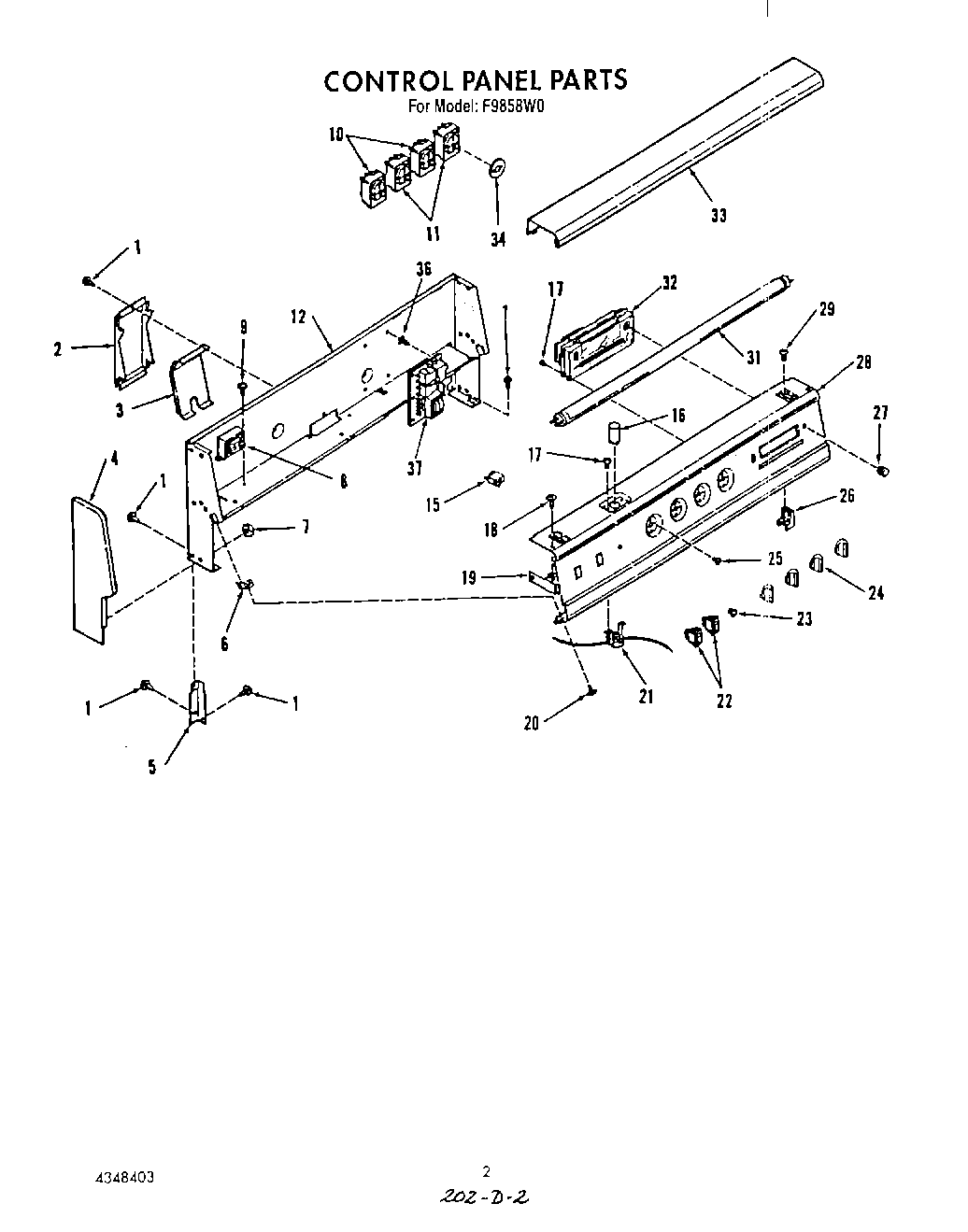

F9858^0 02 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	xLens, Clock/Oven Control
1	SCREW
2	Raceway, Wire
3	Cover, Raceway
4	End Cap (Left)
4	End Cap (Right)
5	Support, Backguard (Right)
5	Support, Backguard (Left)
6	Clip, Backguard
7	WP308499 Whirlpool Nut
8	WPL 4323673
9	Screw 6-20x3/8
10	W10900107 Whirlpool Oven Surface Element Switch
12	Frame, Backguard
15	Indicator Light, (Surface Unit)
16	WPL 4337125
17	Screw
18	WP308685 Whirlpool Microwave Screw
19	Bracket, Backguard
20	Screw
21	Starter Base
22	WP4314961 Whirlpool Lite Switch
23	WP9750343 Whirlpool Light Lens
24	Knob, Infinite
25	Screw No.8-32x1/4`` (6 Req)
26	Socket
27	Knob, Clock
28	Control Panel
29	WP486754 Whirlpool Compactor Screw
31	WP95292 Whirlpool Fluorescent Light Bulb
32	Clock/Oven Control
33	Canopy Panel
34	Spacer, Infinite Control
36	Spacer
37	Owners Manual
37	Installation Guide
37	Relay Circuit Board
37	Repair Parts List Parts Not Shown On Illustration
