F9858W0 06 – OVEN DOOR
Written by
in

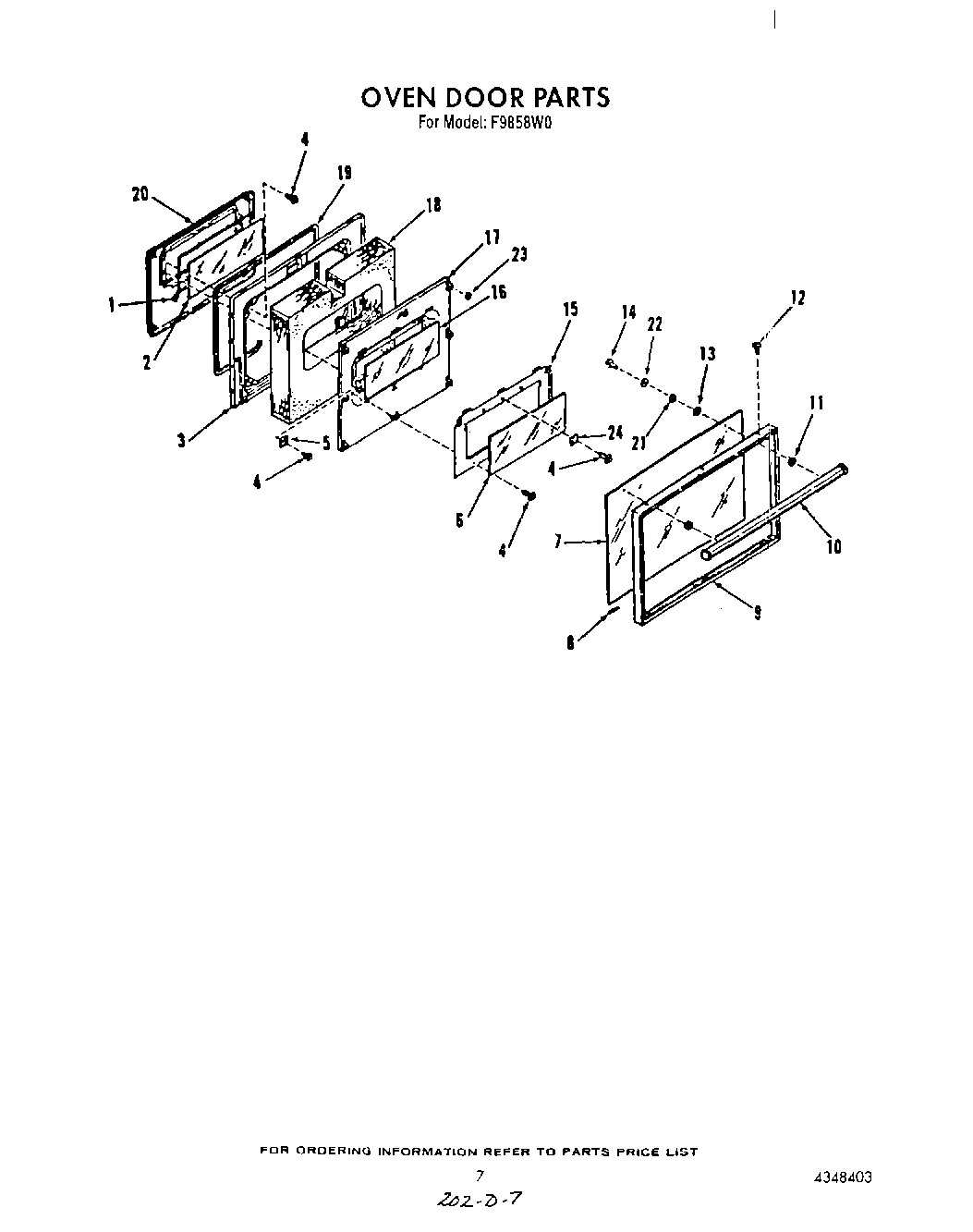

F9858W0 06 – OVEN DOOR
Products
Position
Product
1
Seal, Inner Glass
2
Glass-Inner
3
Lining
4
SCREW
5
Retainer
6
Glass, Intermediate
7
Glass, Outer
8
Cushion
9
Frame, Door
10
Handle, Door
11
Spacer, Dr. Handle
12
Screw
13
Washer, Fiber
14
WP999367 Whirlpool Refrigerator Screw
15
Mounting Plate
16
Glass, Center
17
Retainer, Insulation
18
Insulation
19
Gasket, Door
20
Plug, Door Lining
21
Spacer, Glass Door
22
Washer
23
Washer, Felt
24
Retainer, Glass
←
