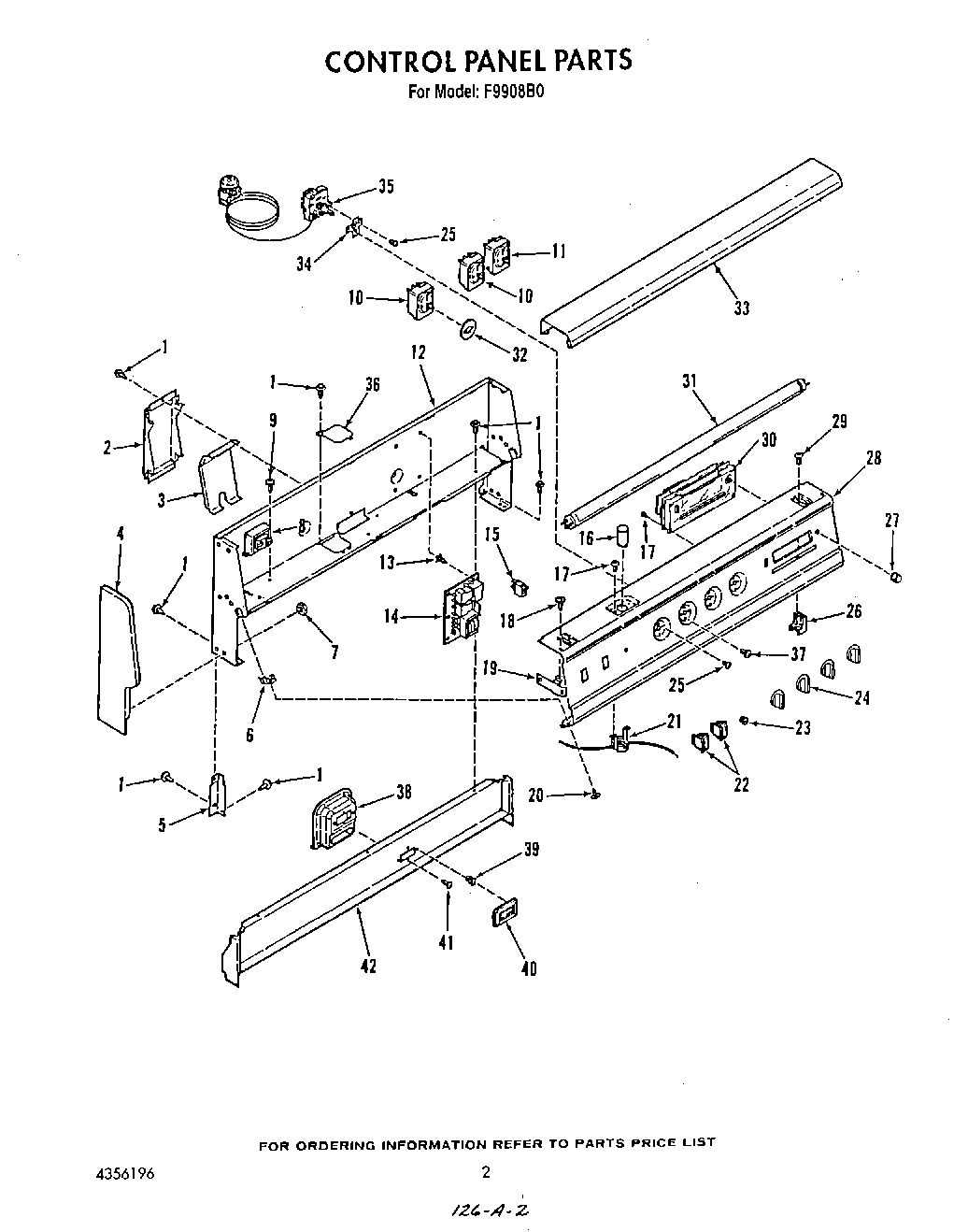

F9908B0 02 – CONTROL PANEL

F9908B0 02 – CONTROL PANEL

Written by

in

F9908B0 02 – CONTROL PANEL

Products

PositionProduct
xLens, Clock/Oven Control
1SCREW
2Raceway, Wire
3Cover, Raceway
4End Cap (Left)
4End Cap (Right)
5Support, Backguard (Right)
5Support, Backguard (Left)
6Clip, Backguard
7WP308499 Whirlpool Nut
8WPL 4323673
9Screw 6-20×3/8
11W10900107 Whirlpool Oven Surface Element Switch
12Backguard
13Spacer
14Relay Circuit Board
15Indicator Light, (Surface Unit)
16WPL 4337125
18WP308685 Whirlpool Microwave Screw
19Bracket, Backguard
20Screw No.10-32×1/2
21Starter Base
22WP4314961 Whirlpool Lite Switch
23WP9750343 Whirlpool Light Lens
24Knob, Infinite
25Screw
26Socket
27Control Knob, Clock/Oven
28Control Panel
29WP486754 Whirlpool Compactor Screw
30Clock/Oven Control
31WP95292 Whirlpool Fluorescent Light Bulb
32Spacer, Infinite Control
33Canopy Panel
34Bracket, Thermostat
35Thermostat, Hob Element
36Cover Plate
37Screw
38Vent Box Assembly
39Clip
40Cover, Vent
41Screw
42Panel, Front
