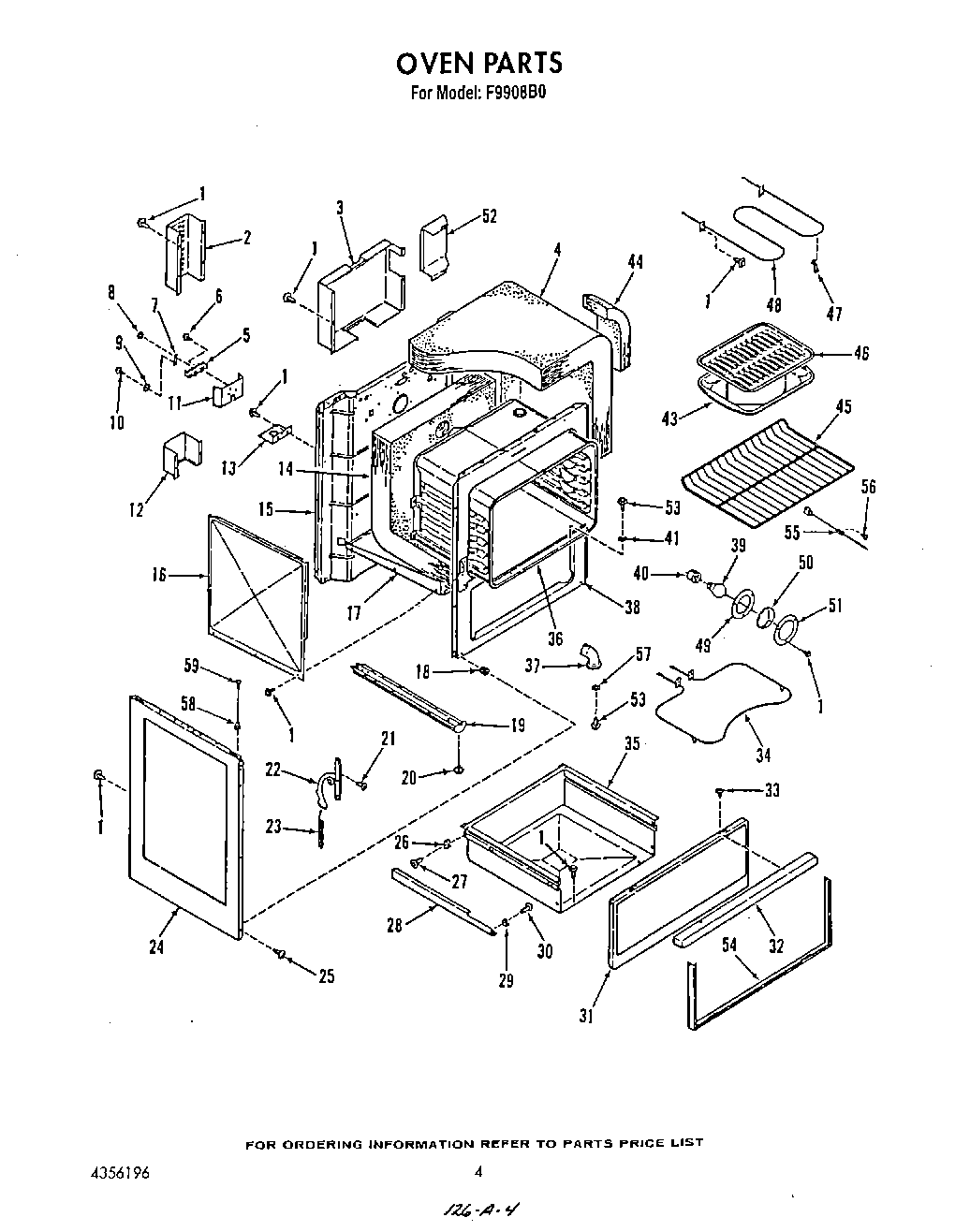

F9908B0 03 – OVEN

F9908B0 03 – OVEN

Written by

in

F9908B0 03 – OVEN

Products

PositionProduct
1SCREW
2Wire Shield, Upper
3Wire Shield
4Insulation
5WP8203546 Whirlpool Terminal Block
6Screw, No.10-32×1
7Strap, Ground
8Nut, Hex 10-32
9Washer
10Screw No.10-32×7/16
11Insulation, Service Cord
12Wire Cover, Lower
13Service Plate
14Insulation, Back And Bottom
15Rear Cover
16Retainer, Insulation (Lt/Rt)
17Retainer, Insulation, Bottom
18Nut-Expansion (6)
19Base, W/ Levelers (2)
20Levelers, Leg (4)
21Screw
22Hinge, Oven Door (Left)
22Hinge, Oven Door (Right)
23Spring, Oven Door (Lt/Rt)
24Side Panel (Lt/Rt) (Black)
25Screw No.8×5/8
26Rear Slide Block (Lt/Rt)
27Screw, No.8-32 x 3/8
28Support, (Lt/Rt), Storage Drawer
29Front Slide Block, Lt/Rt
30Screw, No.10-32 x 17/32
31Panel, Storage (Black)
32Handle
33Screw
34Element, Bake (240 Volt)
34Bake Element (208 Volt (Opt))
35Drawer, Storage
36Oven Cavity
37Vent Tube
38Frame, Front
39RANGE ONLY 40W 120V APPL BULB
40W10856866 Whirlpool Light Socket
41Washer
44Insulation
45Oven Rack (Folding)
45Rack, Oven
464396923 Whirlpool Broil Pan Set Gray Porcelain
47Support, Broil Element
48WP4334925 Whirlpool Broil Element
49Gasket, Lens
50Lens, Oven Light
51Retainer, Lens
52Wire Shield
53WP308685 Whirlpool Microwave Screw
54WPL 4336753
55Sensor
56Screw
57Washer
58Strike
59Screw No.6-32×7/8
