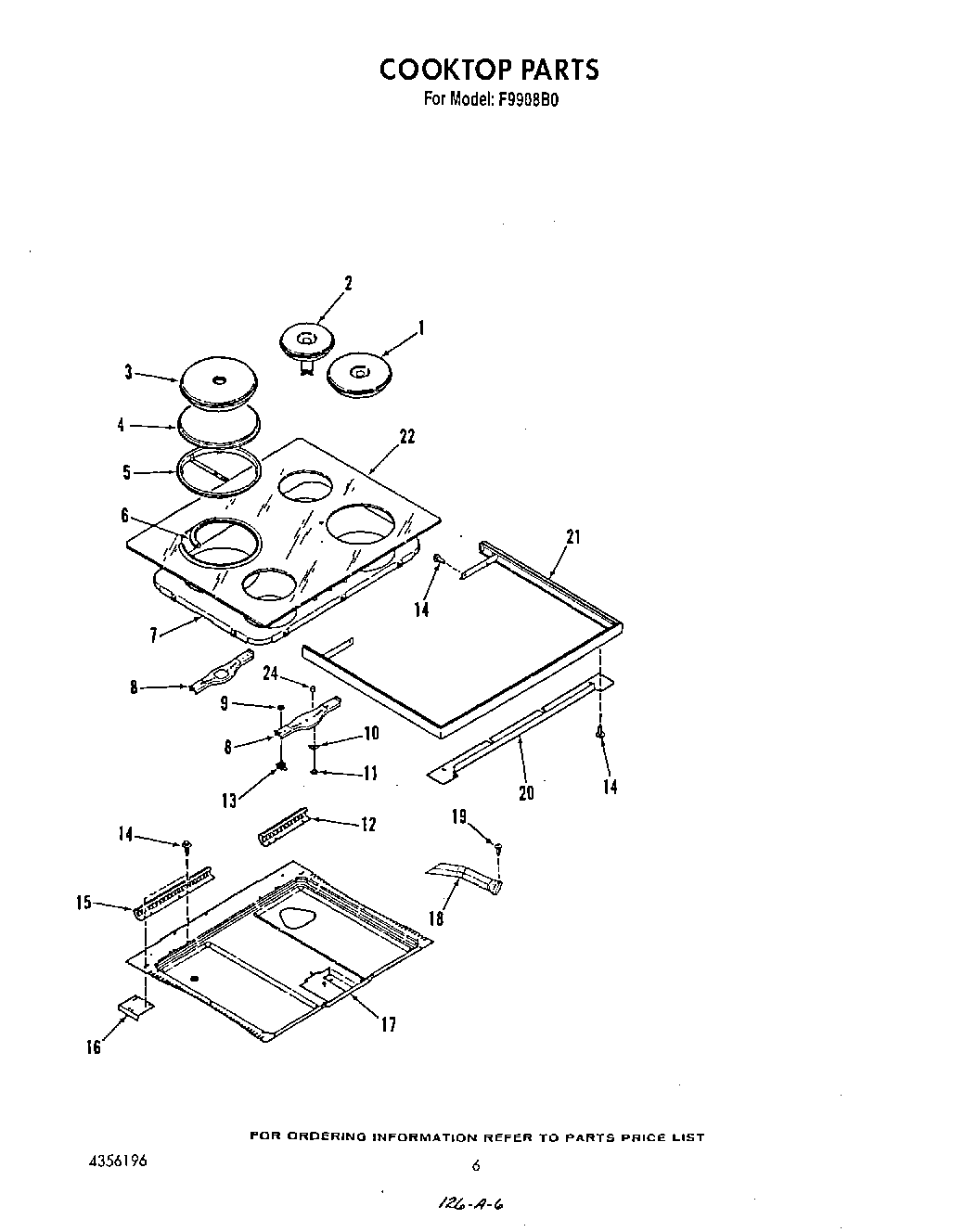

F9908B0 04 – COOKTOP

Products

PositionProduct
1WP3147132 Whirlpool Surface Element
2WP3147131 Whirlpool Surface Element
3Element, Thermal Lt Rear
4Trim Ring (Rt Front)
4Trim Ring (Lt Front-Rt Rear)
4Trim Ring (Lt Rear)
5Gasket Ring (Rt Front)
5Gasket Ring (Lt Front-Rt Rear)
5Gasket Ring (Lt Rear)
6Seal, Element (Lt Front-Rt Rear)
6Seal, Element (Rt Front)
6Seal, Element (Lt Rear)
7Burner Box
8Strap, Element (Lt Front-Rt Rear-Rt Front)
8Strap, Element (Lt Rear)
9Nut
10Washer, Spring
11Nut, Mount. (2)
12Support, Rt Glass
13Switch, Thermal
14SCREW
15Support, Lt Glass
16Support Plate
17Bottom, Burner Box
18Extension, Vent Tube
19WP308685 Whirlpool Microwave Screw
20Plate, Cover
21Frame, Cooktop
22Glass, Cooktop
24Spacer
