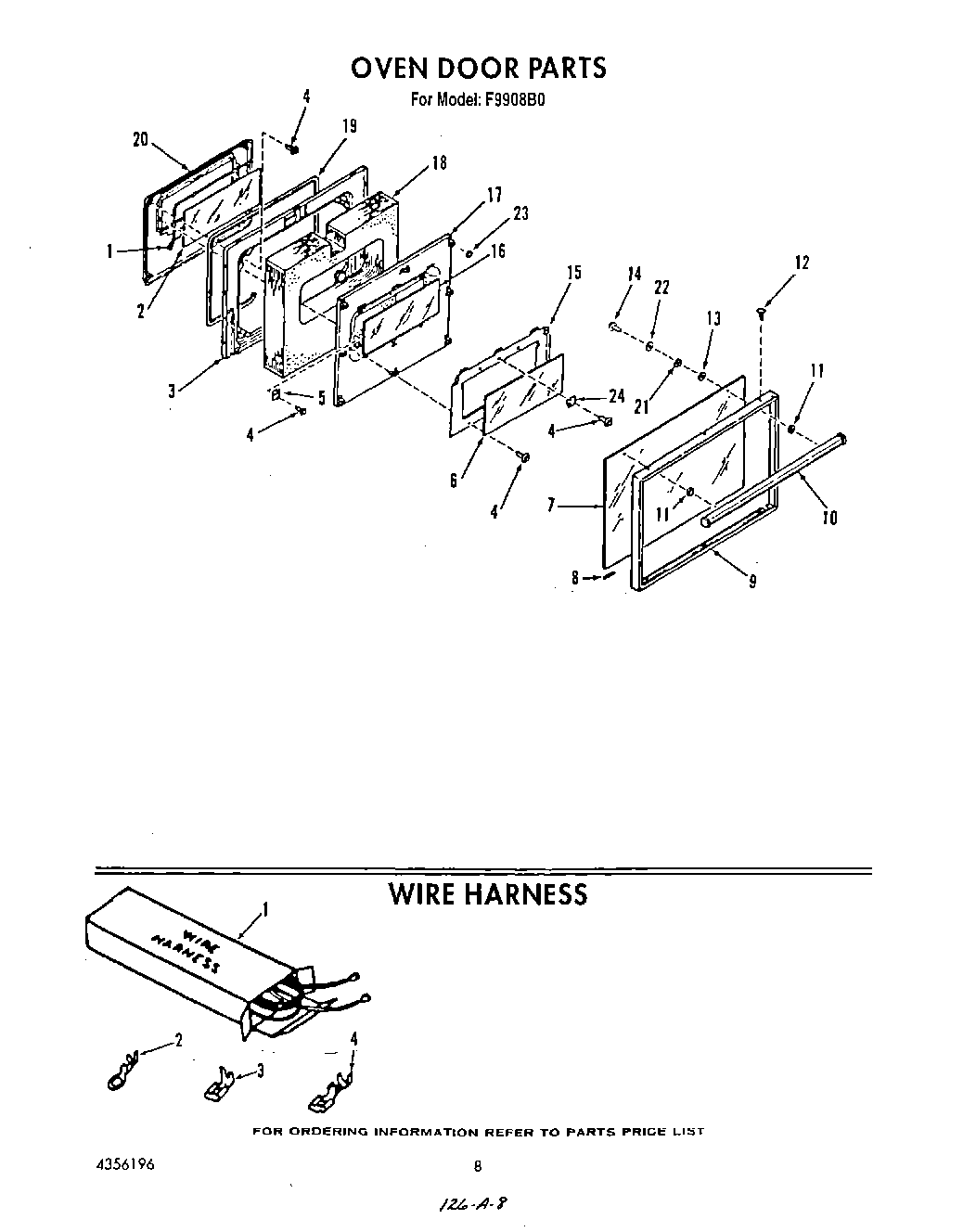

F9908B0 06 – OVEN DOOR , WIRE HARNESS
Written by
in
F9908B0 06 – OVEN DOOR , WIRE HARNESS
Products
Position
Product
1
Wire Harness (Main)
1
Sensor
1
Control, Clock/Oven
1
Wire Harness (Main Top-Right)
1
Wire Harness (Backguard)
1
Seal, Inner Glass
1
Wire Harness (Lock Switch)
1
Wire Harness (Main Top-Left)
2
Glass-Inner
2
Eyelet Terminal
3
Lining
3
Wire Harness (Flag Terminal Faston Terminal)
4
Wire Harness (3/16“)
4
SCREW
4
WP285432 Whirlpool Terminal
5
Retainer
6
Glass, Intermediate
7
Glass, Outer
8
Cushion
9
Frame, Door
10
Handle, Door
11
Spacer, Dr. Handle
12
Screw
13
Washer, Fiber
14
WP999367 Whirlpool Refrigerator Screw
15
Mounting Plate
16
Glass, Center
17
Retainer, Insulation
18
Insulation
19
Gasket, Door
20
Plug, Door Lining
21
Spacer, Glass Door
22
Washer
23
Washer, Felt
24
Retainer, Glass
←
