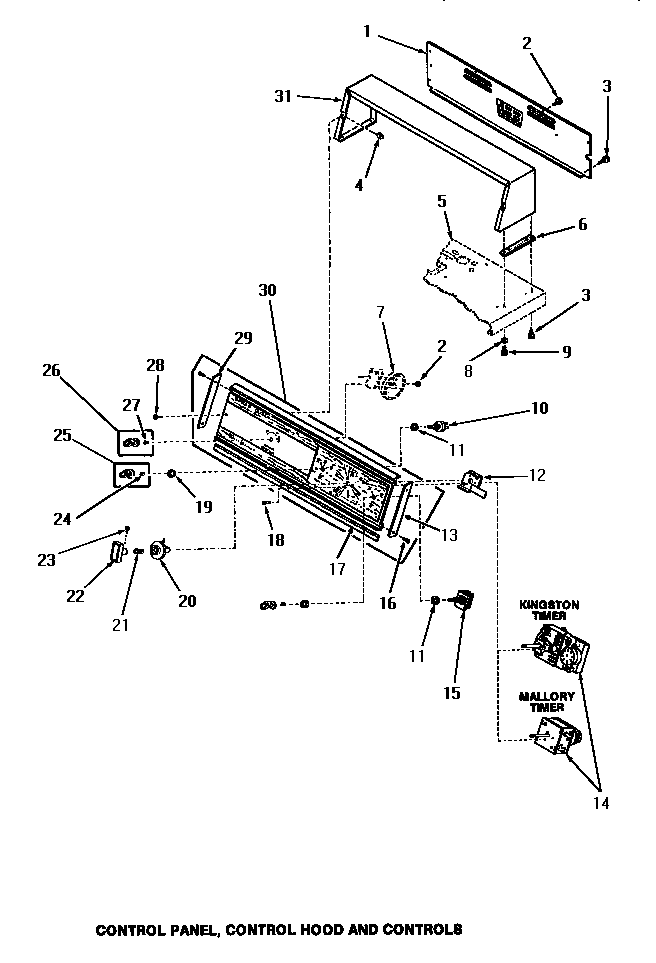

FA0390 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

FA0390 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Written by

in

FA0390 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

Position	Product
1	MAY 22890GR
2	WP3177991 Whirlpool Screw
3	MAY 25724
4	MAY 54038
6	MAY 23028
7	SEE NOTE GROUND WIRE, GREEN
8	MAY 20493
9	MAY 52150
10	MAY 21300
11	MAY 91176
12	MAY 26952
13	MAY 25073
14	MAY 26410
15	MAY 21302
16	MAY 52864
17	MAY 25071
18	MAY 20272
19	MAY 24205
20	MAY 26326
21	MAY 26319
22	MAY 26321
23	MAY 26318
24	MAY 22244
25	MAY 22245
27	MAY 23392
28	MAY 25232
29	MAY 25072
30	MAY 26732
31	MAY 22881A
31	MAY 22881H
31	MAY 22881L
31	MAY 22881W
