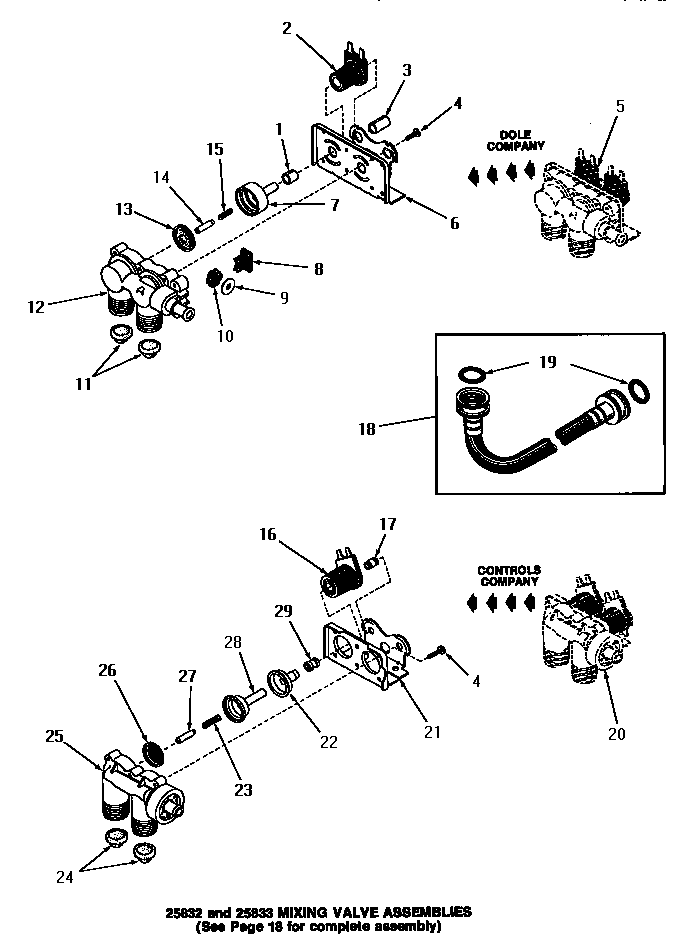

FA2950 01 – 25832 & 25833 MIXING VALVE ASSEMBLIES

FA2950 01 – 25832 & 25833 MIXING VALVE ASSEMBLIES

Written by

in

FA2950 01 – 25832 & 25833 MIXING VALVE ASSEMBLIES

Products

Position	Product
1	MAY 24129
2	MAY 24126
3	MAY 24128
4	MAY 25817C
6	MAY Y24127
7	MAY 24130
8	MAY Y24135
9	MAY 23224G
10	MAY 23224C
12	MAY 24125
13	MAY 24134
14	MAY 24132
15	MAY 24131
16	MAY 24596A
17	MAY 25817M
18	MAY 20241
19	MAY 20290
20	SEE NOTE GROUND WIRE, GREEN
21	MAY 25817B
22	MAY 25817E
23	MAY 25817G
24	MAY 24122
25	MAY 24123
26	MAY 25817K
27	MAY 25817H
28	MAY 25817F
29	MAY 25817D
