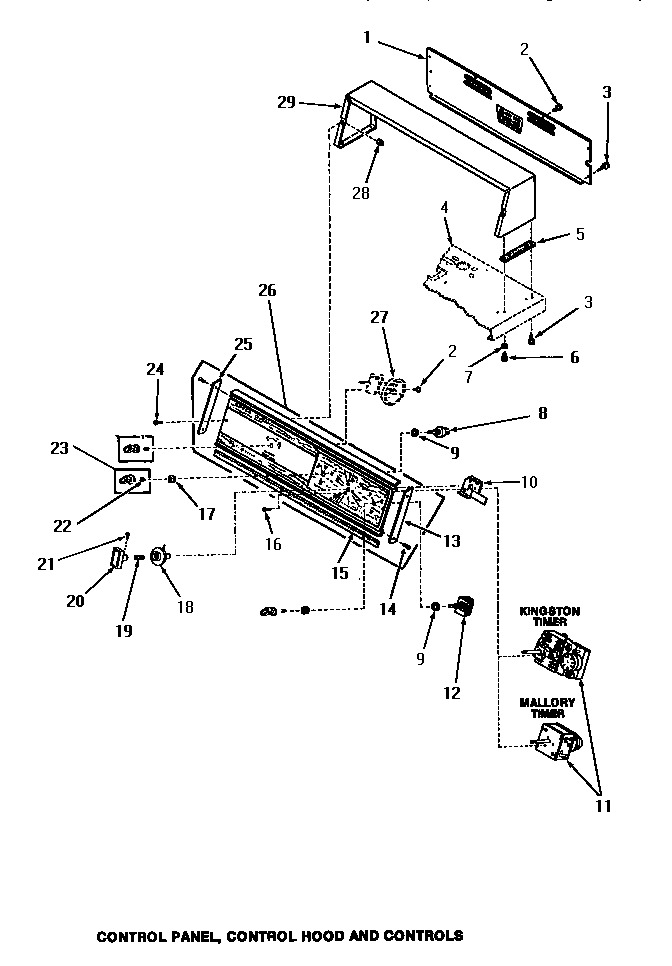

FA2961 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

FA2961 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Written by

in

FA2961 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

Position	Product
1	MAY 22890GR
2	WP3177991 Whirlpool Screw
3	MAY 25724
5	MAY 23028
6	MAY 51250
7	MAY 20493
8	MAY 21300
9	MAY 91176
10	MAY 26952
11	MAY 26918
12	MAY 21302
13	MAY 25073
14	MAY 52864
15	MAY 25071
16	MAY 20272
17	MAY 24205
18	MAY 26326
19	MAY 26319
20	MAY 26321
21	MAY 26318
22	MAY 23392
23	MAY 24291
24	MAY 25232
25	MAY 25072
26	MAY 27282
27	SEE NOTE GROUND WIRE, GREEN
28	MAY 54038
29	MAY 22881W
29	MAY 22881H
29	MAY 22881L
29	MAY 22881A
