FA3820 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

FA3820 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Written by

in

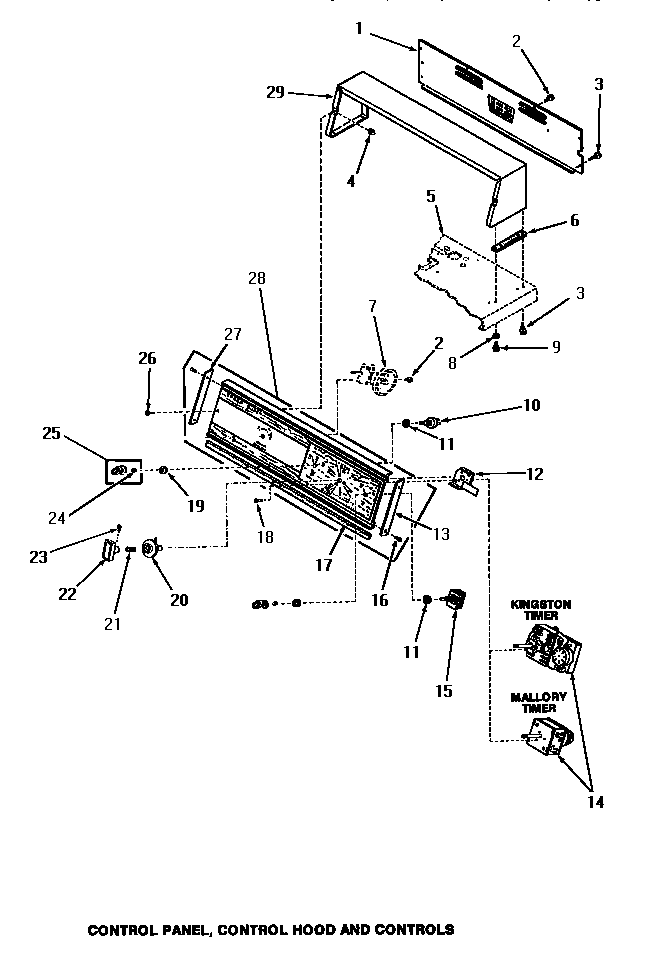

FA3820 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

Position	Product
1	MAY 22890GR
2	WP3177991 Whirlpool Screw
3	MAY 25724
4	MAY 54038
6	MAY 23028
7	SEE NOTE GROUND WIRE, GREEN
8	MAY 20493
9	MAY 52150
10	MAY 21300
11	MAY 91176
12	MAY 26952
13	MAY 25073
14	MAY 26324
15	MAY 21302
16	MAY 52864
17	MAY 25071
18	MAY 20272
19	MAY 24205
20	MAY 26326
21	MAY 26319
22	MAY 26321
23	MAY 26318
24	MAY 23392
25	MAY 24291
26	MAY 25232
27	MAY 25072
28	MAY 26661
29	MAY 22881H
29	MAY 22881A
29	MAY 22881W
29	MAY 22881L
