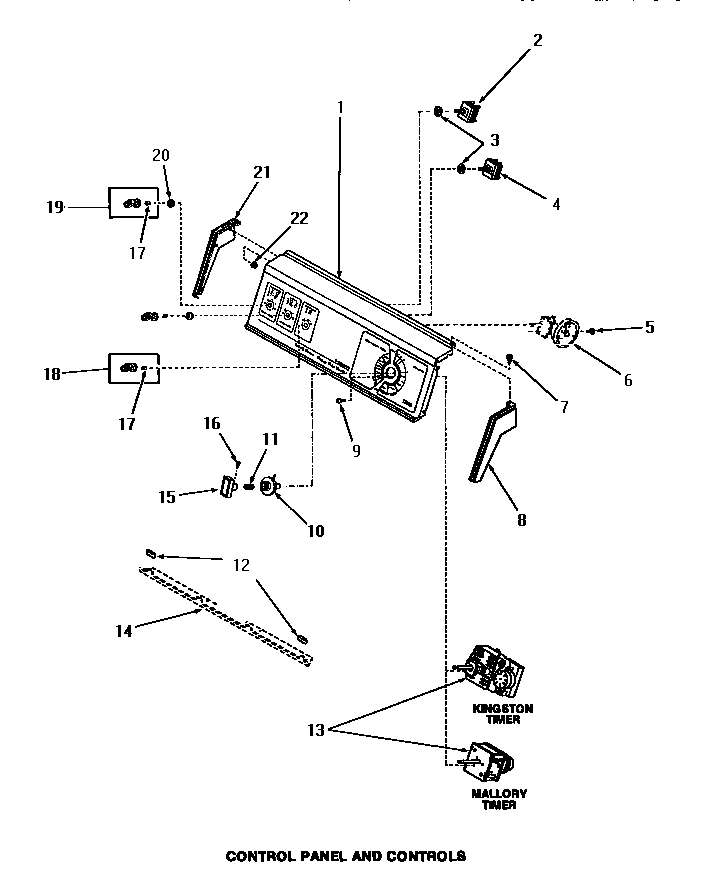

FA4300 10 – CONTROL PANEL & CONTROLS

FA4300 10 – CONTROL PANEL & CONTROLS

Written by

in

FA4300 10 – CONTROL PANEL & CONTROLS

Products

PositionProduct
1MAY 27374
2MAY 21300
3MAY 91176
4MAY 21302
5WP90767 Whirlpool Screw
7MAY 25232
8MAY 25123
9MAY 70212
10MAY 26326
11MAY 26319
12MAY 24859
13MAY 26918
14SEE NOTE GROUND WIRE, GREEN
15MAY 27382
16MAY 26318
17MAY 23392
19MAY 27379
20MAY 24205
21MAY 25124
22MAY 25126
